Nitek FTS344000R00 User Manual
Nitek, Installation manual, 4 camera rack card transmitter
Installation Manual
FTS344000R00 Quad Transmitter
4 Camera Rack Card Transmitter
Note: This installation should be made by a qualified
service person and conform with local codes.
Reduce risk of fire or electrical shock do
not expose this product to rain or moisture.
Specifications
Video Connection
Connector
75 ohm BNC Socket
Input Impedance
75 ohm terminated
Input Level
1 volt p-p nominal
Frequency Response
10Hz to 5.75MHz
Optical Connection
Connector
SC
Style
Path Loss
20 dB
Wavelength
1310
/
1550nm
Dimensions
Width
1 Card slot
Power Connection
Provided from FSR1000 Card Rack
NITEK
®
5410 Newport Drive, Suite 24
Rolling Meadows, IL 60008
PHONE (847) 259-8900
FAX (847) 259-1300
WWW.NITEK.NET

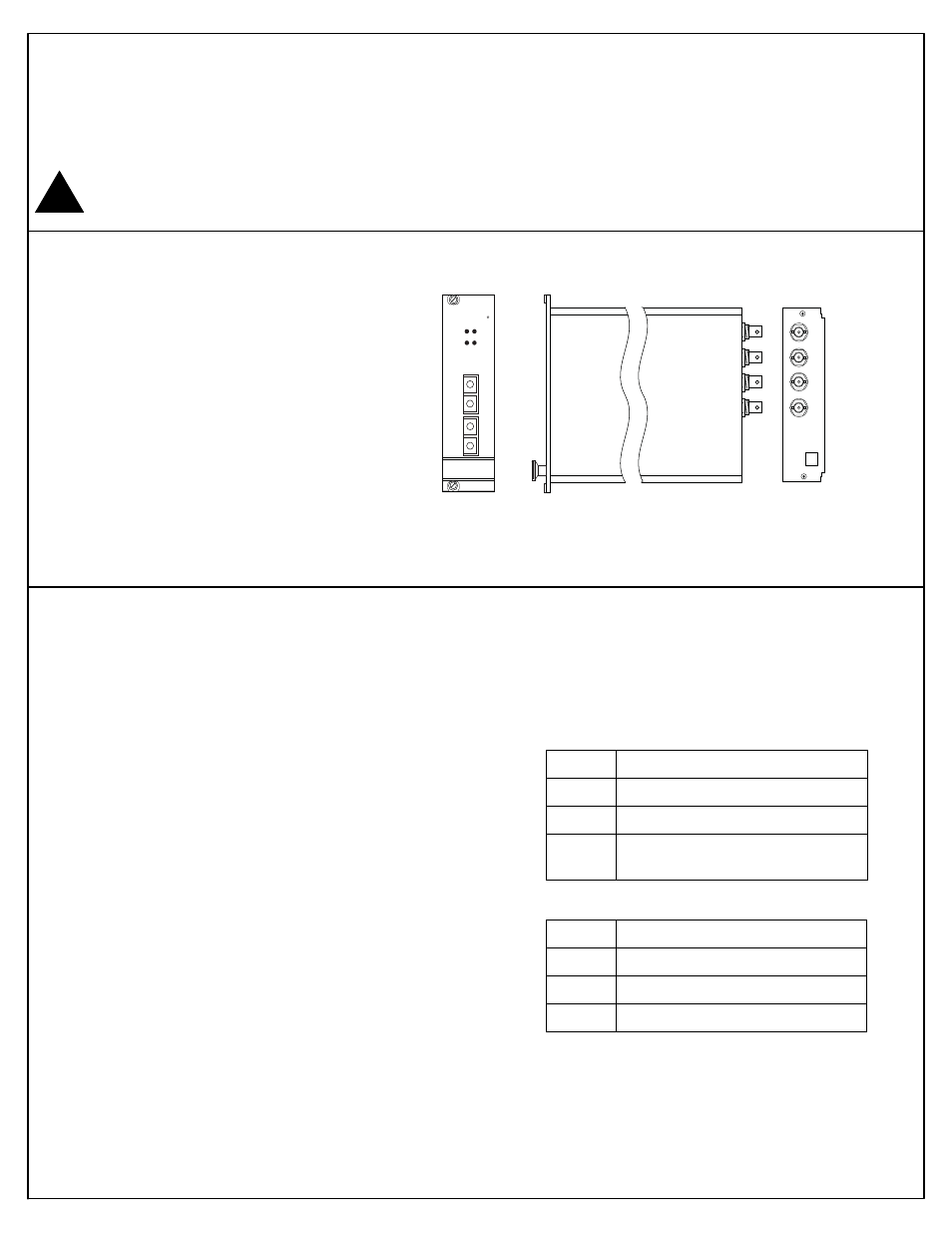

Installation Instructions
- See diagrams on back of page
- The fiber transmitter is designed to be mounted in the FSR1000 Fiber Card Rack.
- Always allow for bend radius of optical and electrical cables when installed.
680600113 Rev 02102009
Service Information
There are no user serviceable parts inside the unit. In the event that service is required to this unit please
contact NITEK Technical Support at 800-528-4343.
CH
1
CH
2
CH
3
CH
4
POWER
VIDEO / OPTO
OPTO IN / OUT
CH1
CH2
CH3
CH4
NITEK
R
CH1
CH2
CH3
CH4
!
Color Description
Green System
Normal
Yellow (RX) Link working, No video at TX
Red
(TX) Power on, No video into TX
(RX) Power on, No opto into RX
Power/Video/Opto LED
Color Description
Green
Data is Low / Logic 0
Red
Data is High / Logic 1 (RS422/485)
Off
Data is Tri-state / (High - RS232)
Data LED
