Nitek FTS311000S00 User Manual
Nitek, Installation manual, Single camera transmitter

Installation Manual
FTS311000S00 Mini Transmitter
Single Camera Transmitter
Note: This installation should be made by a qualified
service person and conform with local codes.
Reduce risk of fire or electrical shock do
not expose this product to rain or moisture.
!
Specifications
Video Connection
Connector
75 ohm BNC Socket
Input Impedance
75 ohm terminated
Input Level
1 volt p-p nominal
Frequency Response
10Hz to 5.75MHz
Optical Connection
Connector
SC
Style
Path Loss
20 dB
No Customer adjustments are available within the unit.
Wavelength
1310
/
1550nm
Power Connection
Supply
12 to 24VDC @ 150mA
NITEK
®
5410 Newport Drive, Suite 24
Rolling Meadows, IL 60008
PHONE (847) 259-8900
FAX (847) 259-1300
WWW.NITEK.NET

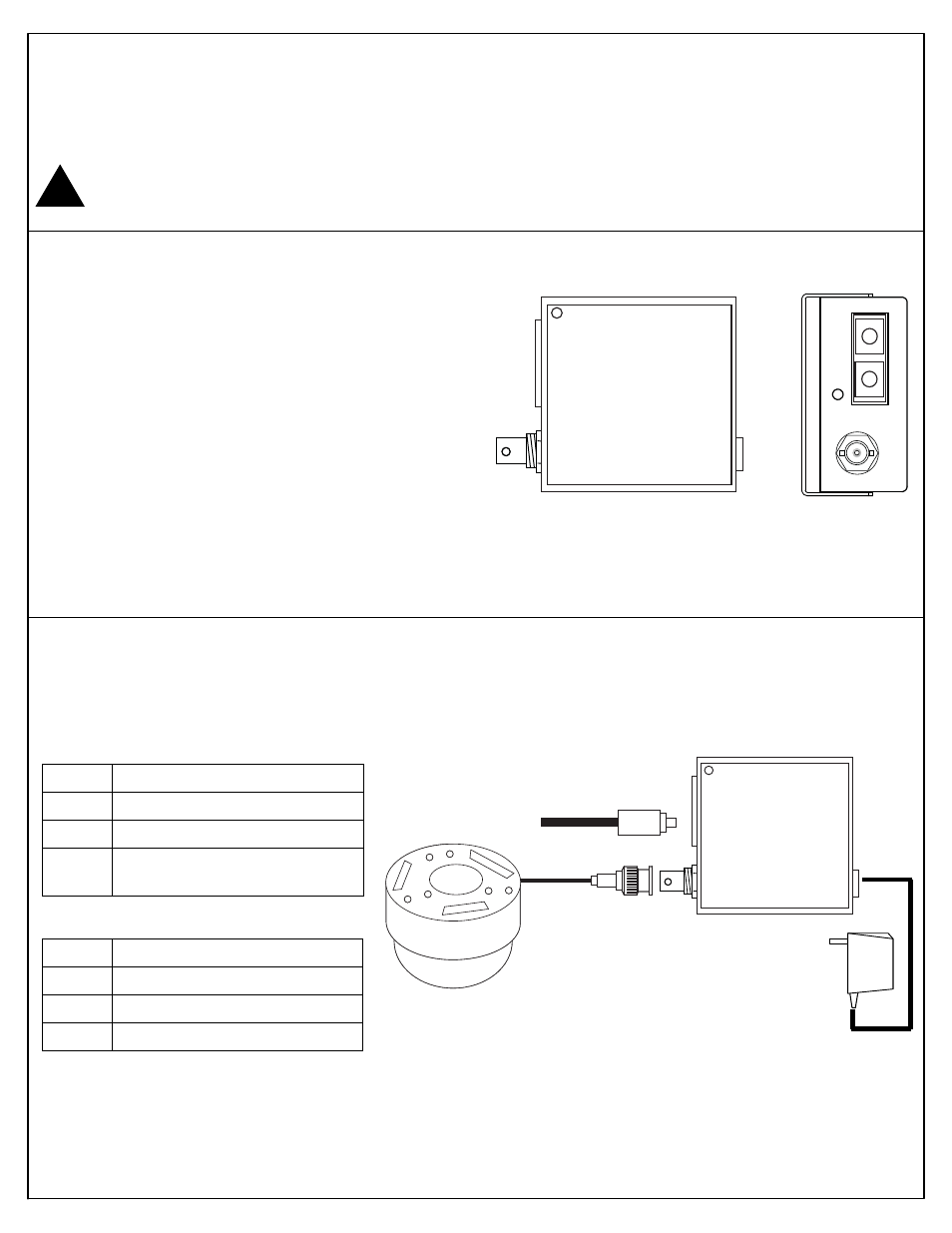

Installation Instructions
- The mini fiber transmitter is designed to be mounted using the included bracket.
- Always allow for bend radius of optical and electrical cables when installed.
- There are no adjustments required when using this product.
680600114 Rev 02052009
Service Information
There are no user serviceable parts inside the unit. In the event that service is required to this unit please
contact NITEK Technical Support at 800-528-4343.
NITEK
OPTO OUT
VIDEO IN
12-24 AC\DC
150mA 50\60 Hz
Class 2 only
POWER
VIDEO / OPTO
NITEK
OPTO OUT
VIDEO IN
12-24 AC\DC
150mA 50\60 Hz
Class 2 only
POWER
VIDEO / OPTO
SC FIBER OUT
Video Source
BNC Coax IN
POWER
SUPPLY
Color Description
Green System
Normal
Yellow (RX) Link working, No video at TX
Red
(TX) Power on, No video into TX
(RX) Power on, No opto into RX
Power/Video/Opto LED
Color Description
Green
Data is Low / Logic 0
Red
Data is High / Logic 1 (RS422/485)
Off
Data is Tri-state / (High - RS232)
Data LED
