Nitek FRS3xx000R00 User Manual
Nitek, Installation manual, 1, 2 and 4 camera rack card

Installation Manual
FRS3xx000R00 Rack Card
1, 2 and 4 Camera Rack Card
Note: This installation should be made by a qualified
service person and conform with local codes.
Reduce risk of fire or electrical shock do
not expose this product to rain or moisture.
!
Specifications
Video Connection
Connector
75 ohm BNC Socket
Input/Output Impedance
75 ohm terminated
Input/Output Level
1 volt p-p nominal
Frequency Response
10Hz to 5.75MHz
Optical Connection
Connector
SC
Style
Path Loss
20 dB
Wavelength
1310
/
1550nm
No Customer adjustments are available within the unit.
Dimensions
Width
1
Card
slot
Power Connection
Provided from FSR1000 Card Rack
Model List
FRS311000R00
1 Ch Receiver
FRS322000R00
2 Ch Receiver
FRS344000R00
4 Ch Receiver
FTS344000R00
4 Ch Transmitter
NITEK
®
5410 Newport Drive, Suite 24
Rolling Meadows, IL 60008
PHONE (847) 259-8900
FAX (847) 259-1300
WWW.NITEK.NET
Installation Instructions
- This fiber card is designed to be mounted in the FSR1000 Fiber Card Rack.
- Always allow for bend radius of optical and electrical cables when installed.
- There are no adjustments required when using this product.
680600120 Rev 02202009
Service Information
There are no user serviceable parts inside the unit. In the event that service is required to this unit please
contact NITEK Technical Support at 800-528-4343.

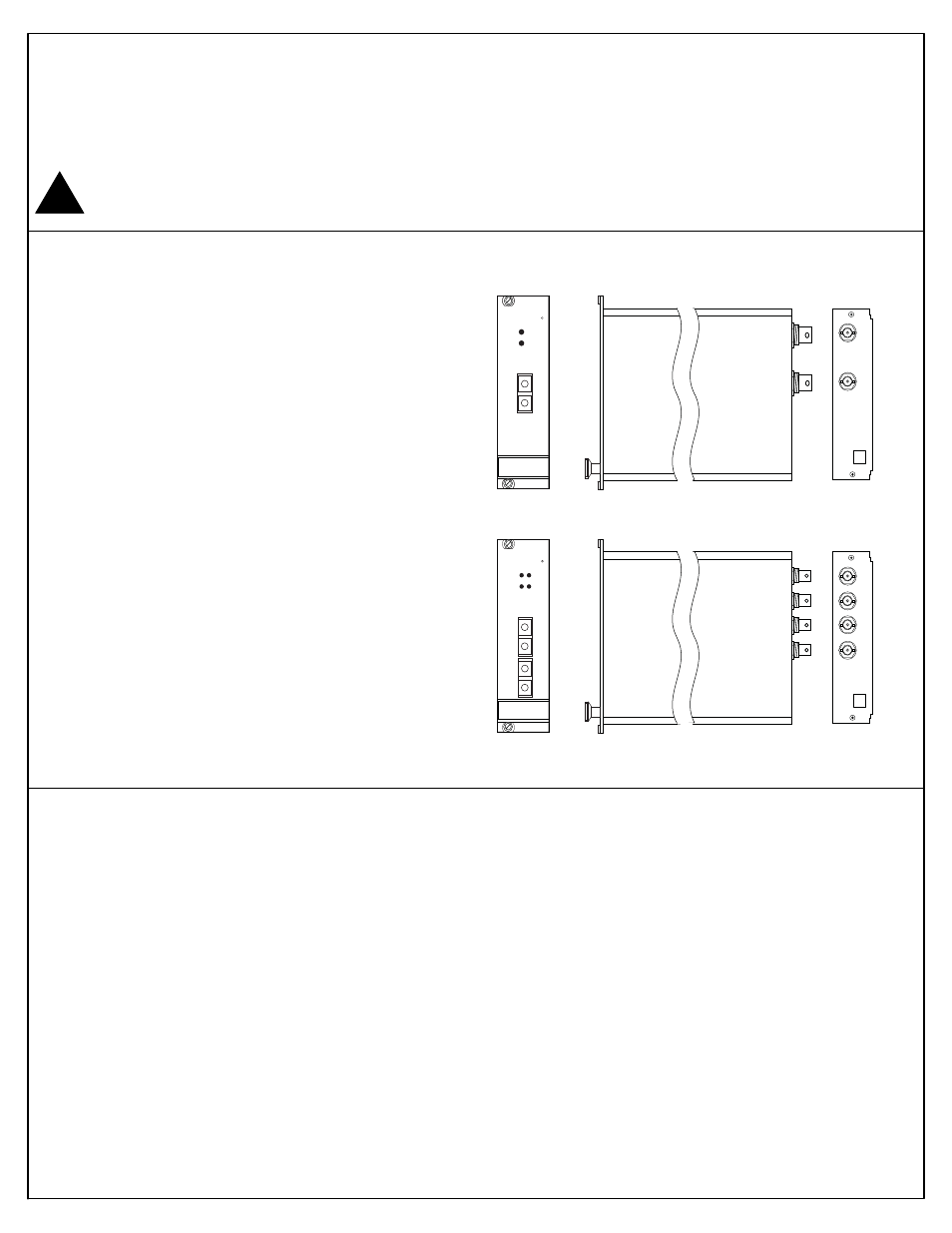

POWER
VIDEO / OPTO
OPTO IN / OUT
CH1
CH2
NITEK
R
CH1
CH2
CH
1
CH
2
CH
1
CH
2
CH
3
CH
4
POWER
VIDEO / OPTO
OPTO IN / OUT
CH1
CH2
CH3
CH4
NITEK
R
CH1
CH2
CH3
CH4
