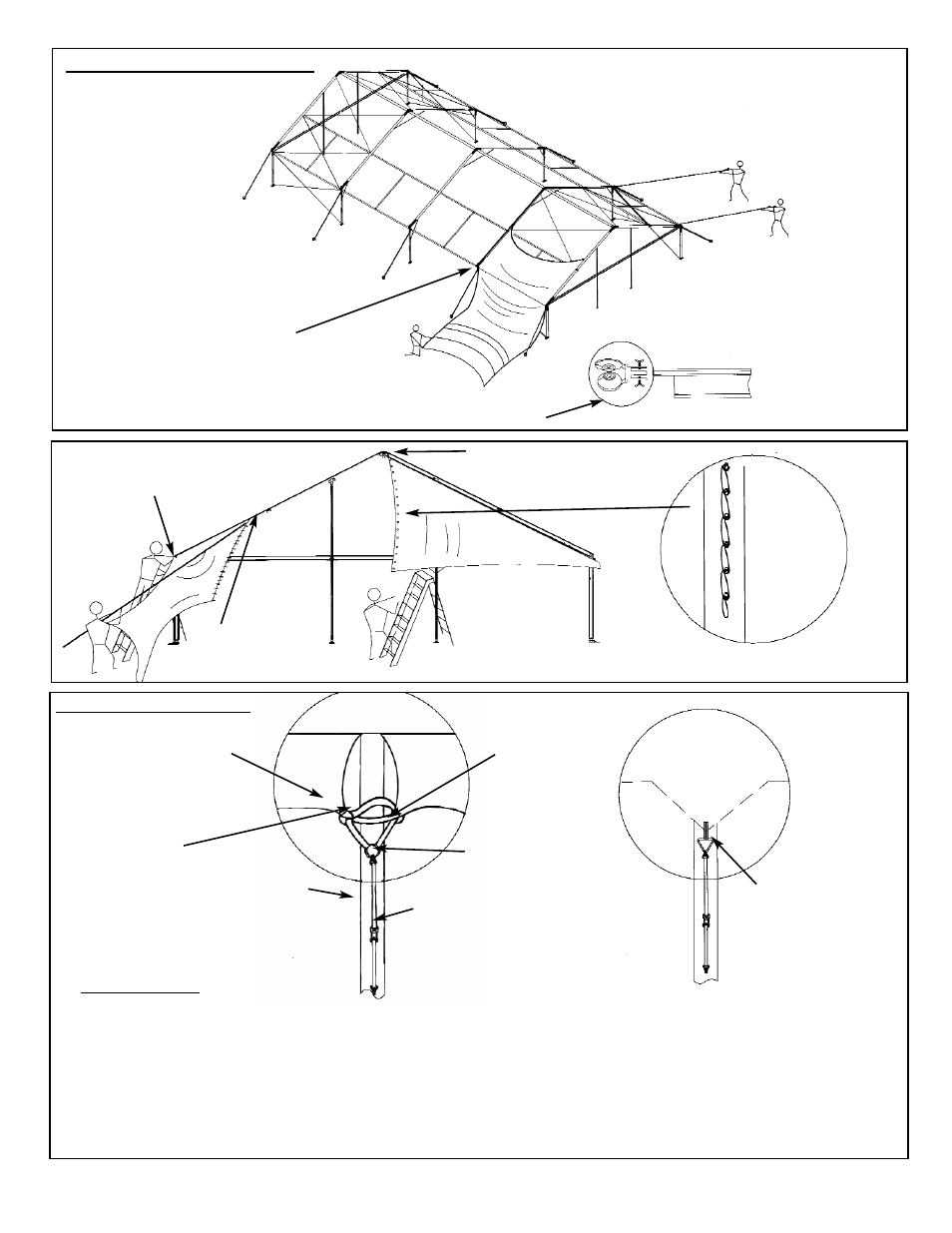

INSTALLING MID PANEL
PULL MID PANEL UP AND OVER THROUGH
CHANNELS IN RAFTER EXTRUSIONS.
WHEELED PANEL
GUIDE
RAFTER
INSERT FINGERS OF WHEELED PANEL GUIDE
INTO THE OPEN END OF THE RAFTER AND
WELDMENT. TIGHTEN THE BUTTERFLY NUT.
REVERSE FOR OPPOSITE SIDE OF BAY.
FABRIC TENSIONING
1. USE WEB/ RATCHETS TO SECURE CATENARY ARCHES TO
UPRIGHTS, STAKE BASEPLATES BEFORE TENSIONING WEBS.
ATTACH WEB/RATCHET
TO TRIANGLE RING AND
TENSION DOWNWARD.
TENSIONING
WEB (RIGHT)
W/ RING
CATENARY
TAILS
TENSIONING RINGS
OVERLAPPED
TOP
TENSIONING
WEB (LEFT)
W/ RING
UPRIGHT
WEB/RATCHET
TENSIONING METHOD:
1. PASS RING OF LEFT TENSIONING WEB THROUGH OPPOSITE
CATENARY RING.
2. PASS RING OF RIGHT TENSIONING WEB THROUGH ITS OWN
CATENARY RING (PASSING OVER THE LEFT WEB).
3. CONTINUE RING OF RIGHT TENSIONING WEB THROUGH
OPPOSITE CATENARY RING.
4. OVERLAP BOTH TENSION RINGS. ATTACH WEB/RATHCET
AND TENSION DOWNARD AGAINST TENSION HOLE IN
UPRIGHT. (CATENARY RINGS SHOULD MOVE CLOSER
TOGETHER AS RATHCET IS TIGHTENED.)
INSTALLING 2-PC GABLED END
USE LONG LIFTING
POLE TO PUSH EACH
HALF TO PEAK.
WHEELED PANEL
GUIDE AT EAVE
SECURE LACE LINE AT TOP &
BOTTOM WITH FASTEX BUCKLES
TIE OFF BOTTOM
LOOP
STANDARD LOOP &
GROMMET LACING
