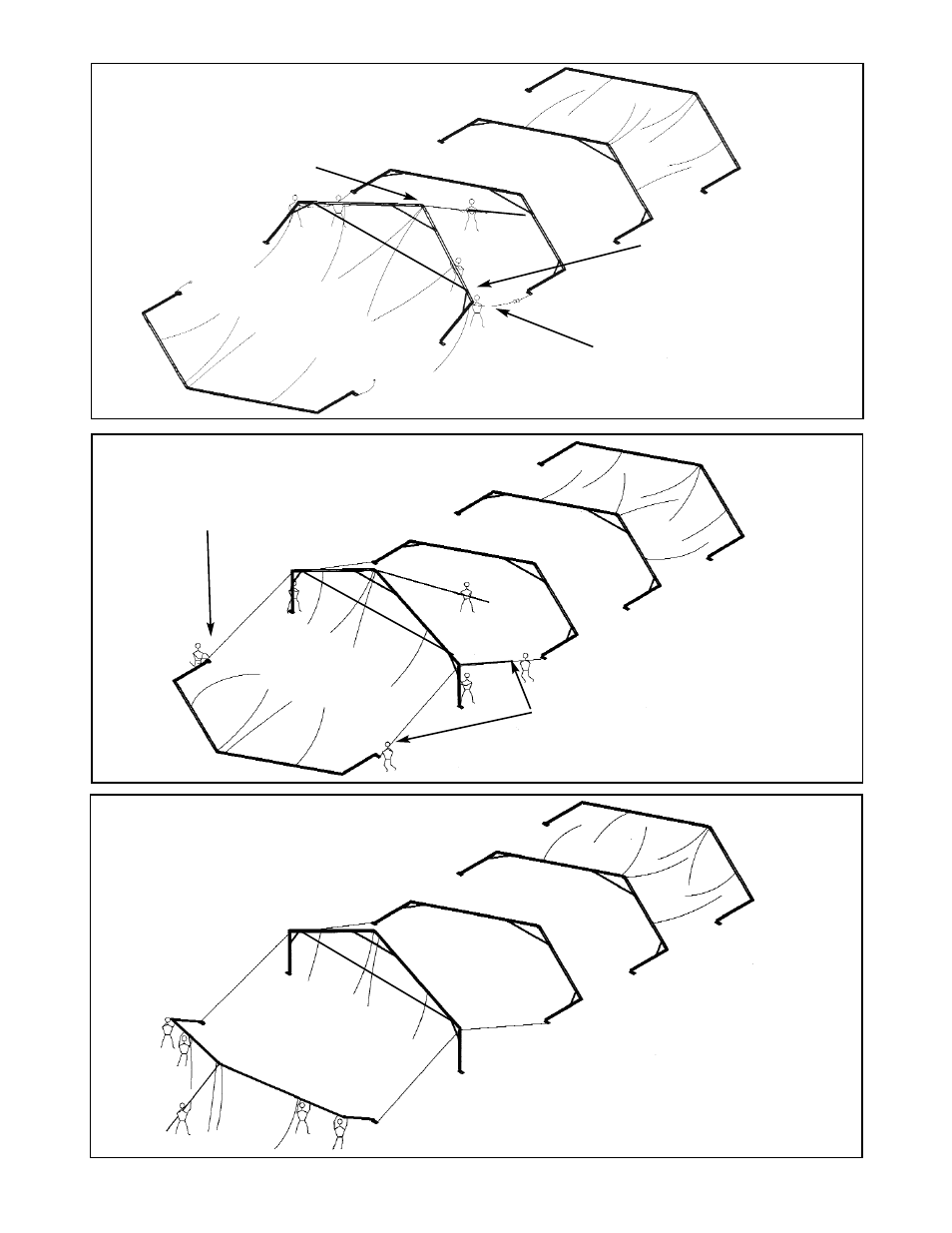

ERECTING 2nd BEAM 1st
SECURING THE 1st BEAM SAFELY
ERECTING THE 2nd BEAM
WORKERS LIFT FIRST AT THE
PEAK, THEN SHUFFLE SIDEWAYS
TOWARD THE UPRIGHTS.
AS THE 2ND BEAM PIVOTS
TOWARD VERTICAL, THE
TRAILING SAFETY WEBS
DRAW TIGHTER.
USING RATCHETS, ADJUST LEADING AND
TRAILING SAFETY WEBS AGAINST EACH
OTHER ON BOTH SIDES OF THE STRUCTURE
TO SECURE AND VERTICALLY ALIGN THE
BEAM
WITH 2nd BEAM SECURED BY SAFETY WEBS, THE
1st BEAM IS ROTATED TOWARD IT. (2) OR (3)
WORKERS SHOULD HOLD THE BEAM AT VERTICAL
UNTIL EAVE BARS (ER20) ARE INSTALLED (SEE
NEXT STEP).
ATTACH PUSH POLE EXTENSION TO
TOP OF THE LONG LIFTING POLE.
HOOK INTO PEAK WELDMENT BRACKET
& TWIST TO SECURE. THIS WORKER
CONTROLS PEAK DURING ERECTION.
ON THE LEADING 2-PC SAFETY WEBS, WORKERS
INSERT LOOSE ENDS OF UPPER SAFETY WEBS INTO
THE RATCHETS OF THE LOWER SAFETY WEBS.
