Dixon Valve 25 TON RAM SEC04 External Swaged Cam and Groove User Manual
Page 5

25 Ton Ram Instruction Manual
Externally Swaged Cam & Groove
customer service
800
•
355
•
1991
4
Section 4

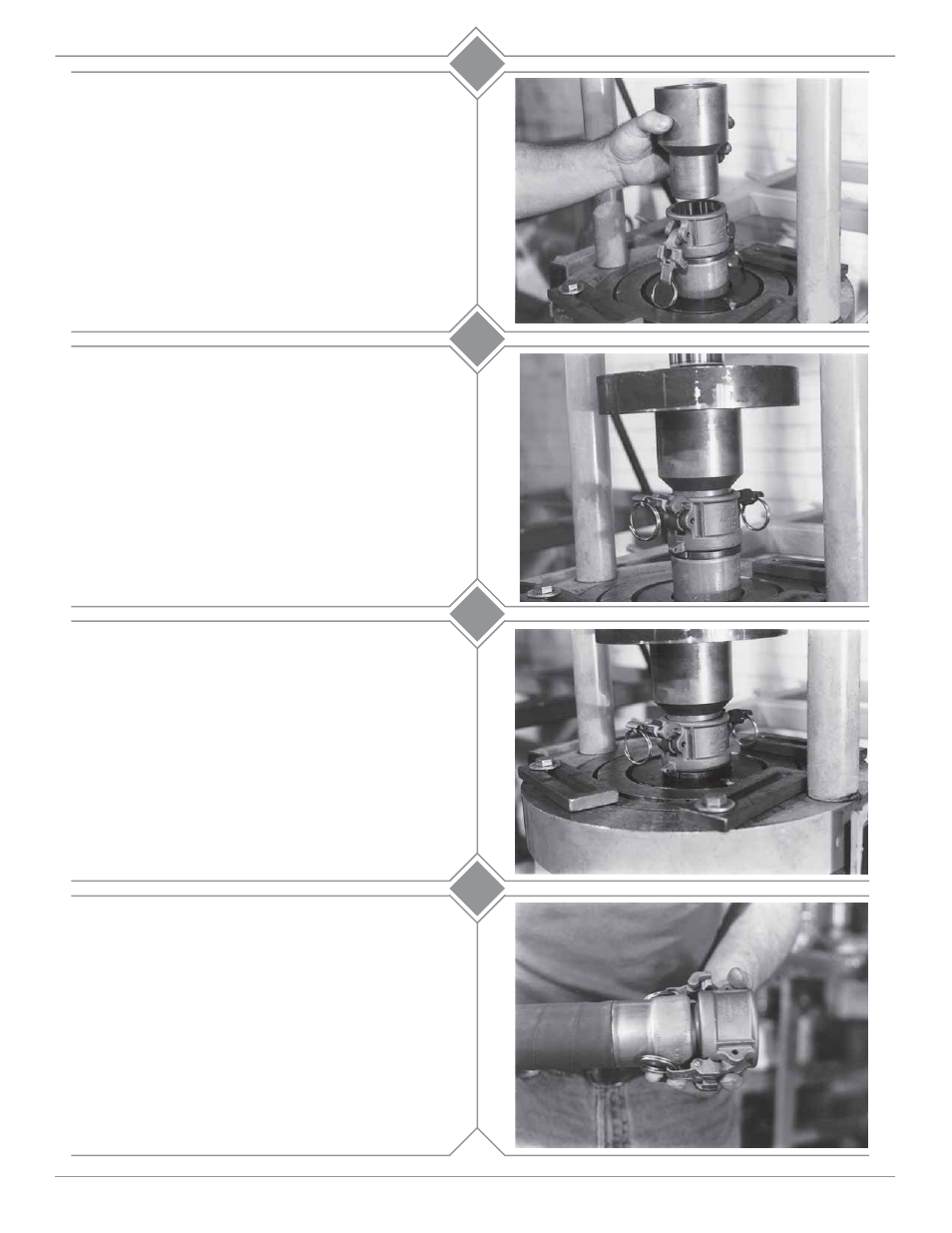

h. Insert the proper pusher into the coupler
(reference the chart at the end of this section
for proper pusher selection).
i.
Bring the assembly down into the opening of
the die.
j.
Jog the ram cylinder down until it meets the
pusher.
Note: Check spacer rings for proper positioning.
k. Hold the “on” button down (or depress the
foot pedal) and continue the swage process
until the spacer rings begin to enter the die.
Release the “on” button (or foot pedal).
Do not let the spacer rings enter the die!
l.
Lift the hose assembly up and remove the
pusher, spacer rings and the die halves from
the die bed.
m. Lower the hose through the die bed and wipe
off the excess lubricant.
n. Re-install the gasket.
6k
6i
6j
6l-n
6h
