Dixon Valve 15 TON RAM Internal Expanded Carbon And Stainless Couplings User Manual
Page 2
2
Dixon Valve & Coupling Co., Call 1-800-355-1991
15 Ton Ram IX 7/99

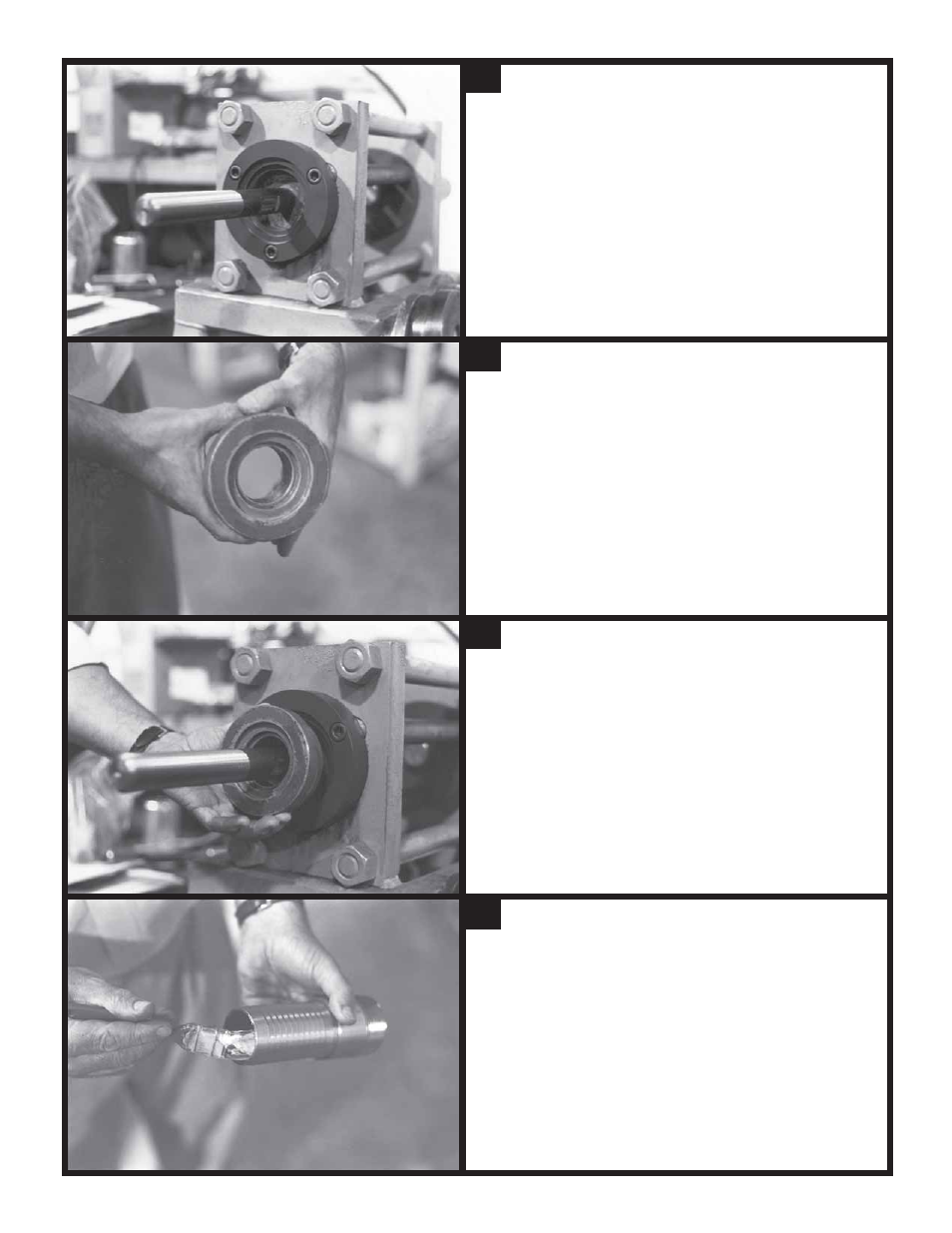

Ensuring that the ram is fully retracted, select
the proper pull rod. For 1” through 1 1/2”
couplings use 15RODSMALL. For 2” through
3” couplings use 15RODLARGE.
Note: 15RODLARGE is shown.
Making sure that the recess (es) are facing outward
towards the operator, slide the adapter plate over
the pull rod until it reaches the base.
Lubricate the I.D. of the stem with Crisco®
(recommended) or a high viscosity oil or heavy
duty grease.
4a
3
2
1a
Select the corresponding adapter plate. The
15 Ton Ram comes with a built-in 3” adapter
made to accept adapters 1” through 2 1/2”.
