DZ-S2 Technical data
DZ-S2_e_0210.fm Page 9
7HFKQLFDO GDWD
'LPHQVLRQV
:HLJKWV
27 kg Wall saw, incl. feed motors
excluding saw motor
5.50 kg Saw motor size 2
%ODGH GULYH
Hydraulic motor 440 - 3640 rpm.
Ratio 1:2
Operating pressure max. 260 bar
0RYHPHQW
Hydraulic motor -
Operating pressure max. 100 bar
Feed force max. 600 kg
Feed Toothed wheel on rail
6ZLYHOOLQJ
Hydraulic motor -
Operating pressure max. 100 bar
Swivelling range 360°
Feed force 300 kg
5DLOV
Length 70 cm
110 cm
140 cm
180 cm
220 cm
Hole spacing 10 cm
&XWWLQJ GHSWKV
Dia. 800 mm no precut 31 cm
Dia. 900 mm no precut 35 cm
Dia. 1000 mm with precut 40 cm
Dia. 1200 mm with precut 50 cm

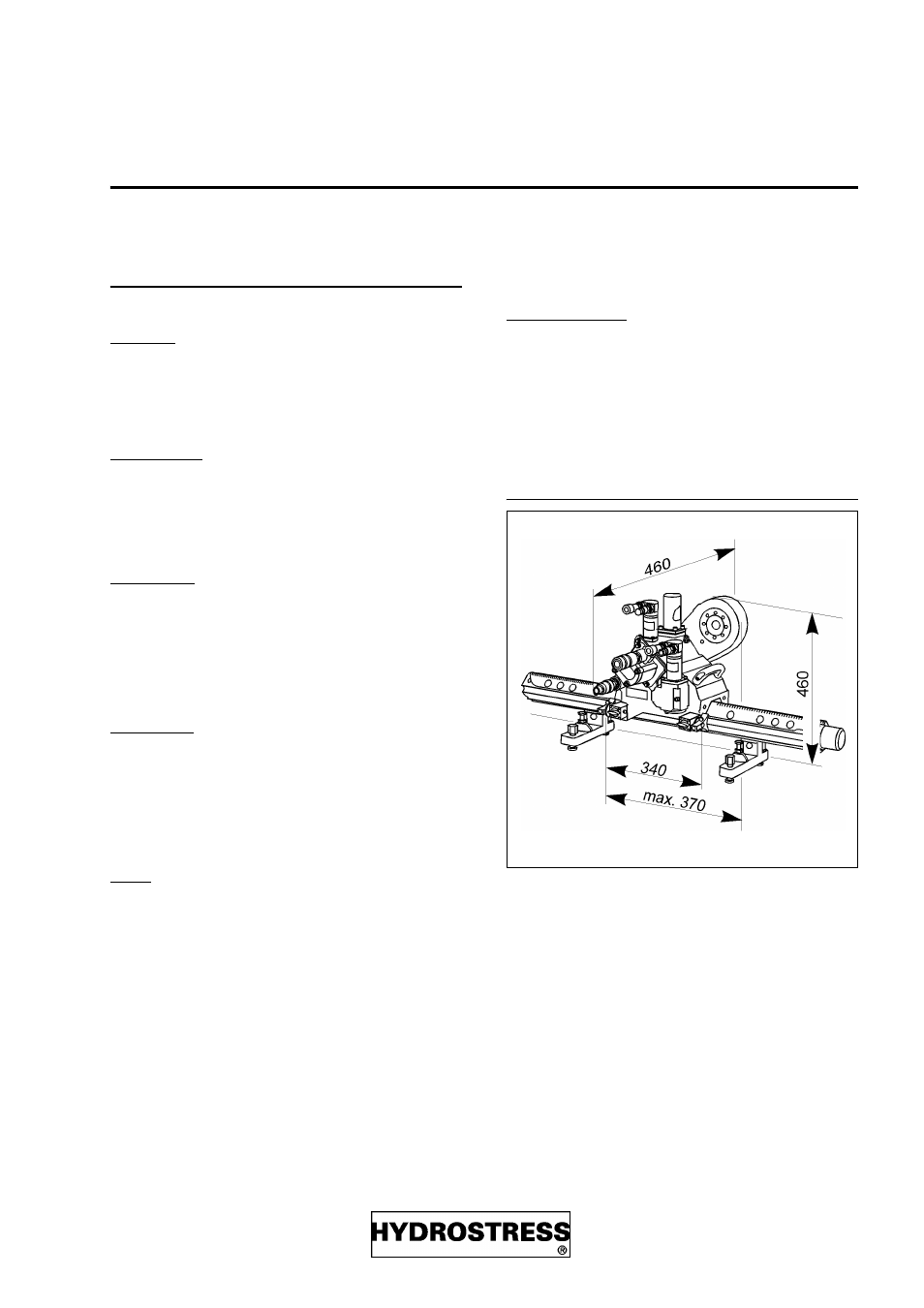

0HDVXUHPHQWV
