DZ-S2 Set-up
DZ-S2_e_0210.fm Page 21
3URFHGXUH
z Mark cutting line on the concrete.
z Mark dowel line at a distance of 22 cm.
(The same distance applies for flush cuts)
z Drill dowel hole and fit dowel according to
dowel manufacturer’s instructions

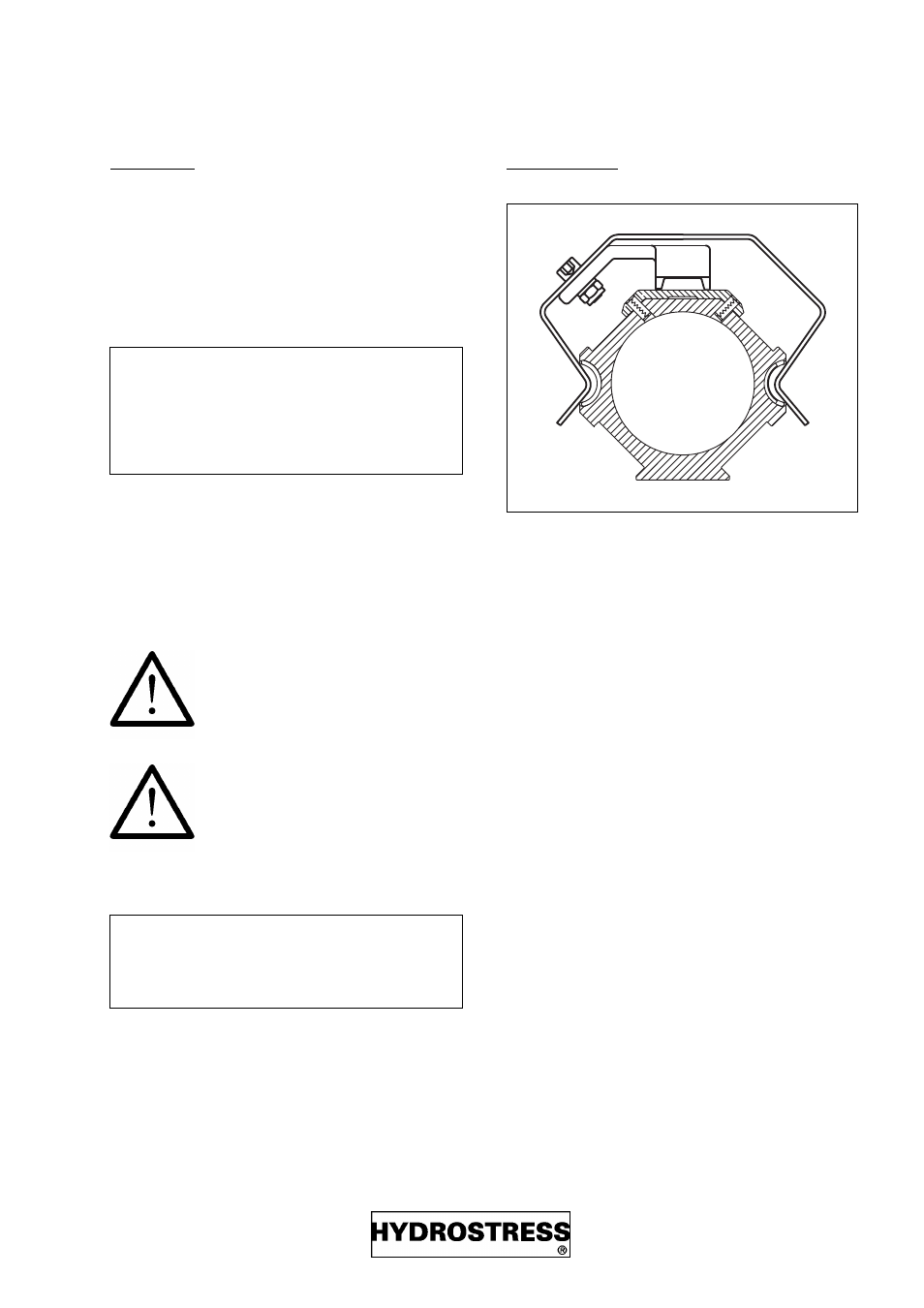

z Mount V-rail supports (9) on V-rails (1).
z Mount rail unit on concrete and align using
cut guide (10)
z Align rail unit with adjusting foot (8), so that
all adjusting feet (8) and the adjusting
screws (4) are supported by the concrete.
z Tighten rail unit (1)
5DLO OLPLW VWRS
z Mount rail limit stop on the end of the rail, so
that the wall saw head cannot fall off the
rail.
Clearance between rail supports:
- where a single rail is used, as high as possible
- where a number of rails are used, evenly distributed
along the entire length of rail.
Once rail unit has been mounted
check adjusting nut (3) and
clamping block (6) anchoring
Steel rail support 974478 should
not be combined with the
VAS rails
Flat, aluminium V-rail support 965987
should be combined with VS-rails and VAS-
rails.
