DZ-S2

Design and function

DZ-S2_e_0210.fm

Page 11

'HVLJQ DQG IXQFWLRQ

:DOO VDZLQJ V\VWHP GHVLJQ

The DZ-S2 wall sawing system comprises:

- Wall saw head

- Blade guard

- Rail system

:DOO VDZ KHDG

The wall saw head contains all the hydraulic

and mechanical parts for:

- Blade drive

- Travelling motion

- 360

swivelling motion

6DIHW\ FRPSRQHQWV

%ODGH JXDUG WKUHHSLHFH FROODSVLEOH

- folding

- removable side wing

- 800mm, 1000mm or 1200mm, normal and flush

- in aluminium

5DLO V\VWHP

- Anchoring to concrete with clamping block and dowel

screw

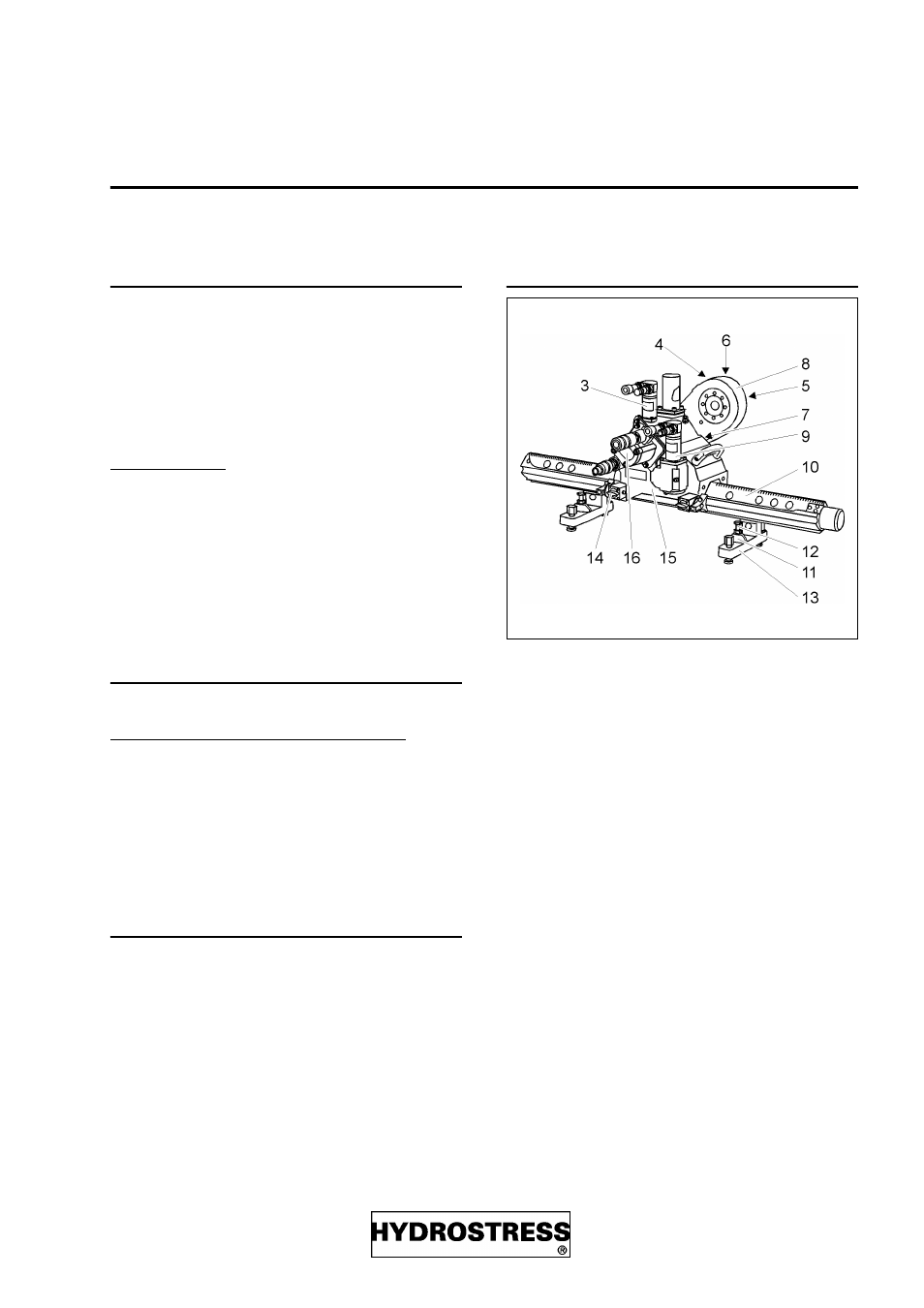

:DOO VDZ KHDG GHVLJQ

3 Swivelling motor

4 Belt wheel

5 Toothed belt cover

6 Toothed belt

7 Overload coupling

8 Swivel arm

9 Feed motor

10 V-rail

11 Clamping block

12 Dowel screw

13 V-rail support

14 Slide guide

15 Chassis

16 Saw motor
