Page 33

background image

ITEM

PART NO.

QTY.

DESCRIPTION

1

6030401

1

Belt guard mounting bracket

2

2901494

8

Flat Washer, M6

3

2900765

6

Lock Washer, M6 Split

4

2900341

3

Cap Screw, Hex Hd., M6-1.0 x 16mm

5

2900544

4

Cap Screw, Hex Hd., M6-1.0 x 12mm

6

6030417

1

Belt Guard -Gas

7

2900302

1

Lock Nut, M6-1.0 Nylon Insert

8

6047716

1

Belt Guard Brace

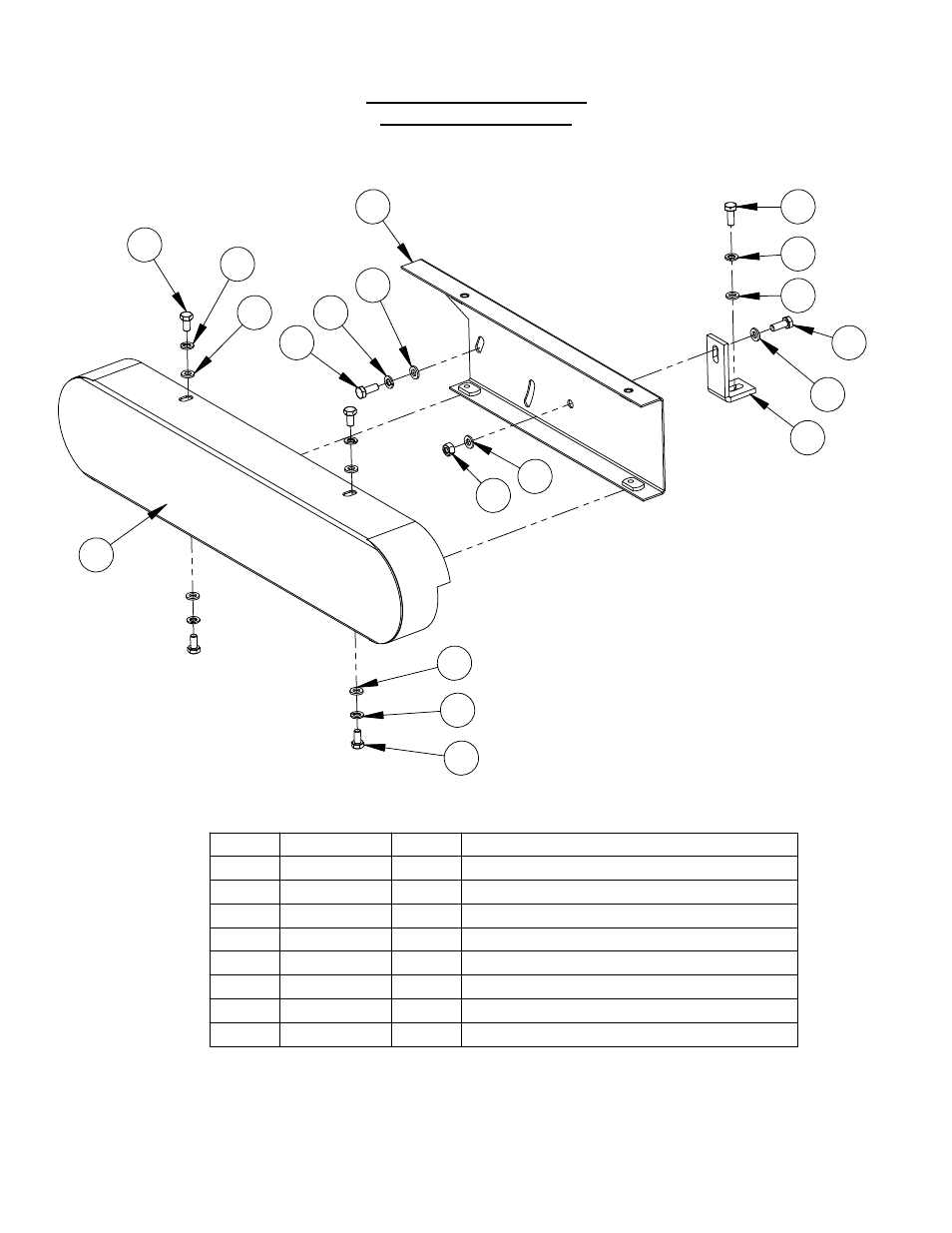

Belt Guard Assembly

(Gas Models Only)

2

4

2

1

6

5

3

2

2

3

5

4

3

2

2

7

4

3

8

33
