30_blade shaft assembly - elect, Blade shaft assembly - electric – Diamond Products CC500MXLII User Manual
Page 30
6
6
4
1
2
3
4
4
5
6
7
6
5
8
9
7
ITEM
PART NO.
QTY.
DESCRIPTION
1
2900539
1
Cap Screw, Hex Hd., 1/2-20 x 1" LH
2
6030313
1
Outer Flange, 4" w/o Pin
3
6030097
1
Bladeshaft w/ Inner Flange LH
4
2900372
4
Carriage Bolt M10 x 35
5
2500575
2
Flange Block Bearing, 7/8"
6
2901356
4
Flat Washer, M10
7
2900304
4
Lock Nut, M10-1.5 Nylon Insert
8
2500640
1
Pulley, 2AK30 - 7/8"
9
6048229
1
Key, 3/16" Sq. x 1-1/4"

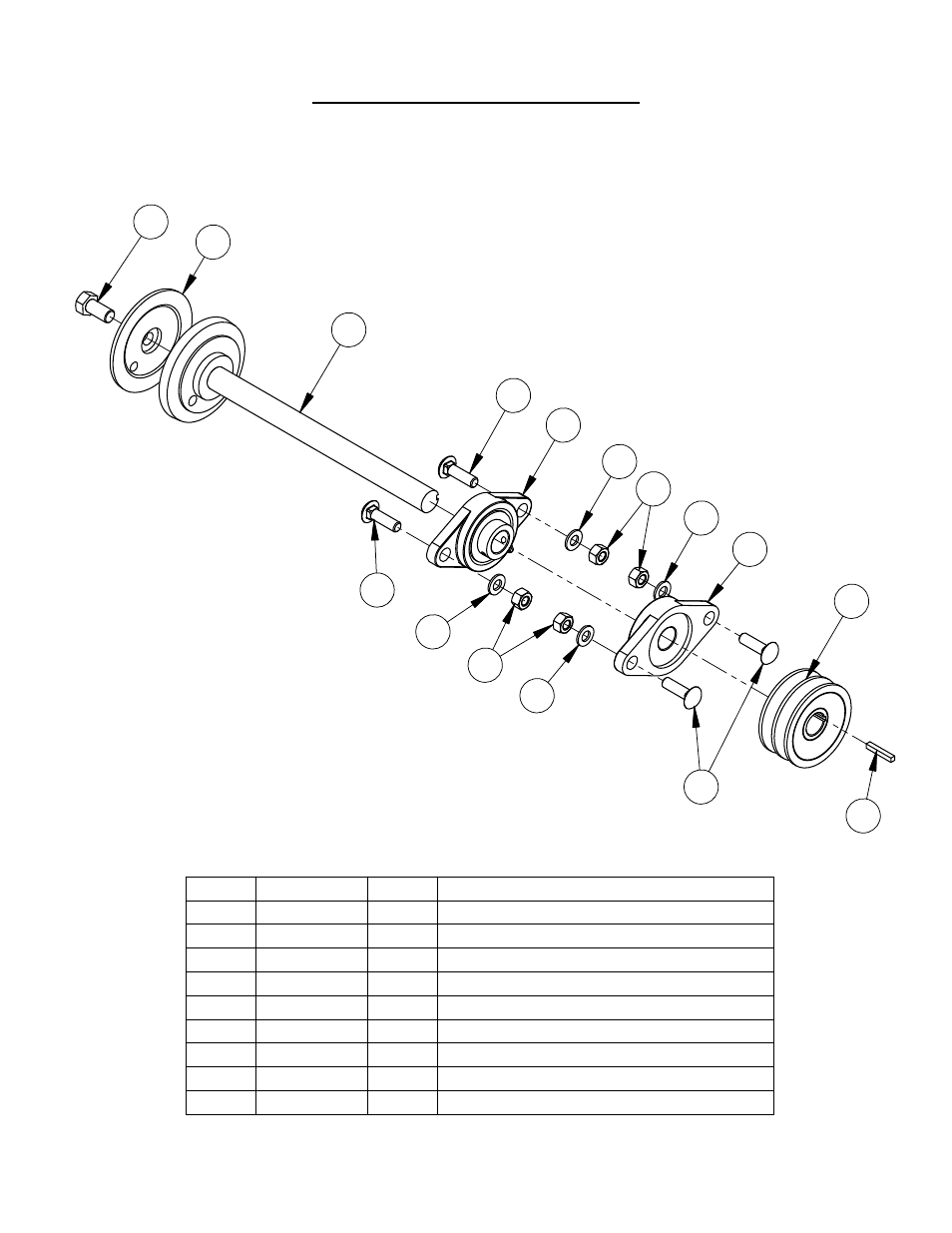

Blade Shaft Assembly - Electric
30
