Diamond Products CC500MXLII - Manual (Page 29)

ITEM PART NO. QTY. DESCRIPTION
1 6030405 1 Blade Guard Weldment
2 3204211 1 Male 1/4 PT to barbed 3/8" straight valve fitting
3 2900058 1 Flat Washer, 1/2" SAE
4 3202095 1 1/4 PT T-Shape Female Connector
5 3202094 2 Male 1/4 PT to barbed 5/16" adapter
6 3203004 2 8mm x 12mm x 330L Water Hose
7 2902019 2 B18.2.3.1M - Hex cap screw, M5 x 0.8 x 10 --10N
8 3204611 2 Clamp,1/2" Black Nylon
9 2502165 1 1/2" Heavy Duty E-Style Retaining Clip
10 2502162 2 12 X 10 X 32mm Bearing
11 2900310 4 Cap Screw, Hex Hd., M6-1.0 x 20mm
12 2900765 4 Lock Washer, M6 Split
13 2901494 4 Flat Washer, M6
14 6030273 1 Bearing Housing Weldment

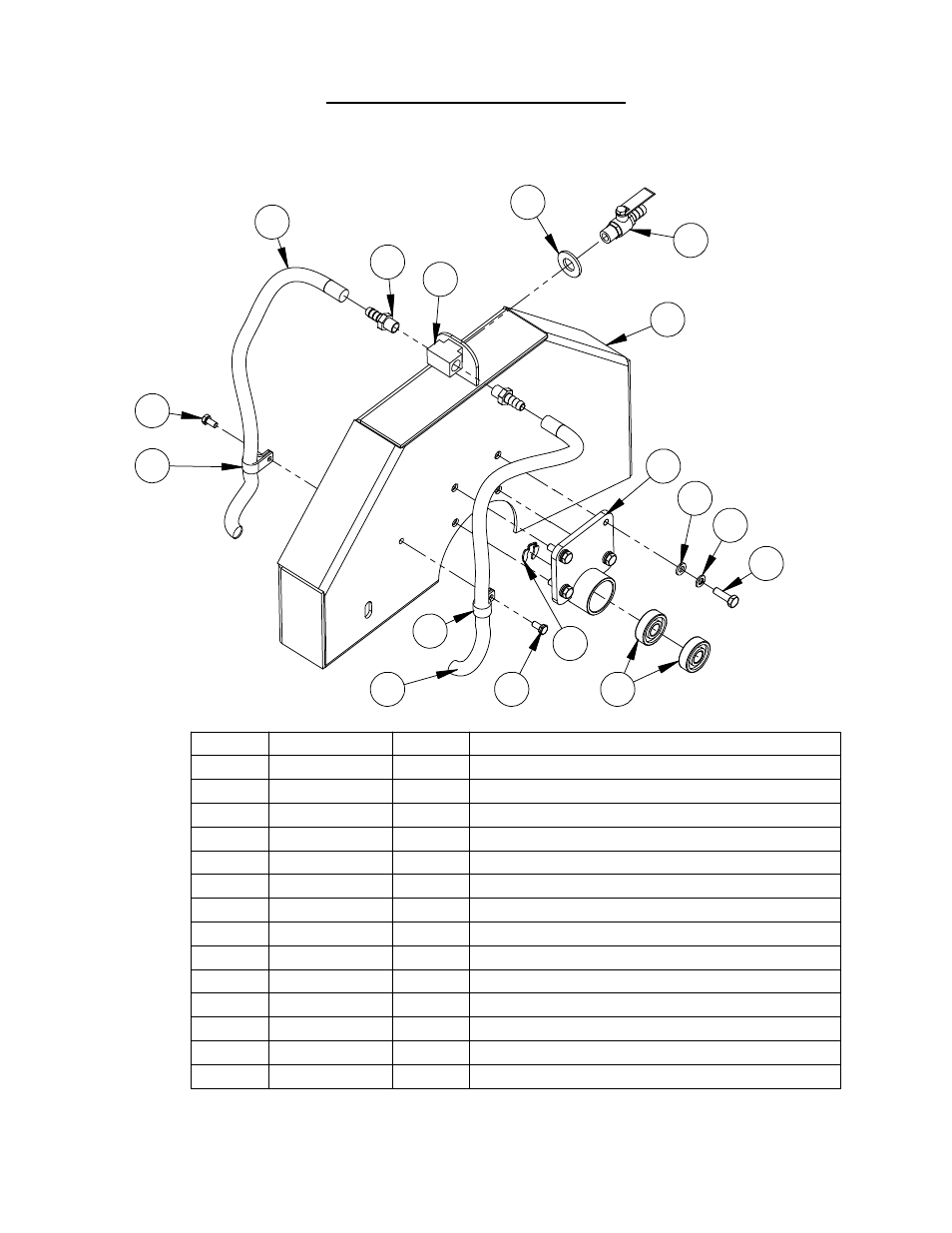

Blade Guard Assembly - Gas
7
2
3
4
5
6
8
9
8
11
12
13
14
1
7
10 6
