ITEM

PART NO.

QTY.

DESCRIPTION

1

2900539

1

Cap Screw, Hex Hd., 1/2-20 x 1" LH

2

6030313

1

Outer Flange, 4" w/o Pin

3

6030097

1

Bladeshaft w/ Inner Flange LH

4

2900372

4

Carriage Bolt M10 x 35

5

2500575

2

Flange Block Bearing, 7/8"

6

2901356

4

Flat Washer, M10

7

2900304

4

Lock Nut, M10-1.5 Nylon Insert

8

2505431

1

Ribbed J Pulley (40mm) and Bushing (22.2mm)

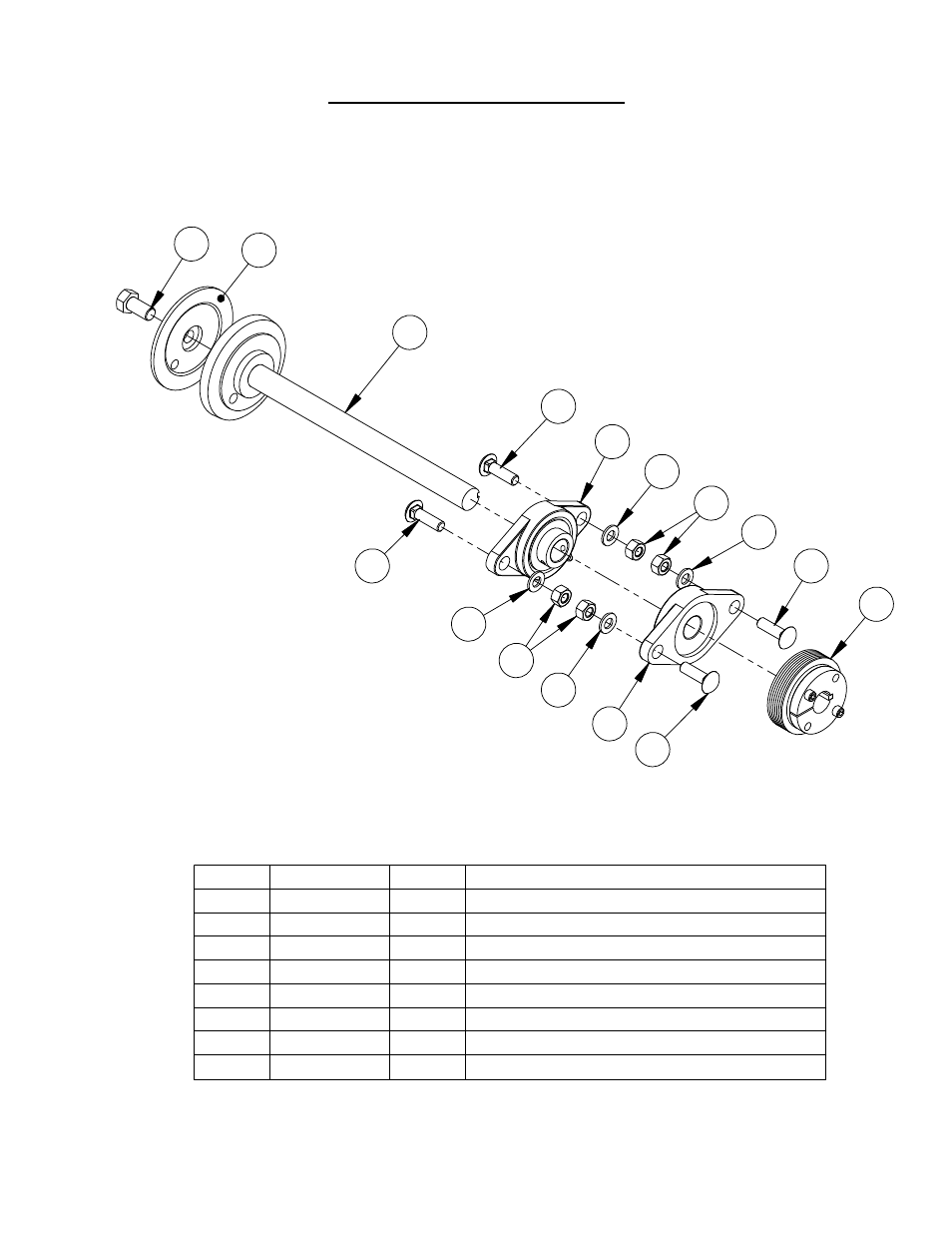

Blade Shaft Assembly- Gas
