Engine group: 13hp, Gear and shaft assembly….………………………………………………9, Reference – Diamond Products CC200 User Manual
Page 8: Shown as
2
Cap Screw, Hex Hd., 5/16-24 x 1-1/2"
4
2900022
6
Flat Washer, 5/16" SAE
5
2900031
4
Lock Washer, 5/16" Split
6
2900946
2
Hex Nut, 5/16-24
7
2900944
2
Cap Screw, Hex Hd., 5/16-24 x 2"
8
2501044
1
Bushing, Taper Lock, w/Fasteners
2900138
3
Cap Screw, Hex Hd., 5/16-18 x 1"
9
2501357
2
Key, 1/4" Sq., x 2.0"
10
2501178
1
Sheave, 6.00-2 Groove
11
2501161
1
Centrifugal Clutch W/ 2 Groove
Pulley, 4.0"
12
6041081
1
Clutch Spacer
13
2900966
1
Flat Washer, 1/2" x 2" x 1/8"
14
2900965
1
Cap Screw, Hex Hd., 7/16-20 x 3-1/2"
15
2501162
2
V-Belt, 4L400
16
6017351
1
Gas Tank Assy., CC100/200
2900945
3
Honda GXV390, Vertical Shaft
1
2600259
2
Engine Plate
ITEM PART NO. QTY.
DESCRIPTION
1
6048335
1
ITEM PART NO. QTY.
DESCRIPTION
17
6041121
1
Oil Drain Hose Assembly
3200462
1
Fitting, M20 x 1.5 to 5/8" M. JIC
3200440
1
Fitting. 5/8" F. to 1/2" M. JIC
3200181
1
Fitting, 1/2" F. JIC to 1/2" Pushlok
6010435
1
Hose, 1/2" I.D. x 3"
3200163
1
Fitting, 1/2" F. Pipe to 1/2" Push Lock
3200160
1
Plug, 1/2-14 NPT
18
2501046
1
Throttle Cable Assembly
19
6041062
2
Throttle Spacer
20
6013200
1
3/16 x 19" Fuel LIne W/ Clamps
3200062
2
Hose Clamp #4
21
2900597
2
Cap Screw, Hex Hd., M5-0.8 x 50mm
22
2900926
2
Flat Washer, M5
23
2900301
2
Lock Nut, M5-0.8 Nylon Insert
24
6041032
1
Frame Weldment
25
6041056
2
Handle Support
26
6041023
1
Handle Weldment

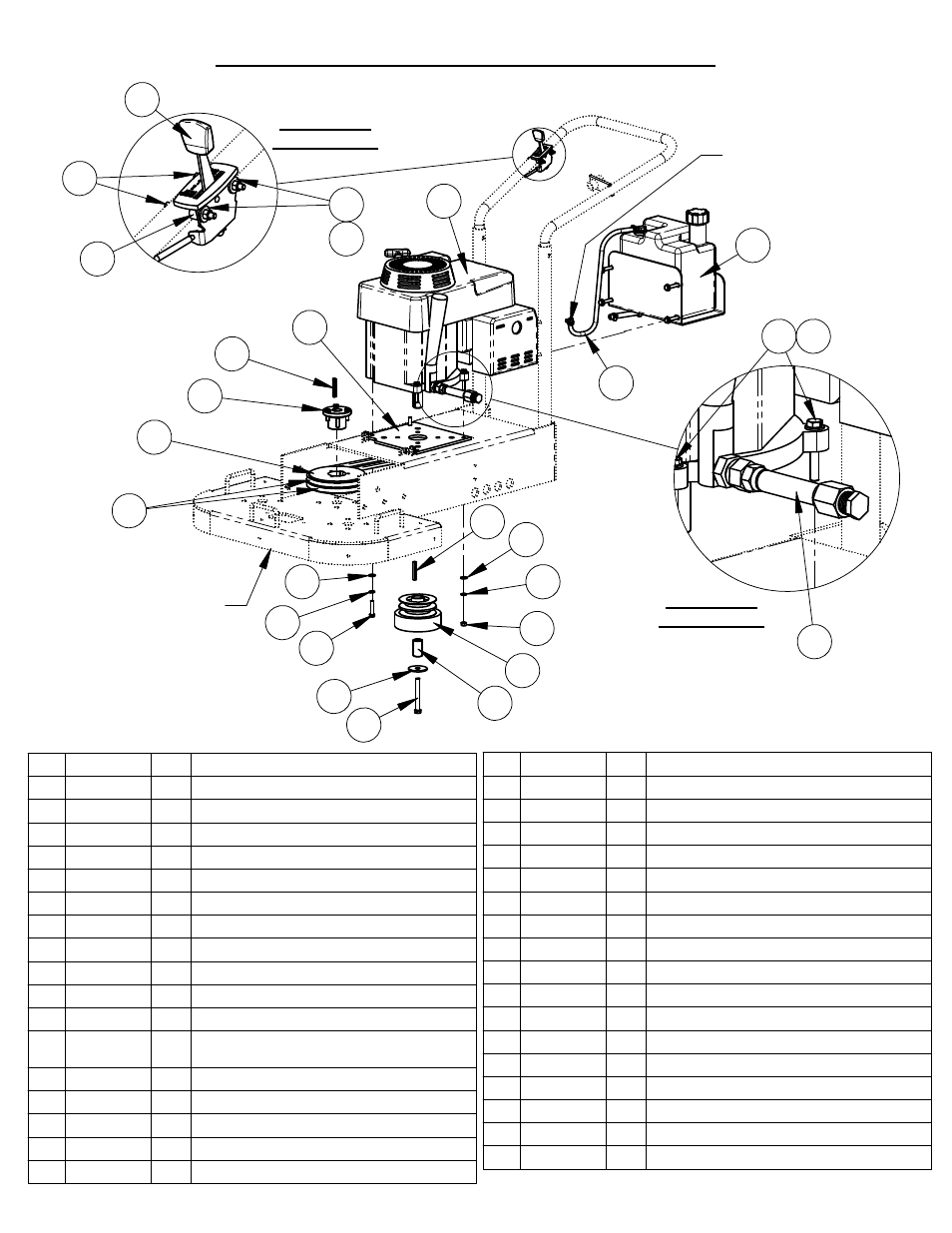

6040543 CC200 HONDA ENGINE GROUP, 10 HP
TO VENT PORT
@ AIR FILTER
15
REFERENCE
1
2
4
5
6
4
5
3
9
8
10
9
11
12
13
14
16
17
18
20
19
SHOWN AS
DETAIL A
SCALE 1 : 4
7
4
SCALE 1 : 4
23
DETAIL B
22
21
8
