Diamond Products CC200 User Manual
Page 23
4600298
ITEM
PART
NO.
QTY.
DESCRIPTION
1
2702419
1
Electrical Box (Base)
2
6040598
1
Sub-plate
3
2900676
4
Machine Screw, Pan Hd., M4-0.7 x
8mm
4
2801704
1
Contactor, 220-240V (includes coil)
2801265
1
Replacement Coil, 220-240V
5
2801699
1
Overload Relay, 9-45 AMP
6
2801676
1
Auxilary Contacts, 1NO-NC
7
2901827
4
Cap Screw, Soc. Hd., #8-32 x 5/8"
8
2901437
4
Flat Washer, #10
9
2800315
2
Grounding Lug
10
2900024
1
Lock Washer, 1/4" Split
ITEM
PART
NO.
QTY.
DESCRIPTION
11
2901891
1
Cap Screw, Hex Hd., 1/4-28 x 1/2"
12
2801636
1
E-Stop Switch, 600V
13
2801639
1
Pushbutton, N.O., 600V
14
2701414
4
Fastener, Electrical Box Top
15
6048296
1
Electric Box Cover, 2 Hole
16
4600293
1
Wire, 14 Gage, Yellow, 15"
17
4600294
1
Wire, 14 Gage, Yellow, 6"
18
4600295
1
Wire, 14 Gage, Black, 6"
19
4600296
1
Wire, 14 Gage, Black, 15"
20
4600297
1
Wire, 14 Gage, Red, 12"
21
4600298
2
Wire, 14 Gage, Red, 13"

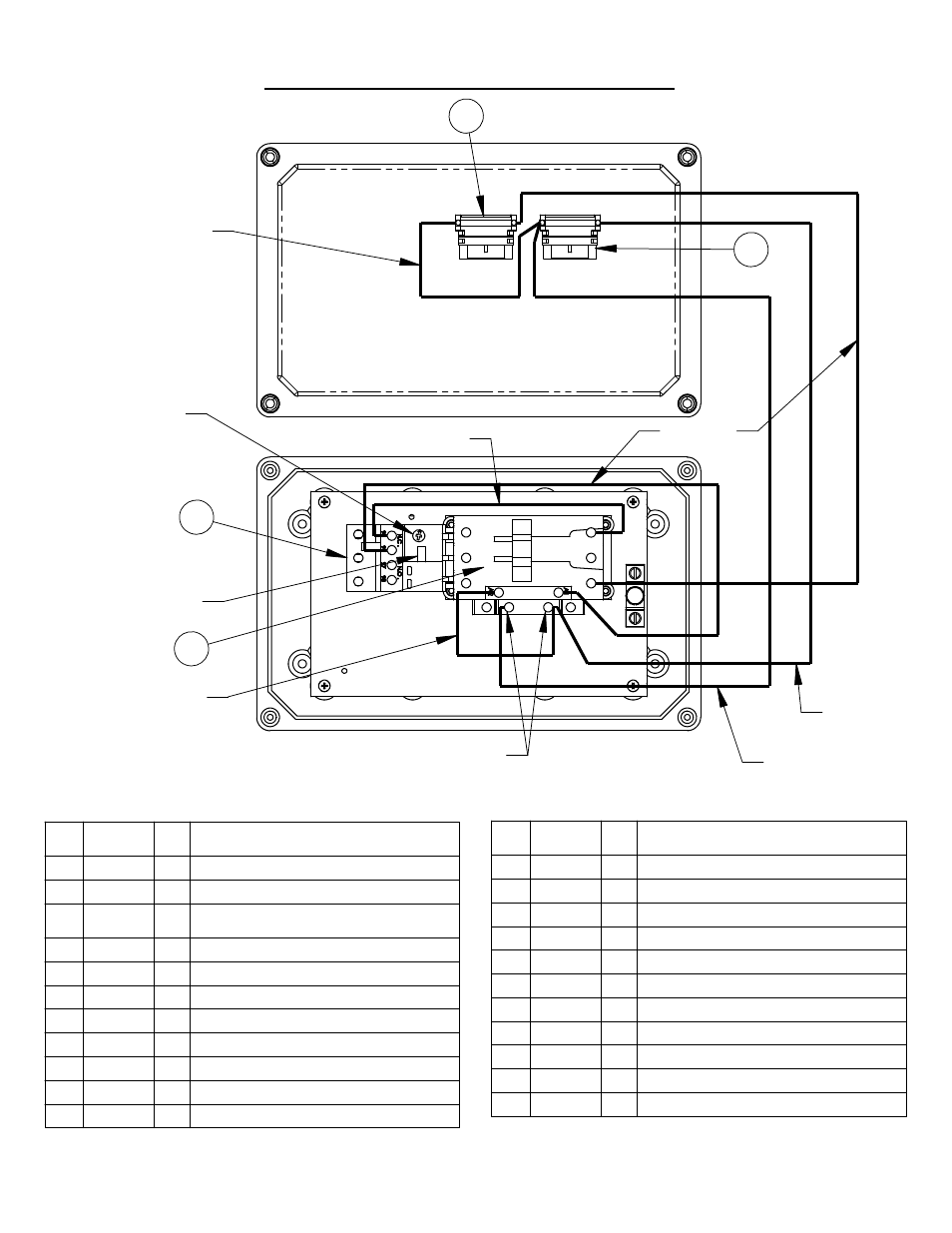

2801032 STARTER BOX, 220-240 VOLT
4600295
12
13
4600296
4600293
5
4
N.O. ONLY
PHASE - OFF
RESET - A
TRIP CLASS - 10
RATING
4600294
SET TO
MOTOR AMP
4600297
23
