Page 19

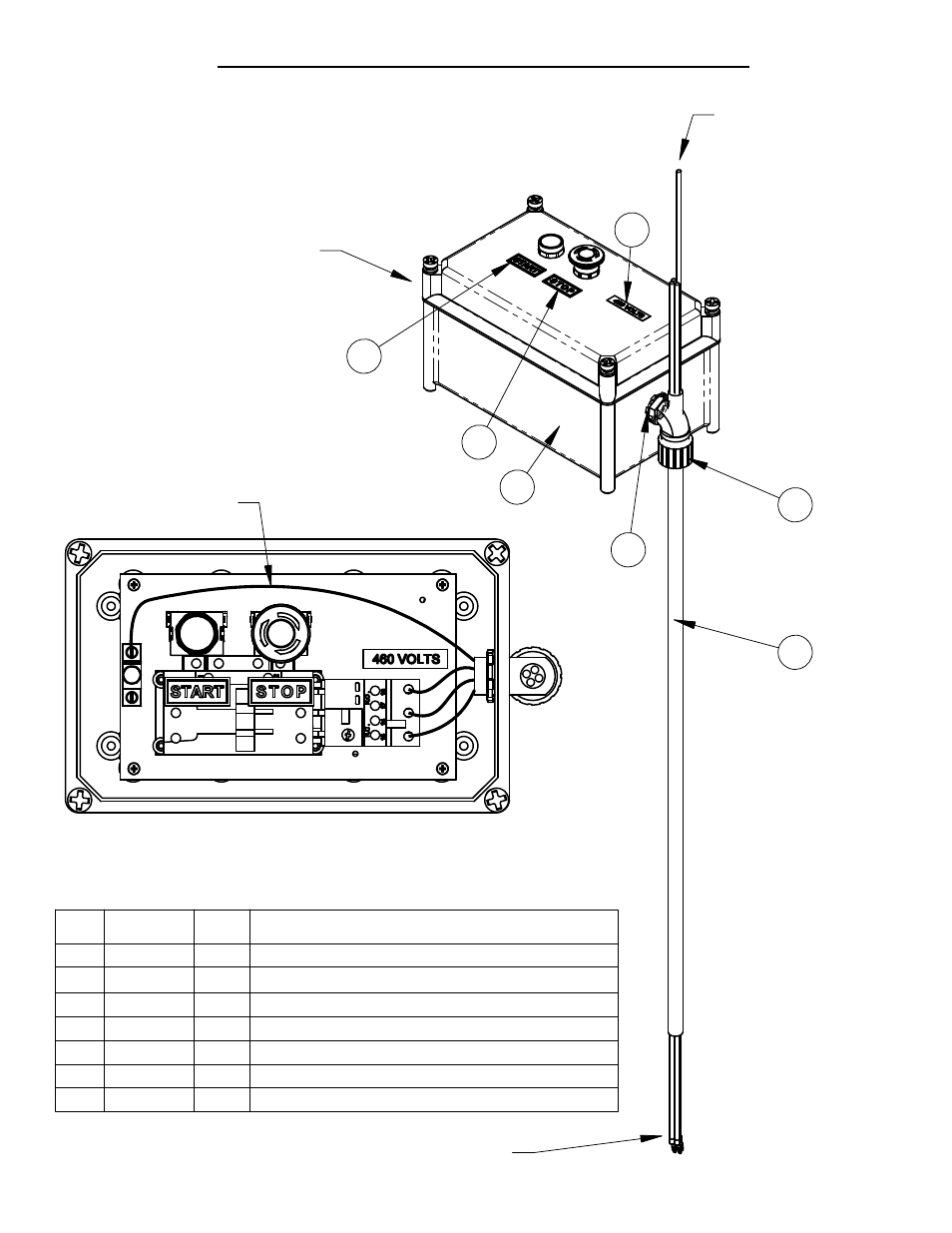

4645262 STARTER BOX ASSEMBLY, 415-480 VOLT
ITEM
PART NO.
QTY.
DESCRIPTION
1
4600273
1
Starter Box, 415-480 Volt
2
2802052
1
Cord Connector, 3/4" Thd., .63-75" Cord, 90 Deg.
3
2801304
1
Lock Nut, 3/4"
4
6040649
1
Cable Assy., 12 Ga., 4 Wire x 53"
5
1800811
1
Voltage Label, 460V
6
1801638
1
Decal, Start
7
1801639
1
Decal, Stop
GROUND LUG
TO MOTOR
AND GROUND LUG
6
2
TO STARTER BOX
PLUG.
1
5
4
7
OVERLOAD RELAY
CUSTOMER SUPPLIED
HOLE FOR
GREEN TO
3
