OVERLOAD RELAY
2
TO MOTOR
AND GROUND LUG
3
CUSTOMER SUPPLIED
TO STARTER BOX
POWER CORD.
1
4
5
7
6
HOLE FOR
GREEN TO
GROUND LUG

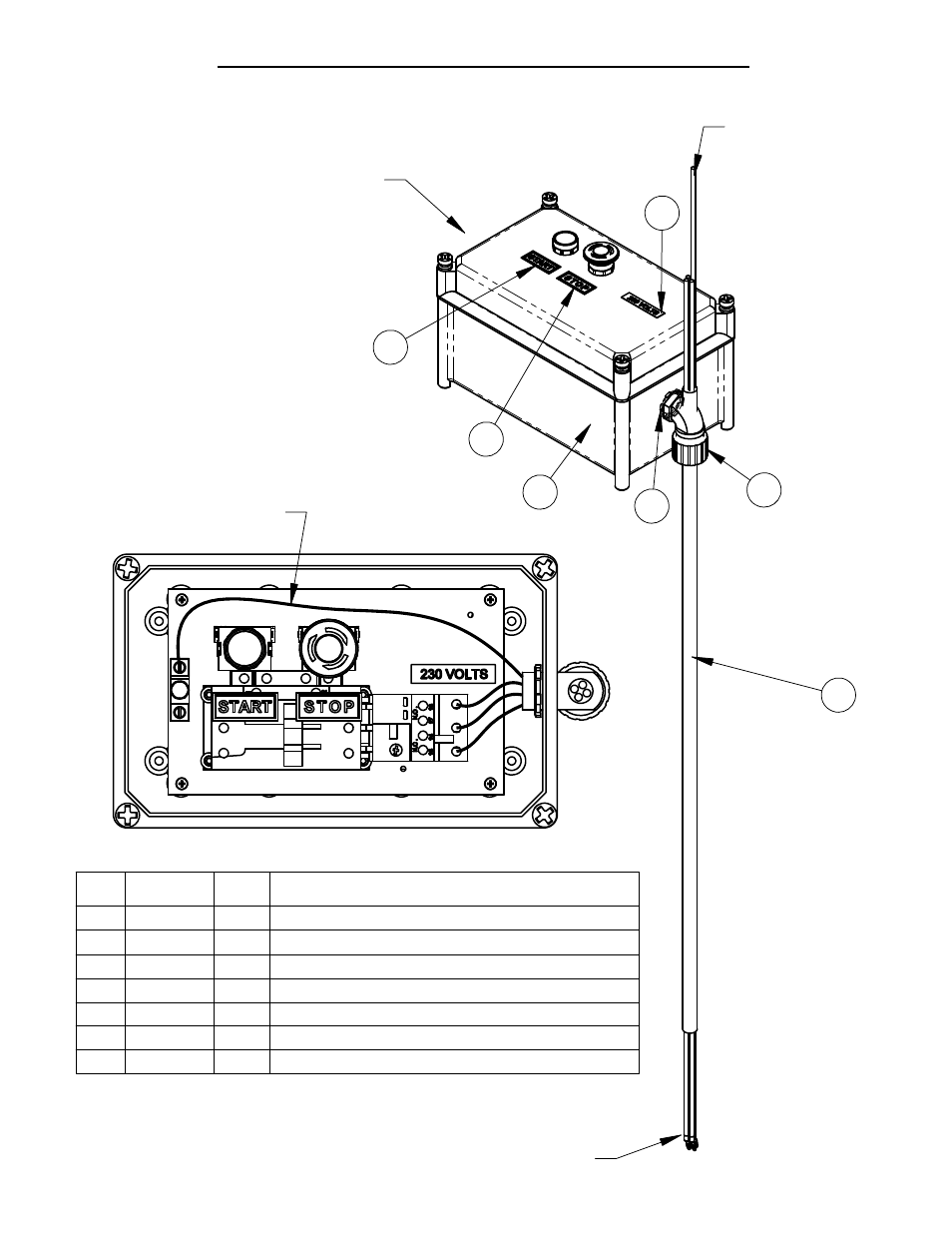

4645261 STARTER BOX ASSEMBLY, 220-240 VOLT
ITEM PART NO.
QTY.
DESCRIPTION
1
4600272
1
Starter Box, 220-240 Volt
2
2802052
1
Cord Connector, 3/4" Thd., .63-75" Cord, 90 Deg.
3
2801304
1
Lock Nut, 3/4"
4
6040649
1
Cable Assy., 12 Ga., 4 Wire x 53"
5
1800810/11
1
Voltage Label, 230/460V
6
1801638
1
Decal, Start
7
1801639
1
Decal, Stop
