Diamond Products CB20E-XL User Manual
Page 29
4600298
4
2901437
9
Cap Screw, Soc. Hd., #8-32 x 5/8"
ITEM
PART
NO.
QTY.
DESCRIPTION
1
6040300D
1
Starter Box Base
2
2901588
4
M6-1.0 Threaded Insert
3
6040598
1
Sub-plate
4
2900676
4
Machine Screw, Pan Hd., M4-0.7 x
8mm
5
2801708
1
Contactor, 380-440V (includes coil)
2801268
1
Replacement Coil, 380-440V
6
2801699
1
Overload Relay, 9-45 AMP
7
2801676
1
Auxilary Contacts, 1NO-NC
8
2901827
4
Grounding Lug
2
2800315
10
Flat Washer, #10
ITEM
PART
NO.
QTY.
DESCRIPTION
11
2900024
1
Lock Washer, 1/4" Split
12
2901891
1
Cap Screw, Hex Hd., 1/4-28 x 1/2"
13
2801636
1
E-Stop Switch, 600V
14
2801639
1
Pushbutton, N.O., 600V
15
6048293
1
Starter Box Cover
16
2701414
4
Fastener, Electrical Box Top
17
4600293
1
Wire, 14 Gage, Yellow, 15"
18
4600294
1
Wire, 14 Gage, Yellow, 6"
19
4600295
1
Wire, 14 Gage, Black, 6"
20
4600296
1
Wire, 14 Gage, Black, 15"
21
4600297
1
Wire, 14 Gage, Red, 12"
22
4600298
2
Wire, 14 Gage, Red, 13"

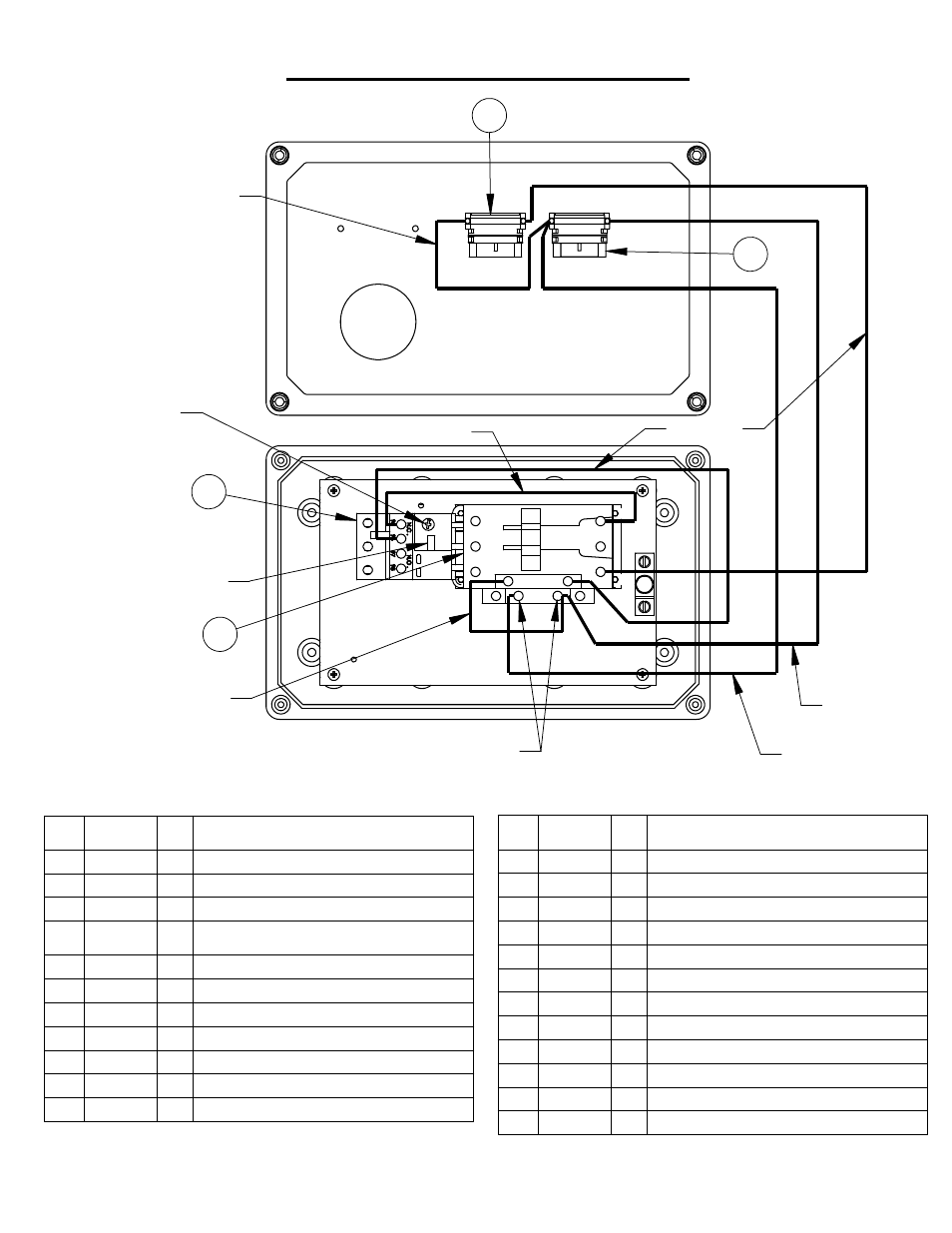

2801269 STARTER BOX, 380-440 VOLT
5
RESET - A
RATING
4600294
6
TO MOTOR AMP
4600293
SET CURRENT LIMIT
PHASE - OFF
TRIP CLASS - 10
N.O. ONLY
4600297
13
4600295
14
4600296
29
