Page 17

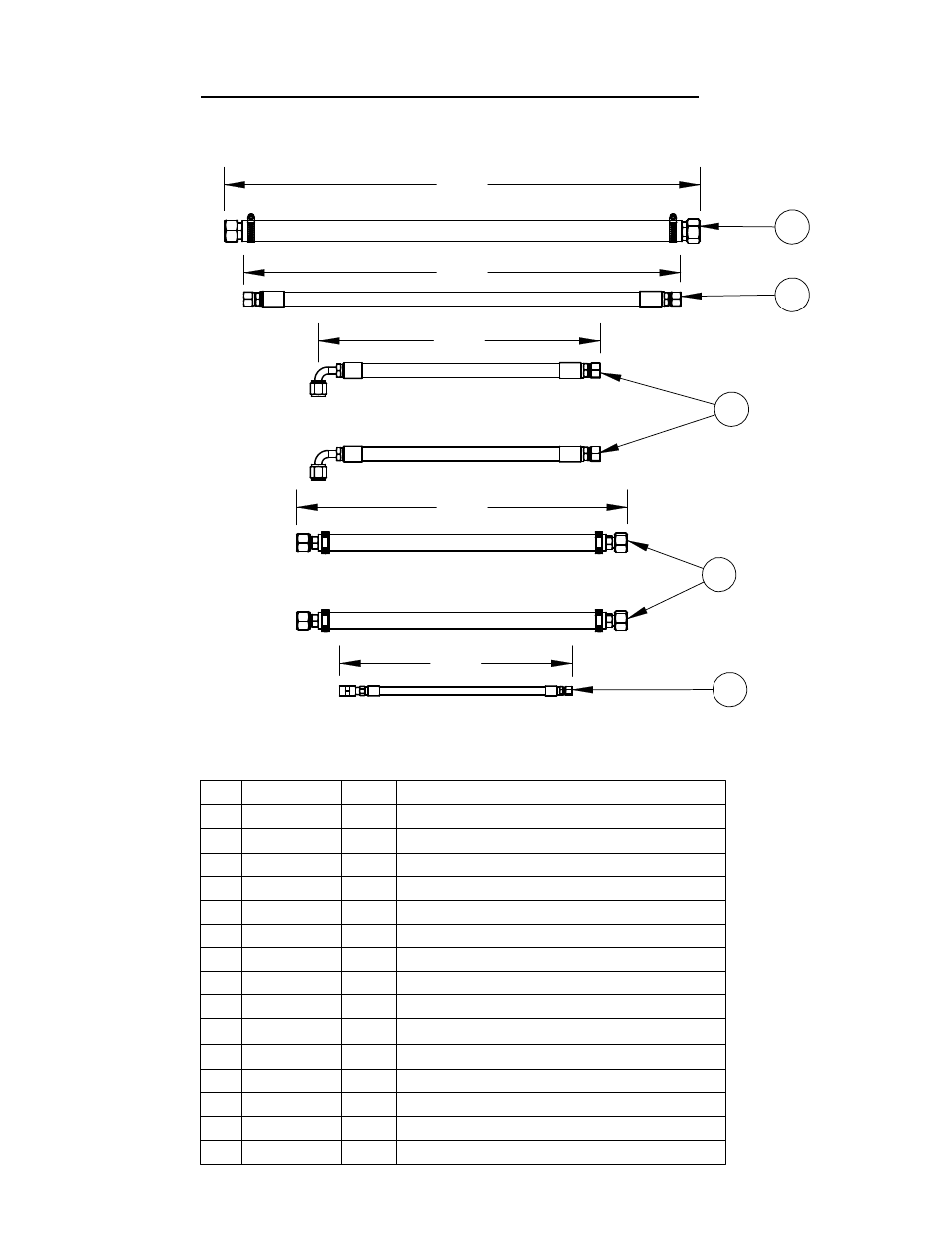

4646180 CB20XL & CB35XL HOSE KIT
ITEM PART
NO.
QTY.
DESCRIPTION
1
6040057
1
Hose Assy., 1 x 34"
3202317
2
Fitting, 1" FJIC to 1" Hose Barb
3200135
2
Hose Clamp #16
2
4641067
1
Hose Assy., 5/8" x 31-1/4"
3202075
2
5/8"FJICS x 5/8" Parkrimp Hose End Fitting
3
4646170
2
Hose Assy., 5/8" x 20"
3201883
1
5/8" FJIC Parkrimp, 90 Deg.
3202075
1
5/8"FJICS x 5/8" Parkrimp Hose End Fitting
4
4646086
2
Hose Assembly, 3/4" x 23.6"
3201989
2
Fitting, 3/4" F.JIC to 3/4" Hose Barb
3200135
2
Hose Clamp #16
5
4646055
1
Hose Assembly, 1/4" x 16.6"
3200128
1
Fitting, 1/4" F. JIC to 1/4" Hose Crimp
3200145
1
1/4 MPT - 1/4 Hose Crimp
3201110
1
Coupling, 1/4" NPT
5
2
3
4
1
31.2
16.6
23.6
20.1
34.0
