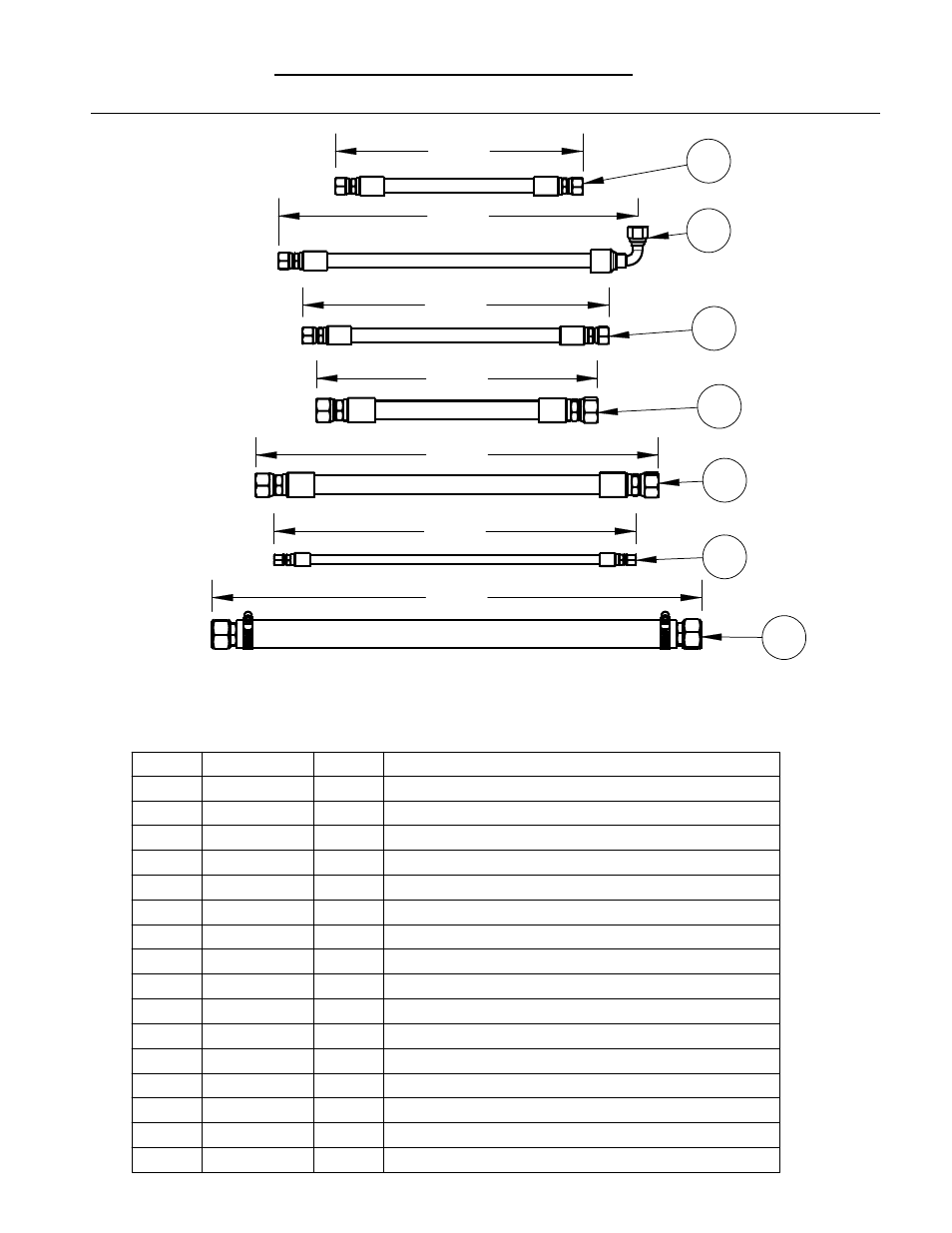

4646114 CB 150/240 HOSE KIT
ITEM
PART NO.
QTY.
DESCRIPTION
1
6040061
1
Hose Assembly, 1/2"X 13-1/4"
3200290
2
Fitting, 1/2" Female JIC to 1/2" Hose Crimp
2
4646056
1
Hose Assembly, 1/2" X 19-1/4"
3200290
1
Fitting, 1/2" Female JIC to 1/2" Hose Crimp
3200408
1
Elbow, 1/2" F. JIC to 1/2" Parkrimp 90 deg.
3
4646057
1
Hose Assembly, 1/2" X 16.4"
3200290
2
Fitting, 1/2" Female JIC to 1/2" Hose Crimp
4
4646078
1
Hose Assembly, 3/4 x 15"
3200129
2
Fitting, 3/4" F. JIC to 3/4" Hose Crimp
5
4646108
1
Hose Assembly, 3/4 x 21-1/2"
3200129
2
Fitting, 3/4" F. JIC to 3/4" Hose Crimp
6
4646109
1
Hose Assembly, 1/4" x 19-3/8"
3200128
2
Fitting, 1/4" F. JIC to 1/4" Hose Crimp
7
4646124
1
Hose Assembly, 1" X 26-1/4"
3202317
2
Fitting, 1" FJIC to 1" Hose Barb
3200135
2
Hose Clamp #16
FOR ALL CB150 UNITS AND CB240 UNITS MANUFACTURED PRIOR TO JANUARY 2010
