4646162 CB 240 HOSE KIT
ITEM
PART NO.
QTY.
DESCRIPTION
1
6040061
1
Hose Assembly, 1/2"X 13-1/4"
3200290
2
Fitting, 1/2" Female JIC to 1/2" Hose Crimp
2
4646056
1
Hose Assembly, 1/2" X 19-1/4"
3200290
1
Fitting, 1/2" Female JIC to 1/2" Hose Crimp
3200408
1
Elbow, 1/2" F. JIC to 1/2" Parkrimp 90 deg.
3
4646160
1
Hose Assembly, 1/2"X 21-1/4"
4646160A
1
Hose, 1/2", 2500psi
3200290
2
Fitting, 1/2" Female JIC to 1/2" Hose Crimp
4
6017344
1
Hose Assembly 3/4" x 18"
3201989
2
Fitting, 3/4" F.JIC to 3/4" Hose Barb
3200135
2
Hose Clamp #16
5
4646161
1
Hose Assembly, 3/4 x 41-1/2"
3200129
2
Fitting, 3/4" F. JIC to 3/4" Hose Crimp
6
4646109
1
Hose Assembly, 1/4" x 19-3/8"
3200128
2
Fitting, 1/4" F. JIC to 1/4" Hose Crimp
7
6040057
1
Hose Assy., 1 x 34"
3202317
2
Fitting, 1" FJIC to 1" Hose Barb
3200135
2
Hose Clamp #16
1
2
4
6
5
3
7

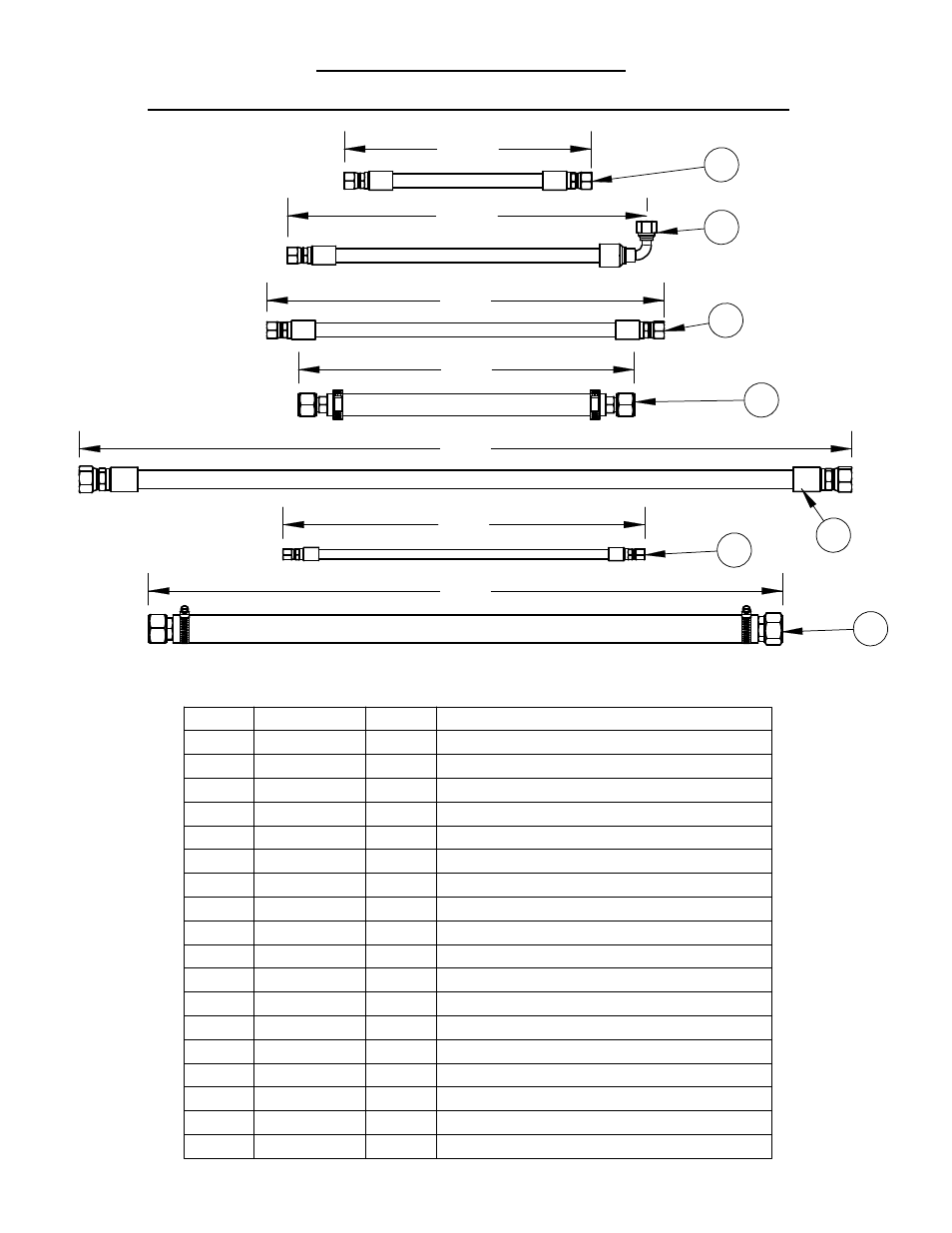

FOR CB240 UNITS MANUFACTURED AFTER DECEMBER 2009
19.25
13.25
21.3
34.0
41.4
19.4
18.0
12
