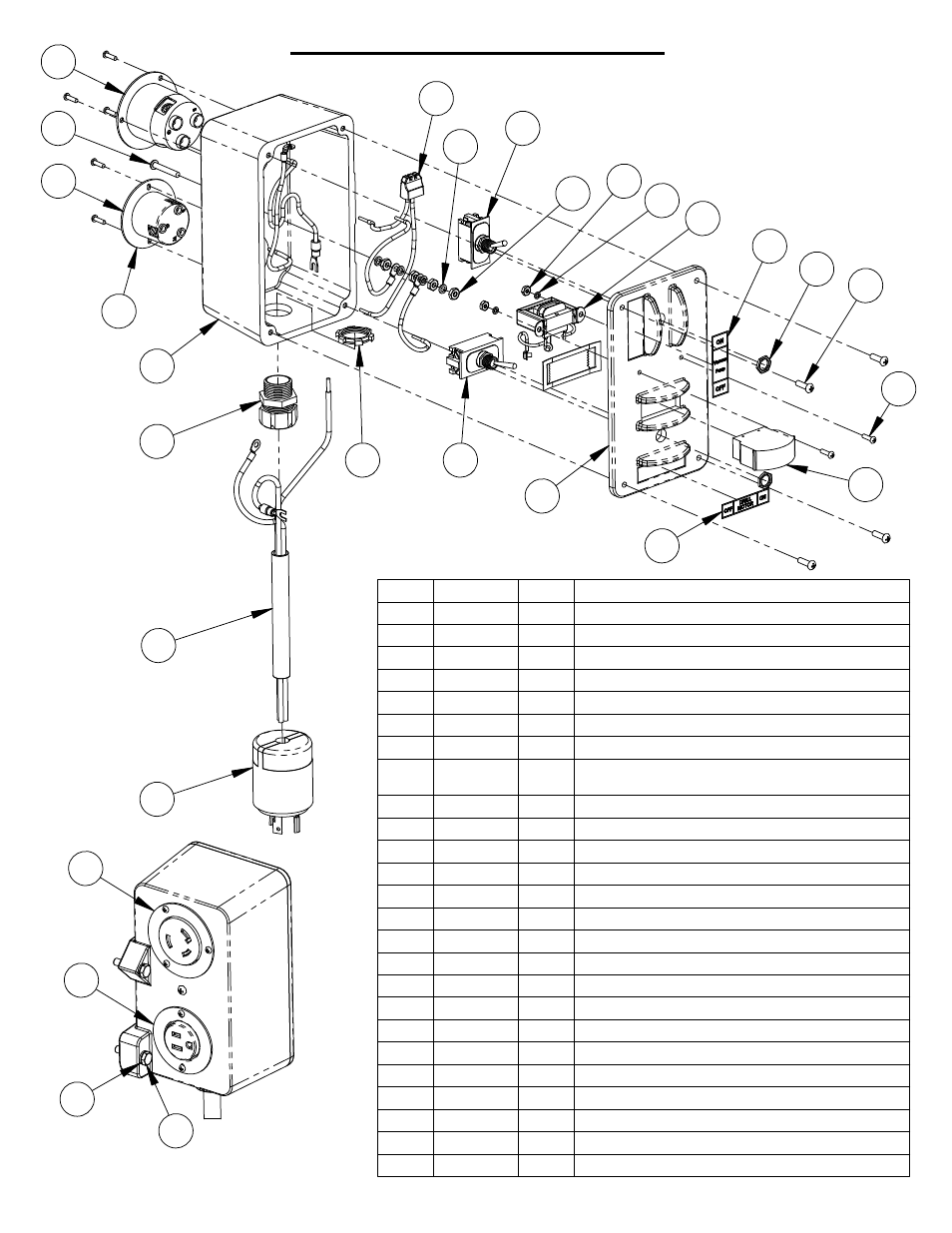

Dual Switch Control Panel #4277594
ITEM
PART NO.
QTY.
DESCRIPTION
1
4699957
1
Control Box, 115V, Milwaukee Motor Only
2
4699460
1
Cover Plate, 115 Volt
3
4699506
1
Line Cord for 115 Volt
4
2800043
1
Connector, 3/4" Cord
5
2800050
1
Lock Nut, 3/4" Sealing
6
2800023
1
Plug, 125V, 30A, Twist Lock
7
2800017
1
Toggle Switch
8
2800016
1
Toggle Switch 16A/125V DPST, ON/OFF,
Screw Term.
9
2800018
1
Flanged Outlet, 15 Amp, 125 Volt
10
2800039
1
Flanged Outlet, 30 Amp, 125 Volt
11
2900204
2
Nut, Toggle Switch, 15/32"-32
12
2900159
4
Machine Screw, Rd. Hd., #10-24 x 5/8"
13
2800085
1
Transformer, 115V
14
2800558
1
Amp Meter 115V, 0-30 Amp
15
2801800
1
Connector, Push-In 3 Port, 14-10 Ga Wire
16
2900172
1
Machine Screw, Rd. Hd., #10-24 x 1-1/4"
17
2900050
4
Hex Nut, #10-24
18
2900038
4
Lock Washer, #10 Split
19
2900090
7
Machine Screw, Rd. Hd., #6-32 x 1/2"
20
2900091
2
Hex Nut, #6-32
21
2900092
2
Lock Washer, #6 Split
22
2900052
2
Cap Screw, Hex Hd., 1/4-20 x 1-1/4"
23
2900024
2
Lock Washer, 1/4" Split
24
1800253
1
ON/OFF Drill Motor Label
25
1800254
1
ON/OFF Vacuum Pump Label
