Sheet1, Drawing view1 – Diamond Products M-5 Pro User Manual
Page 13
2
3
6
5
4
1
5
6
4
7
7

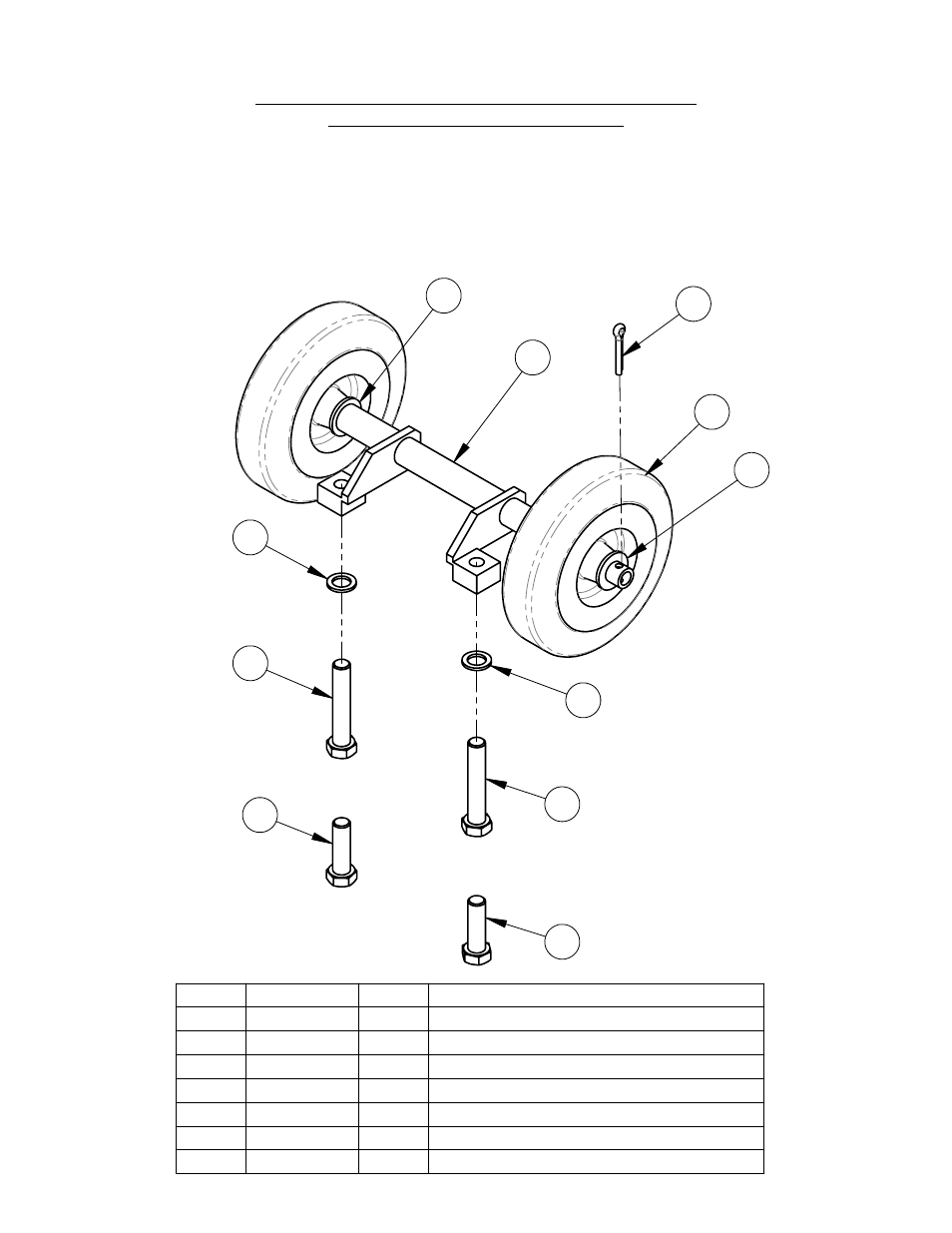

Wheel Assembly #3402052 (SK-8, WCH-14)
(M-5 Pro Anchor Base Only)
ITEM
PART NO.
QTY.
DESCRIPTION
1
4600271
1
Wheel Weldment
2
4600272
2
Wheel Rubber, 140/37.5 - 50
3
2900055
2
Cotter Pin, 3/16" x 1"
4
2900326
4
Flat Washer, M14
5
3403010
2
Washer, M12 20/13/2mm
6
2900359
2
Tap Screw, Hex Hd., M12-1.75 x 65mm
7
2900331
2
Cap Screw, Hex Hd., M12-1.75 x 40mm
13
