Diamond Products M-5 Pro User Manual
Page 18

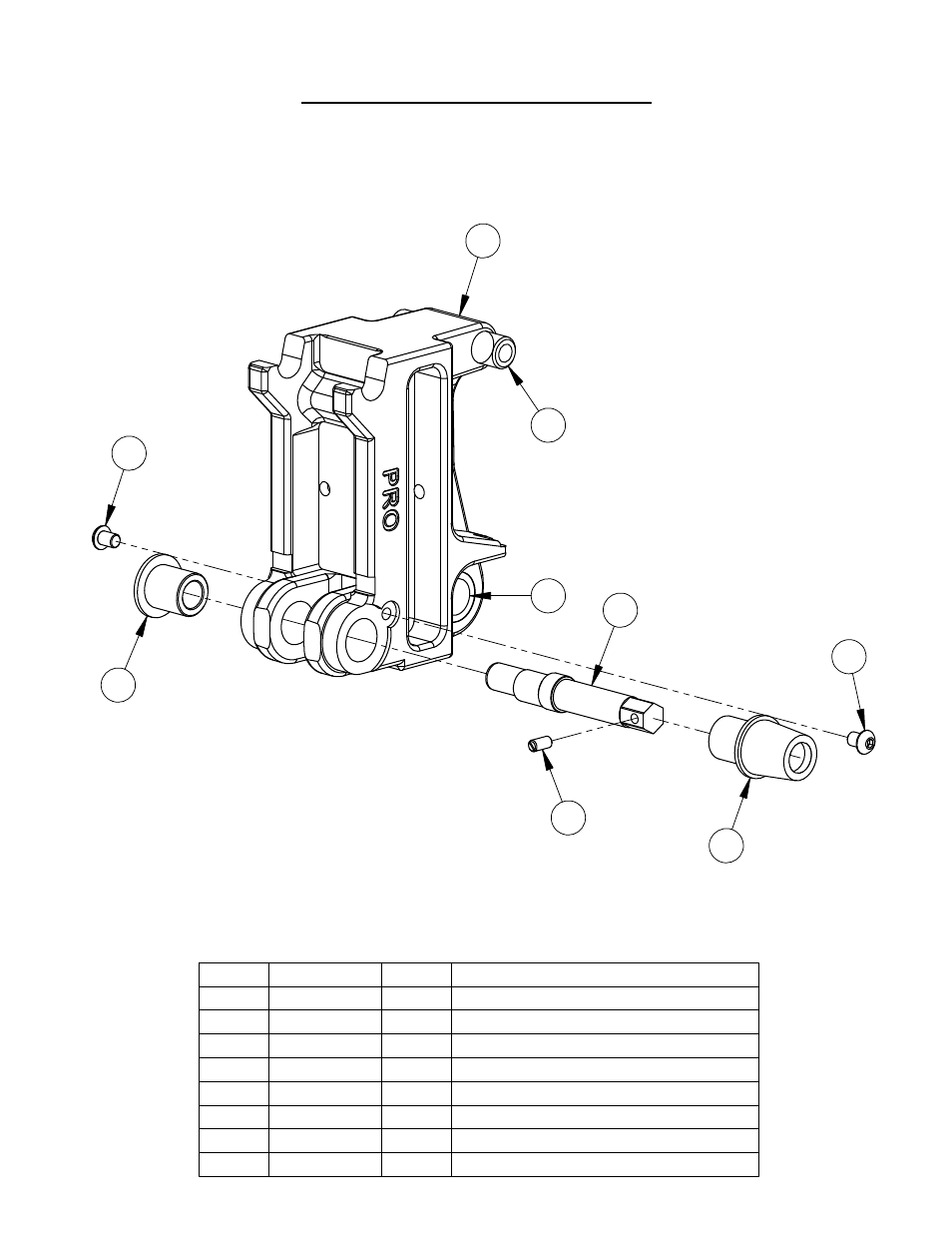

QD Outrigger Assembly #4400253
ITEM
PART NO.
QTY.
DESCRIPTION
1
4400255
1
QD Outrigger
1.2
2400144
1
Bronze Bearing, 1-3/8" x 1"
1.3
4600111
1
Support Tube
2
4600108
1
Cam Lock Shaft
3
2400143
1
Ball Plunger M8
4
4600109
1
Cam Shaft Housing
5
4600110
1
Cam Shaft Bushing
6
2900285
2
Cap Screw, Button Hd., 3/8-24 x 1/2"
1.3
2
6
3
4
5
6
1.2
1
18
