Diamond Products M-5 Pro - Manual (Page 16)

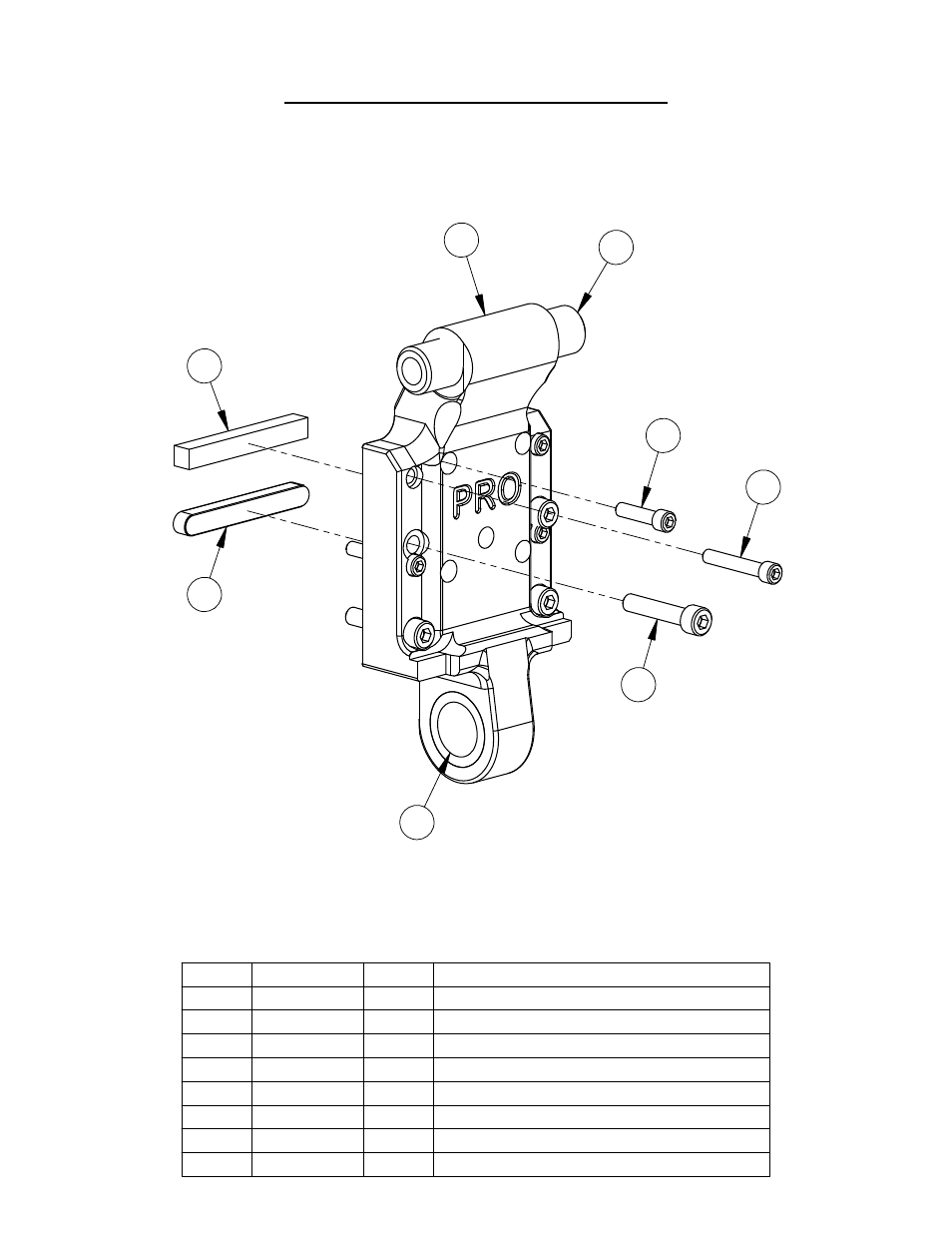

QD Motor Mount Assembly #4600204
ITEM PART NO. QTY. DESCRIPTION
1 4600205 1 QD Motor Mount
1.2 4600111 1 Support Tube
1.3 2400144 1 Bronze Bearing, 1-3/8" x 1"
2 2900089 4 Cap Screw, Soc. Hd., 1/4-28 x 1"
3 2900399 4 Cap Srew, Soc Hd., 1/4-20 x 1-1/2"
4 2900398 4 Cap Screw, Soc. Hd., M8-1.25 x 40mm
5 4600131 1 Key, 3/8" Sq. x 3"
6 2900397 1 Parallel Key, 10mm x 8mm x 80mm
