Diamond Products CC4144D - Manual (Page 6)

ITEM PART NO. QTY. DESCRIPTION
1 6045140 1 CC4144D Upright Weldment (Low Profile)
2 2900022 9 Flat Washer, 5/16" SAE
3 2900031 8 Lock Washer, 5/16" Split
4 2900138 8 Cap Screw, Hex Hd., 5/16-18 x 1"
5 6011333 2 Handle Assembly
6 2900141 1 Hex Nut, 5/16-18
7 2900720 1 Eyebolt, 5/16-18 x 1"
8 2900039 1 Lock Nut, 5/16-18 Nylon
9 2501427 1 Cable Cleat
10 2900483 2 Tap Screw, Flat Hd., #10-24 x 1"
11 6045141 1 Frame Base Stiffener Weldment
12 6045064 1 Frame Base Stiffener Bracket
13 2900084 2 Lock Washer, 1/2" Split
14 2900058 8 Flat Washer, 1/2" SAE
15 2900499 4 Cap Screw, Hex Hd., 1/2-13 x 1-1/2"
16 2900026 4 Lock Nut, 1/2-13 Nylon
17 2900139 2 Cap Screw, Hex Hd., 1/2-13 x 1-3/4"
18 2900820 4 Cap Screw, Flange Hd., 1/4"-20 x 1"
19 6045094 1 Rear Cover Screen
3 4 2 18
19
5
7
15
2
9
8
14
16
17
14
11
14
15
14 16
5
12
6
1
10
13

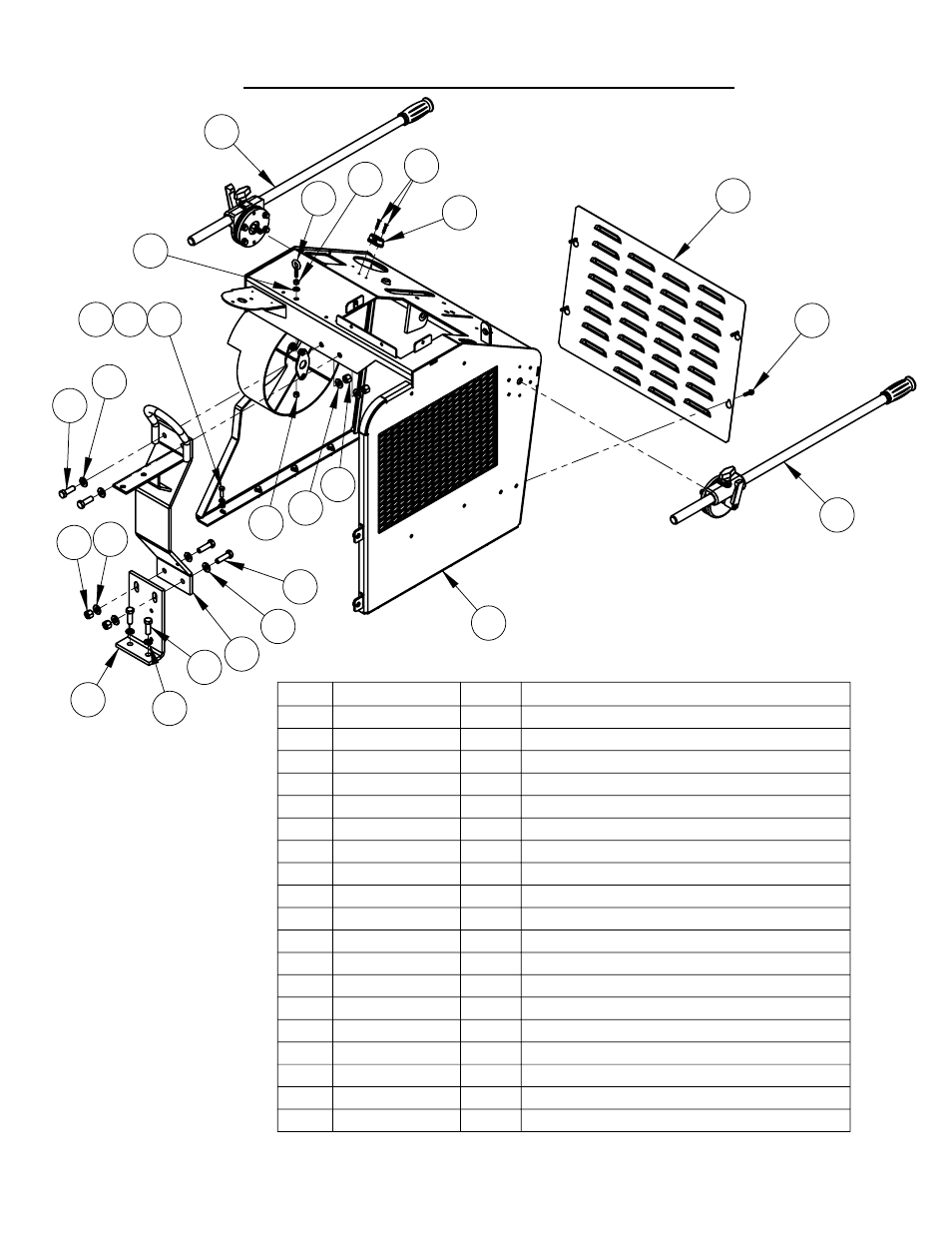

Frame Upright Assembly, Low Profile #6045144
