Diamond Products CC4144D - Manual (Page 20)

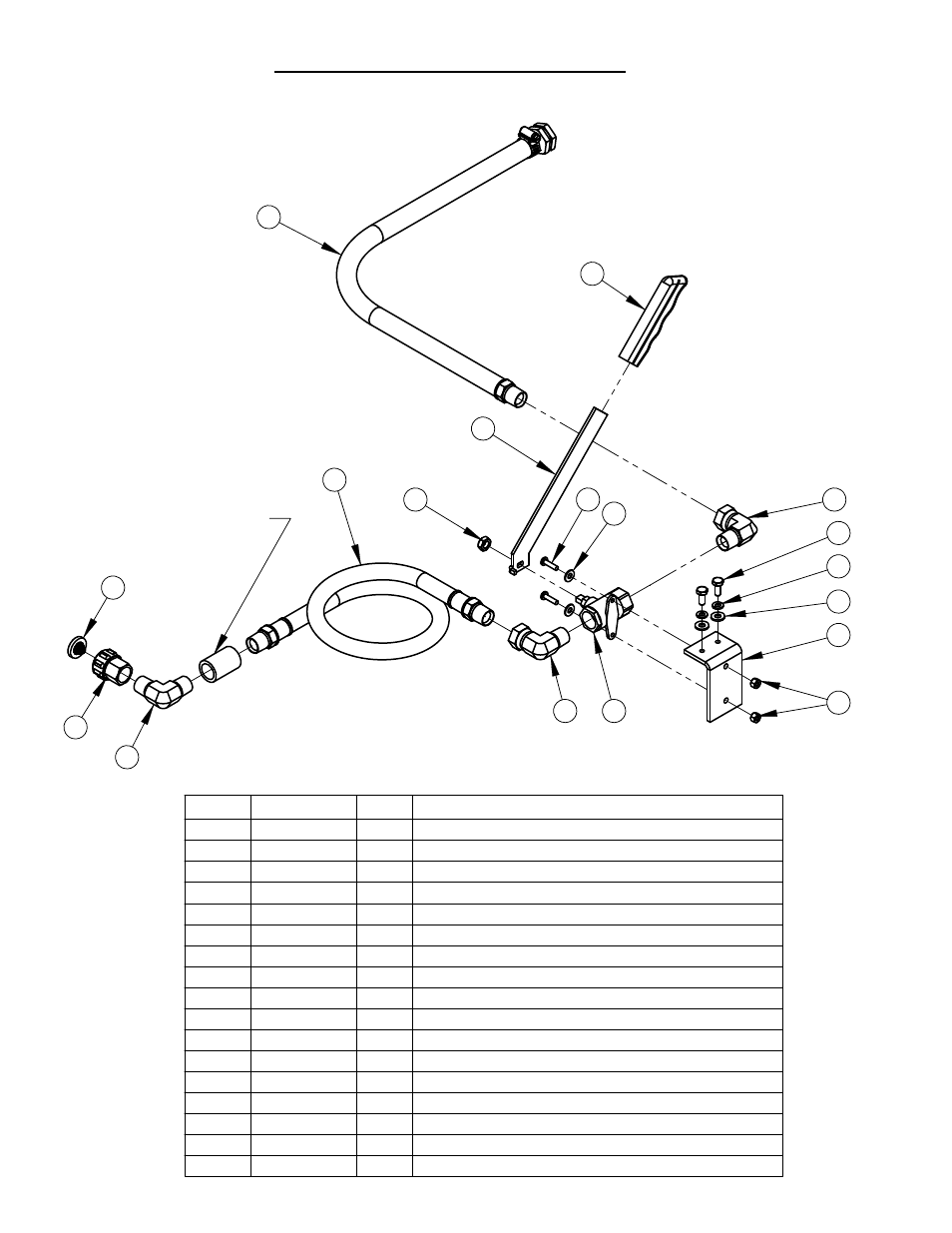

Water Supply Assembly #6045041
ITEM PART NO. QTY. DESCRIPTION
1 3200558 1 Water Valve, 1/2" Panel Mount
2 6011257 1 Water Valve Mounting Bracket
3 2900689 2 Cap Screw, Pan Hd., #10-32 x 3/4"
4 2900016 2 Flat Washer, #10 USS
5 2900688 2 Lock Nut, #10-32 Nylon
6 2900023 2 Cap Screw, Hex Hd., 1/4-20 x 5/8"
7 2900024 2 Lock Washer, 1/4" Split
8 2900009 2 Flat Washer, 1/4" SAE
9 6011256 1 Water Valve Handle
10 2500002 1 Lever Grip
11 2900696 1 Jam Nut, 3/8-24
12 3200399 2 Elbow, 1/2" M. Pipe x 1/2" F. Pipe Swivel
13 6045112 1 Hose Assembly, 1/2" x 72"
14 6045111 1 Hose Assembly, 1/2" x22"
15 3200166 1 Elbow, 1/2" Male Pipe
16 3200022 1 Fitting, 1/2" F. Pipe to 3/4" F. Garden
17 3200025 1 Hose Filter Washer
7
6
12
13
10
9
11
14
15
17
16
12
5
3
4
1
2
8
1/2" Pipe Coupling
Located on Frame
Upright
20
