Diamond Products CC4144D - Manual (Page 22)

ITEM PART NO. QTY. DESCRIPTION
1 6045017 1 Frame Base Weldment
2 6045019 1 Side Cover Weldment
3 6045082 2 Skid Plate Weldment
4 2900022 4 Flat Washer, 5/16" SAE
5 2900031 4 Lock Washer, 5/16" Split
6 2900138 3 Cap Screw, Hex Hd., 5/16-18 x 1"
7 2900019 1 Cap Screw, Hex Hd., 5/16-18 x 3/4"
8 2900014 4 Flat Washer, 3/8" SAE
9 2900006 5 Lock Washer, 3/8" Split
10 2900005 4 Cap Screw, Hex Hd., 3/8-16 x 1"
11 6045204 1 Pointer Extension With Stop
12 6047976 1 Pointer Extension
13 2900058 2 Flat Washer, 1/2" SAE
14 2900026 2 Lock Nut, 1/2-13 Nylon
15 2900139 2 Cap Screw, Hex Hd., 1/2-13 x 1-3/4"
16 6045053 1 Shaft Guard Assembly
17 2900500 1 Thumb Screw, 3/8-16 x 1"
18 6045159 1 Frame Base Side Cover Spacer, Front
19 6045160 1 Frame Base Side Cover Spacer, Rear
20 6045221 1 Rear Pointer Weldment
21 2900028 1 Cap Screw, Hex Hd., 3/8-16 x 2-3/4"

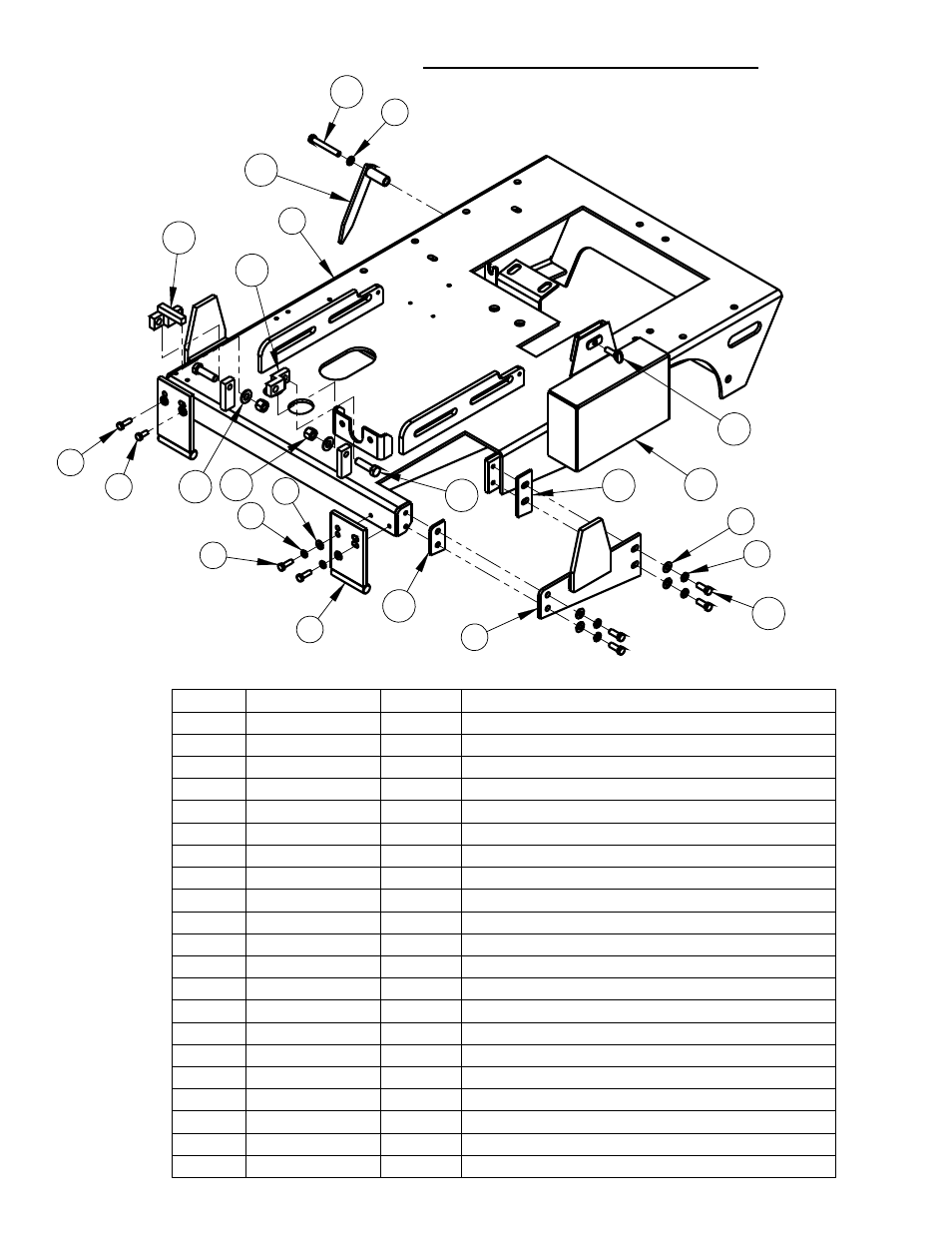

Frame Base Assembly #6045042
7
11
1
3
5
4
6
10
9
8
16
17
12
13 14
15
2
18
19
20
9
21
6
22
