Diamond Products CC4144D - Manual (Page 44)

ITEM PART NO. QTY. DESCRIPTION
1 2505038 1 Radiator Assembly
2 2503917 4 Vibration Isolator
3 2900022 4 Flat Washer, 5/16" SAE
4 2900958 4 Cap Screw, Hex Hd., 5/16-18 x 1/2"
5 2900031 4 Lock Washer, 5/16" Split
6 2900141 4 Hex Nut, 5/16-18
7 6045077 1 Fan Shroud Assembly
8 2900009 10 Flat Washer, 1/4" SAE
9 2900024 4 Lock Washer, 1/4" Split
10 2900082 4 Cap Screw, Hex Hd., 1/4-20 x 1/2"
11 6045102 1 Upper Radiator Hose
12 3202129 1 Lower Radiator Hose
13 3202131 1 Lower Radiator Hose
14 6045098 1 Hose Connection Sleeve
15 3400615 6 Hose Clamp, #20
16 2503916 1 Steel Loop Strap, 1-3/4"
17 2900008 3 Cap Screw, Hex Hd., 1/4-20 x 1"
18 2900010 3 Lock Nut, 1/4-20 Nylon
19 2502624 1 Overflow Tank Assembly
18
1
2
3 4
5
6
7
9
10
15
12
15
14
15
18 8
16
8
17
13
15
15
11
15
19
8 17
8
8
8

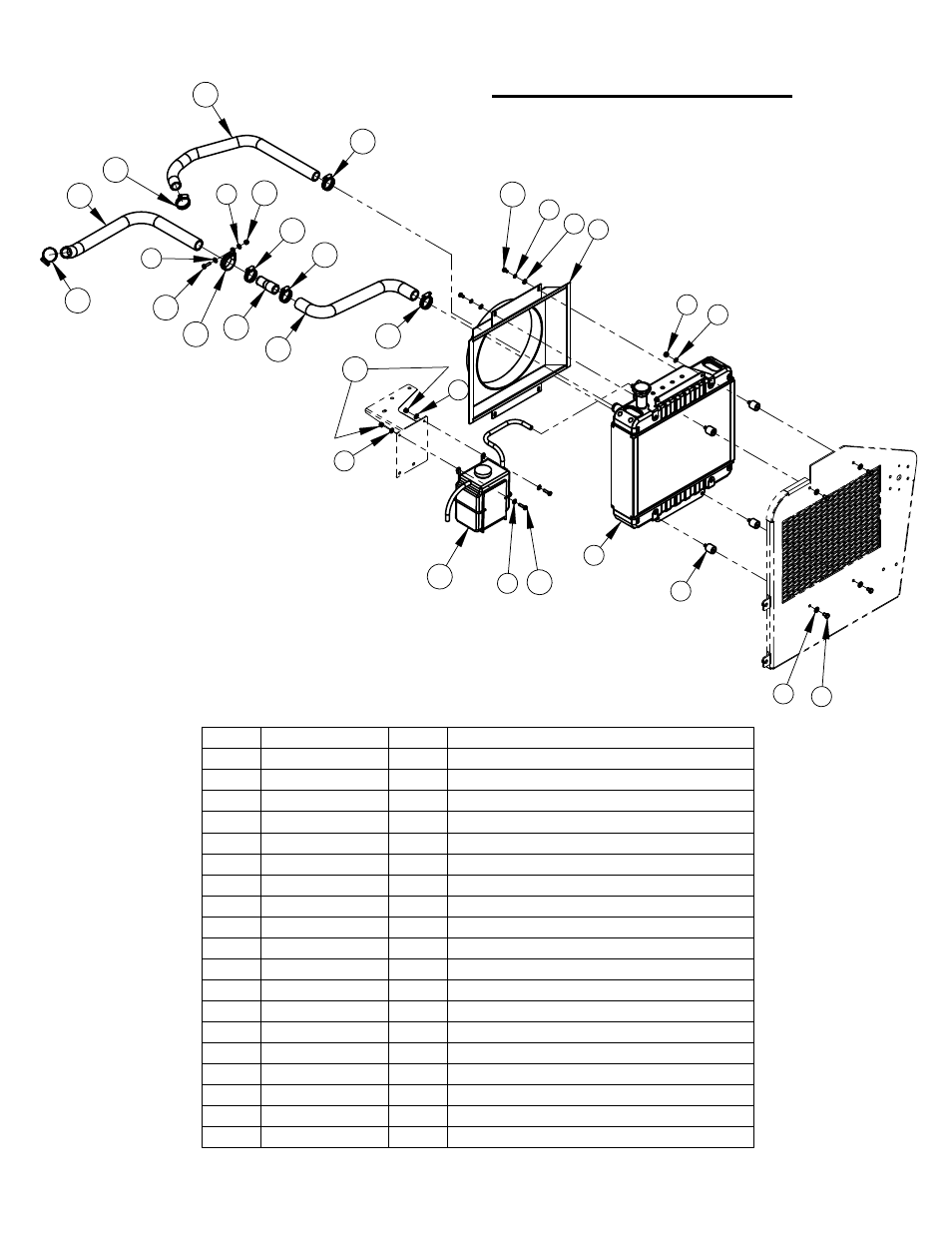

Radiator Assembly #6045037
