Diamond Products CC4144D - Manual (Page 18)

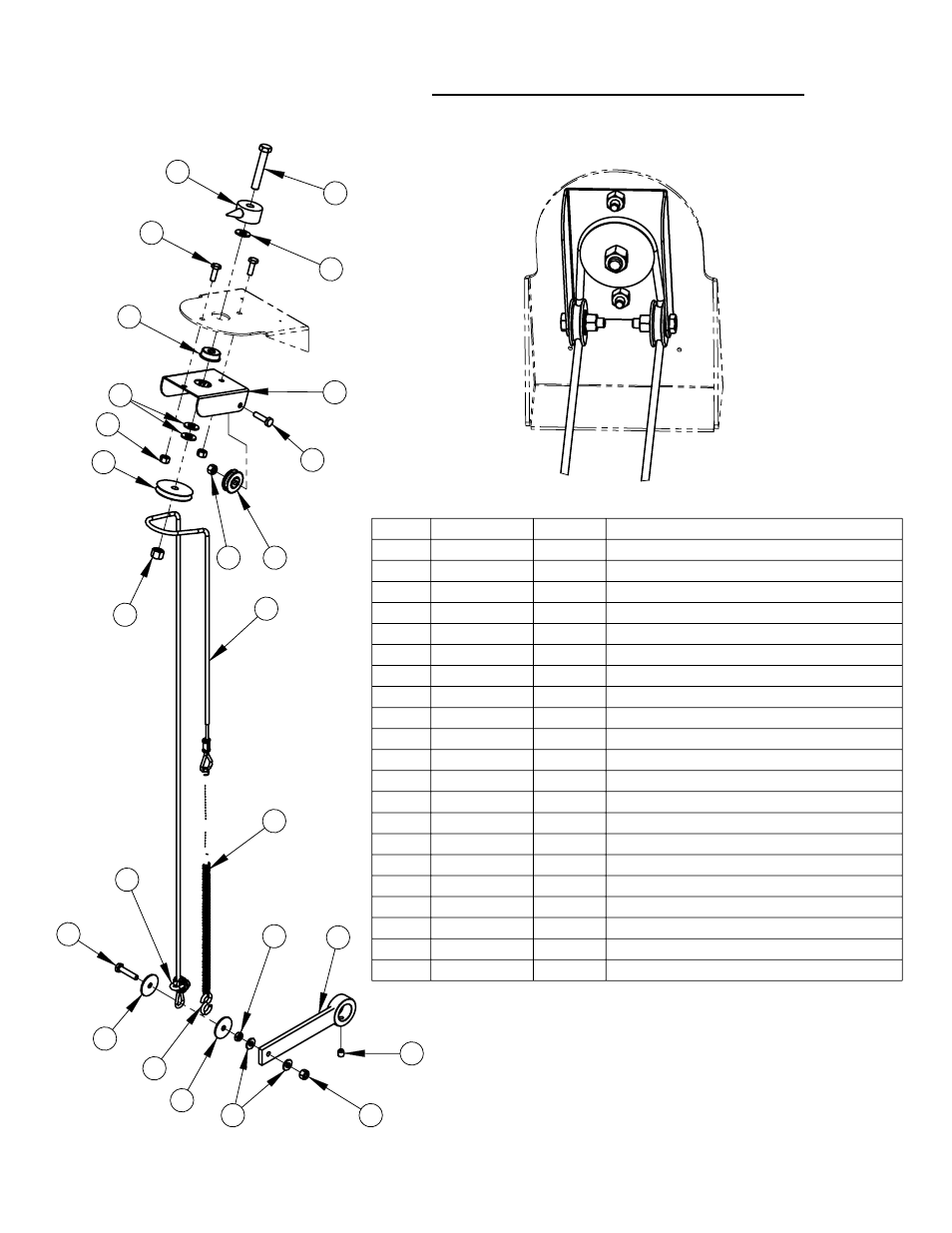

Depth Indicator Assembly #6045024
ITEM PART NO. QTY. DESCRIPTION
1 6010092 1 Depth Indicator Mount Bracket
2 2900079 1 Cap Screw, Hex Hd., 3/8-16 x 2-1/4"
3 6010091 1 Depth Indicator Pointer
4 2900014 3 Flat Washer, 3/8" SAE
5 2500145 1 Flange Bearing, 3/8"
6 6010093 1 Cable Pulley, 2"
7 2900018 1 Lock Nut, 3/8-16 Nylon
8 2900144 2 Cap Screw, Hex Hd., 1/4-20 x 3/4"
9 2900010 5 Lock Nut, 1/4-20 Nylon
10 2900008 2 Cap Screw, Hex Hd., 1/4-20 x 1"
11 2500155 2 Cable Pulley, 1-1/4"
12 6011176 1 Depth Indicator Cable with Crimp, 52"
13 2500196 1 Spring, 3/8" x 15"
14 2501959 1 S-Hook, 60 Lb Load Rated
15 2500214 1 Cable Clamp
16 6045166 1 Depth Indicator Weldment
17 2900052 1 Cap Screw, Hex Hd., 1/4-20 x 1-1/4"
18 2900083 2 Fender Washer, 1/4" x 1-1/4"
19 2900358 1 Jam Nut, 1/4-20
20 2900009 2 Flat Washer, 1/4" SAE
21 2900142 1 Set Screw, Soc. Hd., 5/16-18 x 3/8"
