Diamond Products CC3500J - Manual (Page 8)

(Includes Items #1 - 3 and 8 - 18)

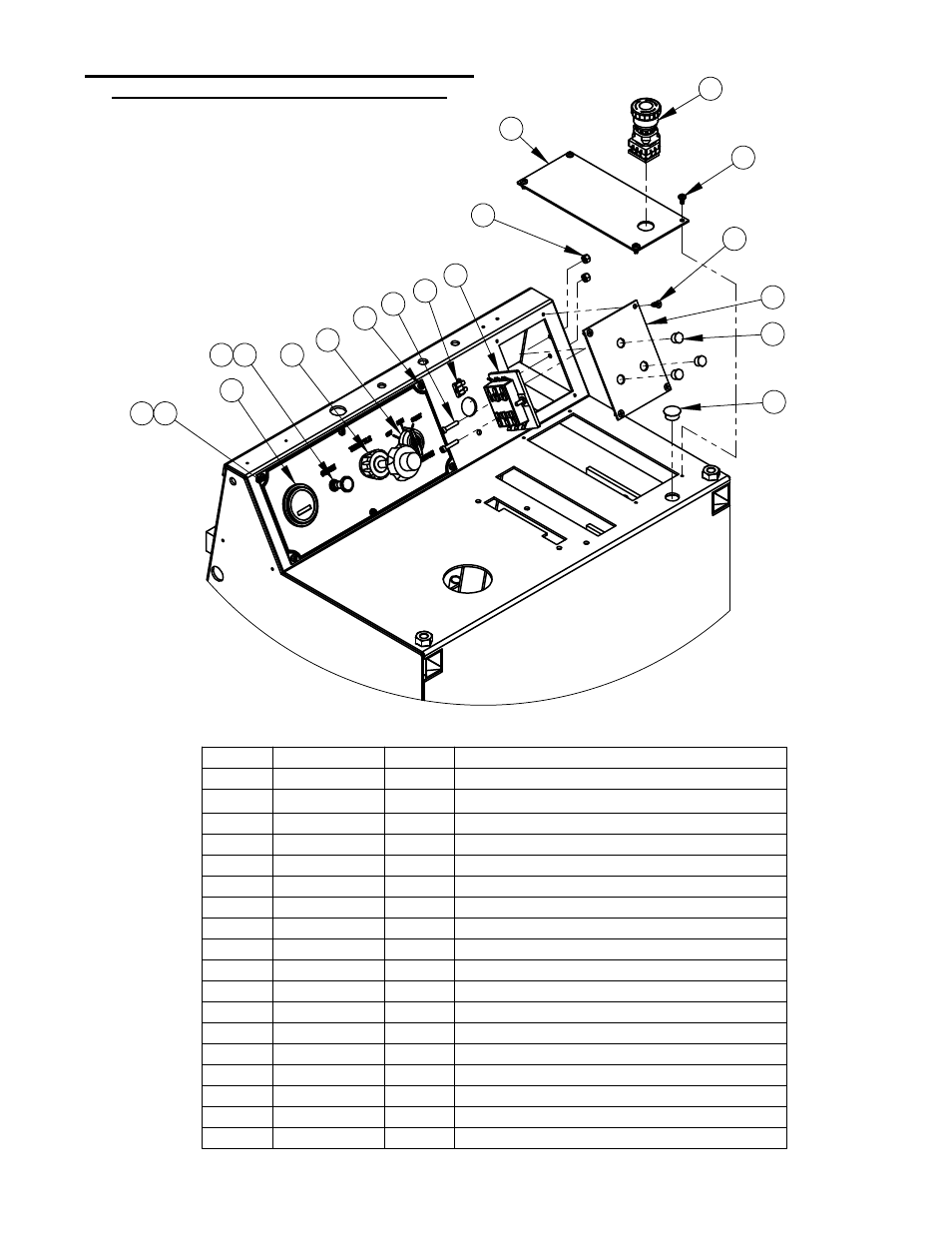

Instrument Panel Assembly #6011381
ITEM PART NO. QTY. DESCRIPTION
1 6011380 1 Gauge Panel
2 1801382 1 Instrument Panel Decal, CC3500J
3 2800064 1 Hour Meter
4 2503832 1 Choke Cable
5 2900148 1 Hex Nut, 3/8-24
6 2503833 1 Throttle Controller
7 2702622 1 Ignition Switch, Briggs Vanguard, 35HP
8 2900021 10 Tap Screw, Pan Hd., #10-24 x 3/8"
9 2800388 1 Fuse Panel, 6 Circuit
10 2800389 6 Fuse, 10 Amp Red ATO/ATC
11 2900913 2 Cap Screw, Soc. Hd., #10-24 x 1"
12 2900017 2 Lock Nut, #10-24 Nylon
13 6011024 1 Hydraulic Pump Cover Plate
14 2801367 1 E-Stop Switch
15 6010098 1 Switch Plate
16 2500204 3 Plug, 1/2" Hole
17 2900445 4 Tap Screw, Flat Hd., #10-24 x 1/2"
18 2500463 1 Plug, 3/4" Hole
2
3
4
8
9
10
11
12
13
14
8
17
15
16
18
5 6
1
7
8
