Kohler engine assembly, Kohler engine assembly…………………… 28 – Diamond Products CC3500J User Manual
Page 28
A
2
3
6
5
8
7
10e
10a
10c 10d 10f 10b
4
1
12
?
11

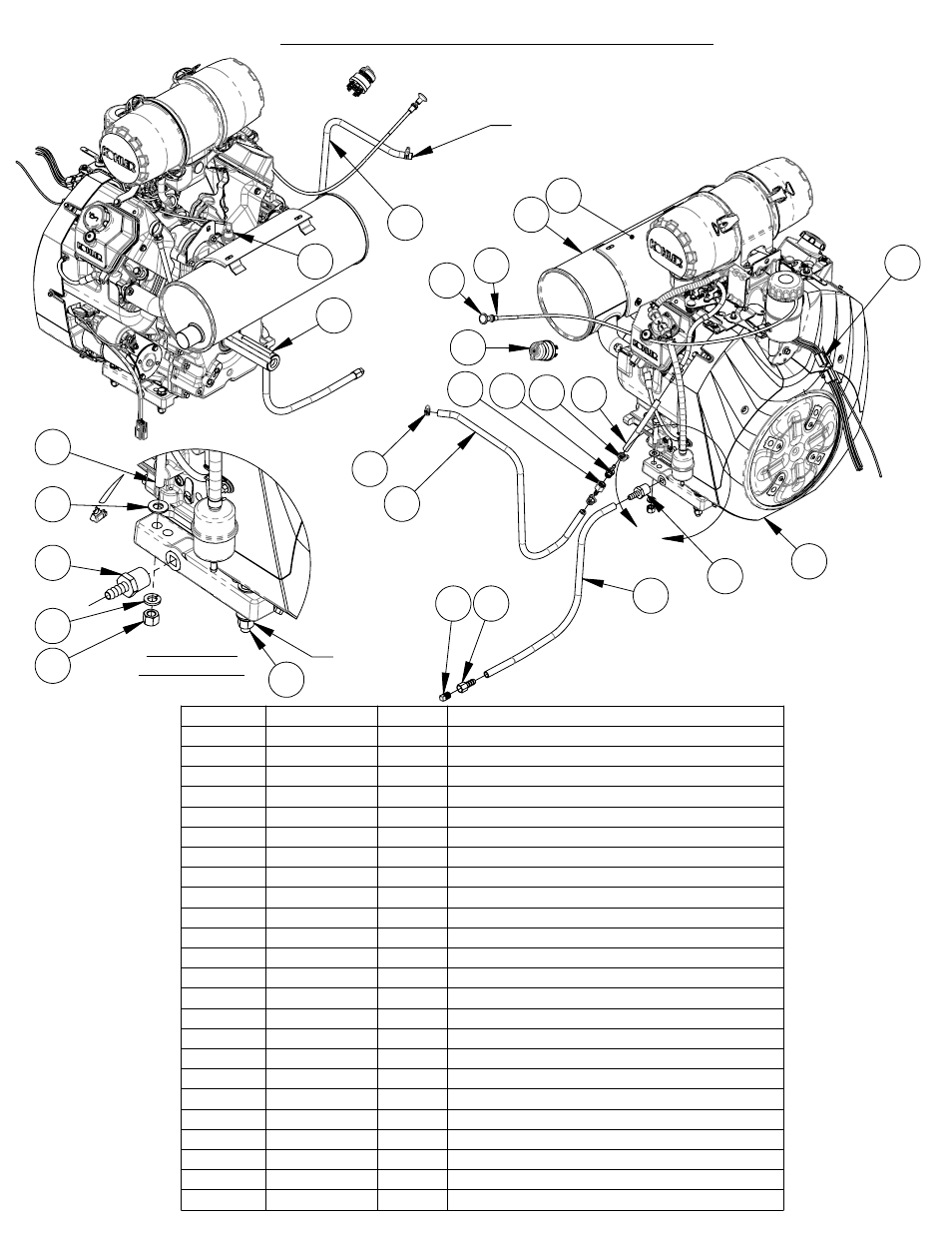

Engine Assembly #6011714 - 40HP Kohler
9
10
To Vent Cap
on Fuel Tank
13
DETAIL A
SCALE 2 : 9
15
14
17
5
16
18
Battery
Ground
ITEM
PART NO.
QTY.
DESCRIPTION
1
2600606
1
Kohler Command 40HP Engine
2
2705825
1
Muffler, Kohler 40HP Engine
3
2705826
1
Heat Shield, Kohler 40HP Engine
4
2705828
1
Engine Wiring Harness
5
3200234
1
Fitting, 1/2" MPT to 3/8" Hose Barb
6
6011736
1
Oil Drain Hose, 3/8" I.D. x 22"
7
3200206
1
Pipe Plug, 1/4" NPT
8
3200031
1
Fitting, 1/4" F. Pipe to 3/8" Hose Barb
9
6011027
1
Key, 3/8" Sq. x 3-1/4" Bevel End
10
6012195
1
Vent Hose Assy., 1/4" - 3/16"
10a 6012195A
1
1/4 Hose
10b 6012195B
1
3/16 Hose
10c
3200231
1
Fitting, 1/4 FPT to 1/4 Hose Barb
10d
3200210
1
Hose Barb, 1/4" M. Pipe to 3/16" Hose
10e
3200390
1
Hose Clamp #6
10f
3200062
2
Hose Clamp #4
11
2705827
1
Ignition Switch, Kohler, 40HP
12
2500186
1
Choke Cable
13
2706087
1
Oil Pressure Sender
14
2900060
3
Cap Screw, Hex Hd., 3/8-16 x 2"
15
2900079
1
Cap Screw, Hex Hd., 3/8-16 x 2-1/4"
16
2900006
4
Lock Washer, 3/8" Split
17
2900014
5
Flat Washer, 3/8" SAE
18
2900018
4
Lock Nut, 3/8-16 Nylon
28
