2900412
FOR RH THREADED
BOLTS ONLY
2901569
FOR LH THREADED
BOLTS ONLY
1.2" 1"
*
NOTE
12
10
11
4
9
5
6
7
8
2
1
3
2
5
6
7
8
9
14
13
10
4
15
*
*

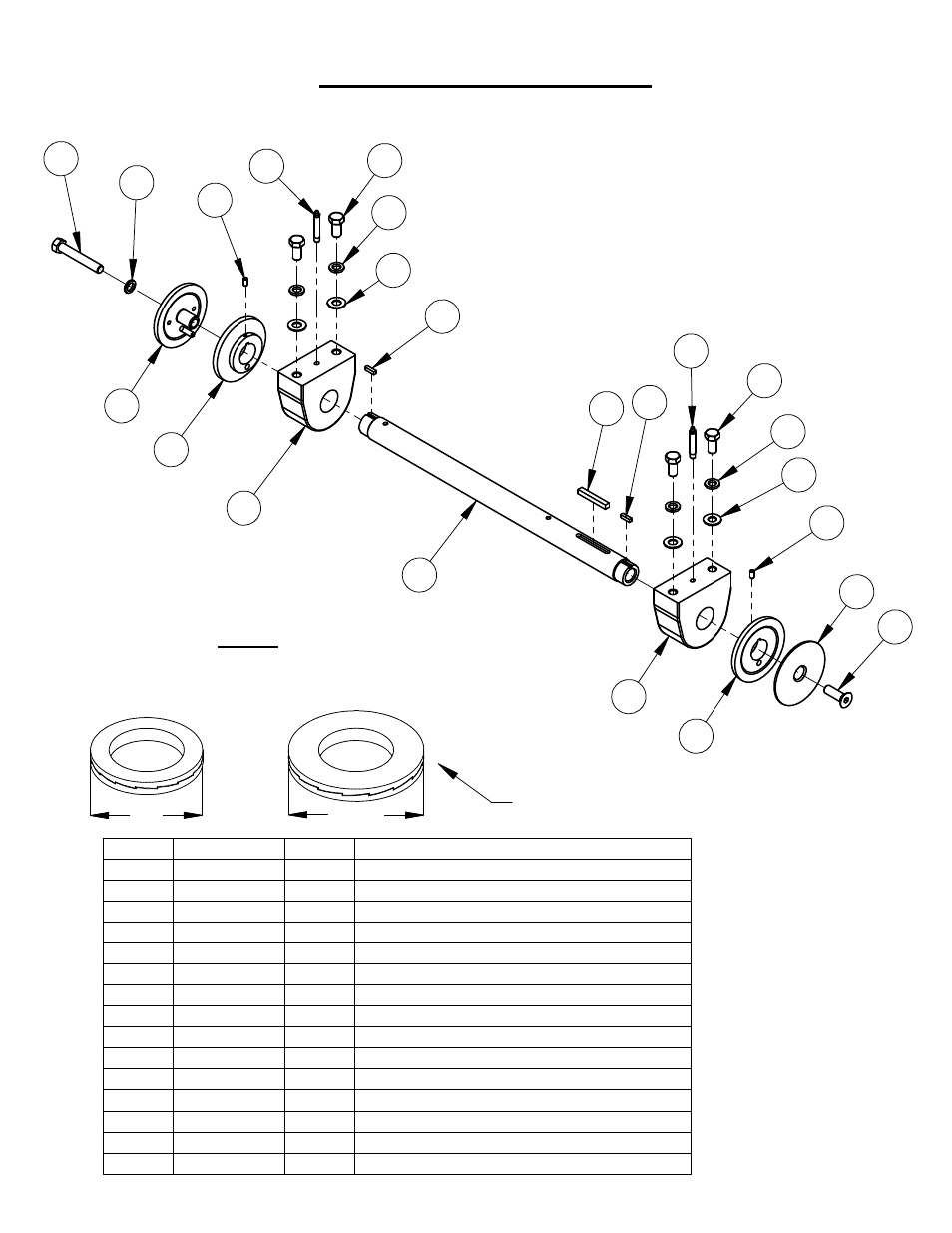

Blade Shaft Assembly #6011735
#6011728 page
Belt Guard Assembly
* 2900412 Shown on
ITEM PART NO. QTY. DESCRIPTION
1 6011002 1 Blade Shaft
2 6010040 2 Key, 1/4" Sq. x 15/16"
3 6011058 1 Key, 3/8" Sq. x 2-3/4"
4 2500151 2 Blade Shaft Bearing, 1-3/4"
5 2900709 2 Grease Fitting, 1/8" NPT x 2-5/8"
6 2900512 4 Cap Screw, Hex Hd., 5/8-11 x 1-1/4"
7 2900113 4 Lock Washer, 5/8" Split
8 2900002 4 Flat Washer, 5/8" SAE
9 2900418 2 Set Screw, Soc. Hd., 5/16-18 x 5/8"
10 6010255 2 Inner Flange 5"
11 6047907 1 Outer Flange 5" with Pin
12 2900130 1 Cap Screw, Hex Hd., 5/8-11 x 4" LH
13 6010765B 1 Flange Cover, 5" O.D.
14 2900711 1 Cap Screw, Flat Hd., 5/8-11 x 2"
15 2901569 1 Lock Washer, Wedge 5/8" LH
