Briggs engine assembly, Briggs-vanguard engine assembly…………29 – Diamond Products CC3500J User Manual
Page 29
11a
2
10
6
7
8
7
9
1
3
4
5
11d
11c
11b
12
13
14
19
18
15
16
25
23

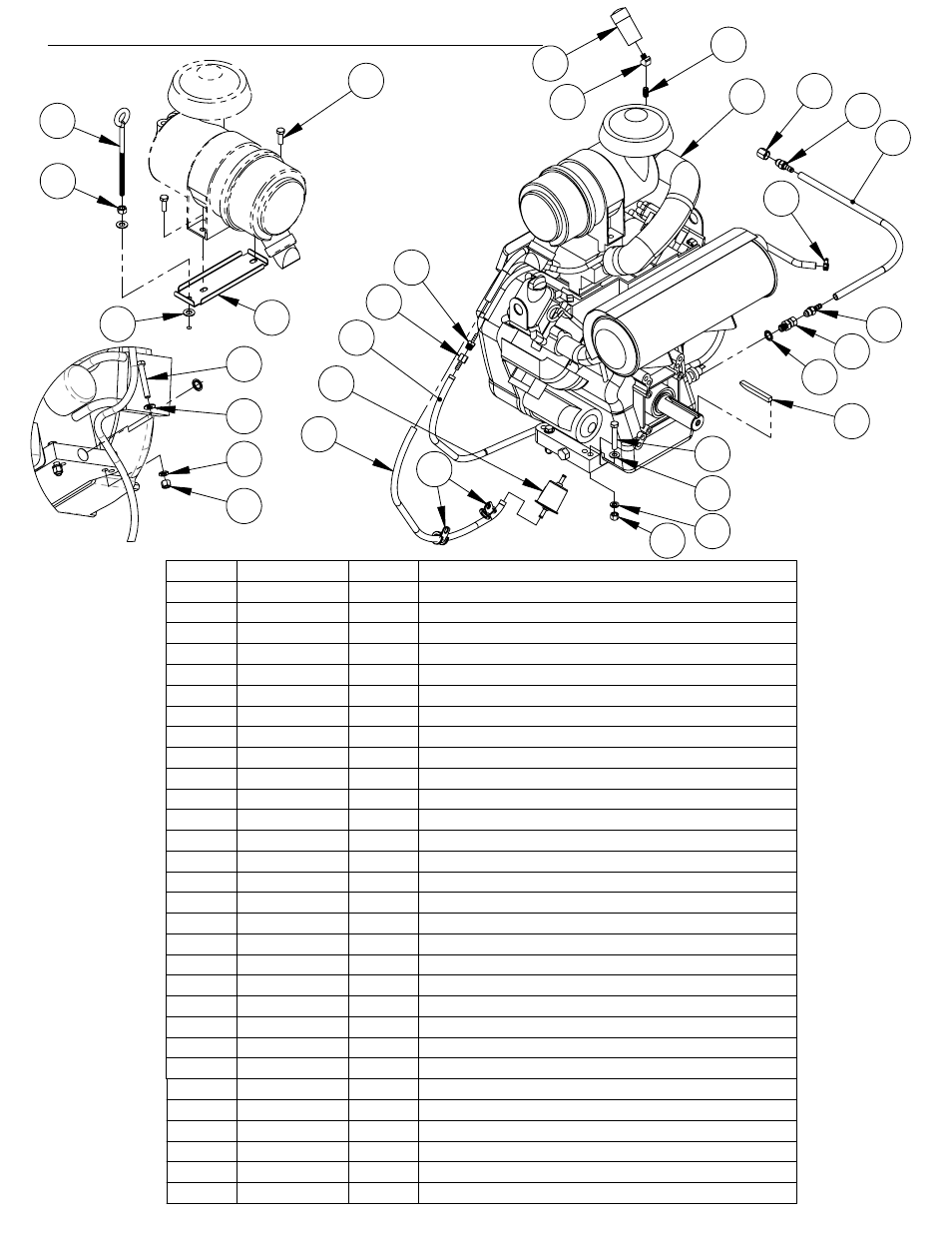

Engine Assy. #6011732 - 35HP Briggs/Vanguard
22
24
21
17
15
18
19
Right-Rear
Corner
(Battery Ground)
ITEM
PART NO.
QTY.
DESCRIPTION
1
2600635
1
Briggs Vanguard Engine, 35 HP
2
6011027
1
Key, 3/8" Sq. x 3-1/4" Bevel End
3
3200117
1
Close Nipple, 1/8" NPT
4
3200099
1
Street Elbow, 1/8" NPT x 45 Deg.
5
2500423
1
Restriction Indicator
6
3201890
1
Fitting, M14 x 1.5 O-Ring to 3/8" F. JIC Swivel
7
3201891
2
Fitting, 3/8" M. JIC to 3/8" Hose Barb
8
6011736
1
Oil Drain Hose, 3/8" I.D. x 22"
9
3201496
1
Cap, 3/8" JIC
10
2901319
1
Bonded Sealing Washer, M14
11
6012203
1
Vent Hose Assy.,1/4 - 3/16" Barb
11a 6012203A
1
1/4 Hose
11b 3200231
1
Fitting, 1/4 FPT to 1/4 Hose Barb
11c 3200210
1
Hose Barb, 1/4" M. Pipe to 3/16" Hose
11d 3200390
1
Hose Clamp #6
12
6011749
1
Fuel Line, 33" Briggs 35HP
13
2501434
2
Hose Clamp, 5/8" x 3/4" Wide
14
2500201
1
Filter, Gasoline Fuel (Replacement Part)
15
2900014
4
Flat Washer, 3/8" SAE
16
2900079
3
Cap Screw, Hex Hd., 3/8-16 x 2-1/4"
17
2900596
1
Cap Screw, Hex Hd.,3/8-16 x 2-1/2"
18
2900006
4
Lock Washer, 3/8" Split
19
2900018
4
Lock Nut, 3/8-16 Nylon
20
6049053
1
Remote Wire Harness Extension (Not Shown)
ITEM
PART NO.
QTY.
DESCRIPTION
21
6043610
1
Eyebolt Mount, 35 HP Briggs Vanguard
22
2900360
2
Cap Screw, Hex Hd., M8 x 25mm
23
2900602
1
Eye Bolt, 3/8-16 x 6"
24
2900014
2
Flat Washer, 3/8" SAE
25
2900033
1
Hex Nut, 3/8-16
29
