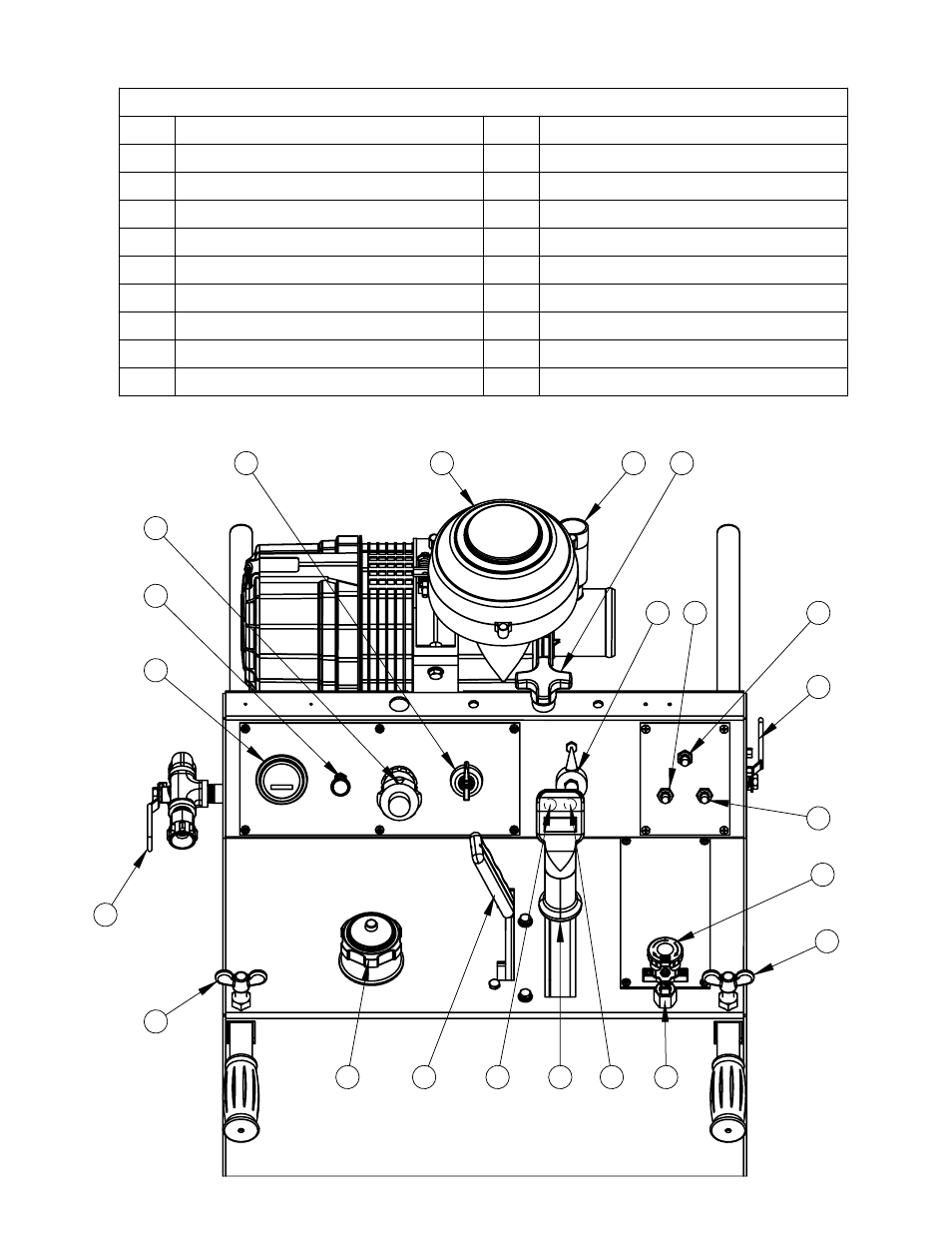

Controls Legend
1 Hour Meter 11 Spotlight Switch (Optional)
2 Choke Control 12 Water Valve
3 Vernier Throttle Cable 13 Emergency Stop Button
4 Ignition Switch 14 Handle Lock Knobs
5 Pre-Cleaner 15 Lowering Speed Meter Valve (Optional)
6 Air Cleaner Restriction Indicator 16 Speed Control Lever
7 Depth Stop Knob 17 Raise Pushbutton
8 Cutting Depth Indicator 18 Lower Pushbutton
9 Water Pump Swtch (Optional) 19 Transmission Engagememnt Lever
10 Water Safety Switch (Optional) 20 Fuel Tank Cap
14
12
1
2
3
4 5 6 7
8 10 9
12
11
13
15
14
19 20 16 18 17
