Safety Signs and Labels
It is important to provide warnings to alert individuals to potential hazards and safety actions. ANSI Z83.19
and the National Fuel Gas Code require you to post a sign “specifying the maximum permissible stacking
height to maintain the required clearances from the heater to the combustibles” near the heater’s
thermostat or in absence of such thermostats in a conspicuous location. Signs should state the hazards
for the particular application and be legible to the building occupants. Consult the factory or a factory
representative for additional information on signage compliance.

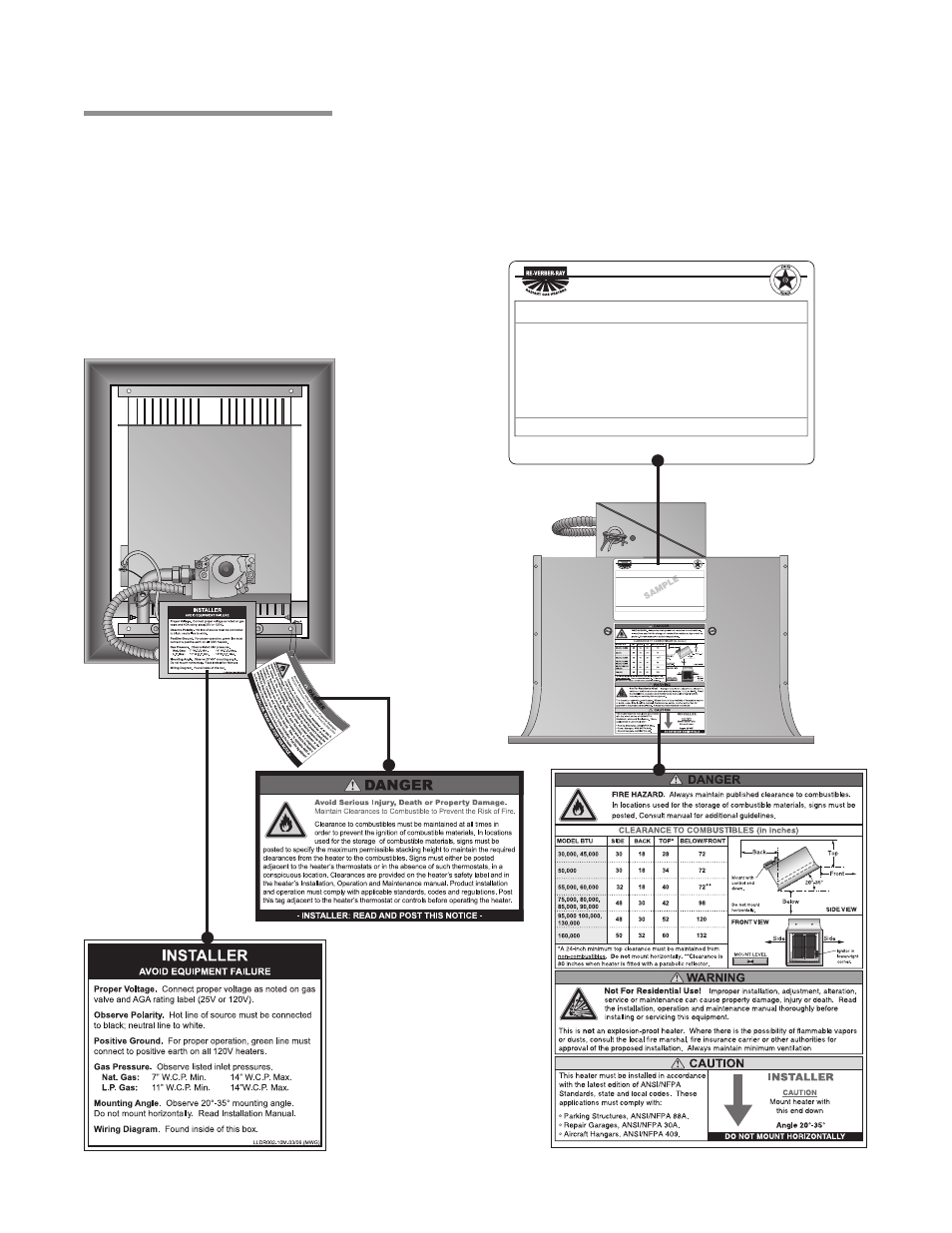

Safety warning labels must be maintained on the
infrared heater. Illustrations of the safety labels,
and their locations, are pictured below.
1.0 Safety • Safety Signs and Labels
Back View
Bottom View
F/N: LLDCL002
Clearance to Combustibles Label
SAMPLE
®
DETROIT RADIANT PRODUCTS COMPANY
21400 HOOVER ROAD - WARREN, MI
RE-VERBER-RAY INFRA-RED RADIANT HEATER
FOR OUTDOOR USE AND INDOOR (Non-Residential) INSTALLATION ONLY.
High - Intensity Infrared Heater
Class IIIA Permanent Label
(586) 756-0950 - www.drp-co.com
Volts AC:
AMPS - Starting:
AMPS - Running:
Heater Type:
120V - 60Hz
0.1
0.1
C1
DESIGN COMPLIES WITH:
ANSI Z83.20-2001-GAS FIRED LOW INTENSITY INFRA-RED HTR.
Manifold Pressure:
Maximum Inlet Pressure:
Minimum Inlet Pressure:
6.0 in.
14 in.
7.0 in.
W.C.P.
W.C.P.
W.C.P.
Serial No. 08 07 DRPC 123456 0001
MODEL NO.
DR60-NFS-2 120
Heater Type
Minimum Mounting Angle:
Maximum Mounting Angle:
C1
20
35
DEGREES
DEGREES
INPUT BTU/H
60,000
FOR USE WITH
Natural Gas
VERSION
05/97
Rating Plate
F/N: LLDR002
F/N: LL01 - Clearance
Safety Tag
(Affix adjacent to
heater’s thermostat)
