Detroit Radiant Products Company DES3 Series - Manual (Page 20)

Chart 5.2 • Kit Contents for DES3 Series - Reference the length column for your model.
Kit Contents Check List
20
© 2014 Detroit Radiant Products Co.
21400 Hoover Road • Warren, MI 48089
Phone: 586-756-0950 • Fax: 586-756-2626
www.detroitradiant.com • [email protected]
Printed in U. S. A.
5.0 Parts • Kit Contents Check List DES3 Series
Approvals
• CSA
• Commercial approval.
• Industrial approval.
• 1 year - Burner box components.
• 2 years - Combustion and radiant tubes.
• 3 years - Stainless steel burner.
• See page 36 of the Tube Heater General Manual
for Terms and Conditions.
Limited Warranty
General Manual and
DES3 Series Insert
F/N: LIOGT3 & LIODES3
*One 4” stainless steel tube clamp (P/N: TP-220) is provided for each 150,000 - 200,000 BTU model. Place as
shown on page 11.
TP-105 Reflector End Cap TP-21B 4” Tube Clamp
TP-106 Reflector
End Cap Clips
TP-83 24 in. Stainless
Steel Flex. Gas Connector

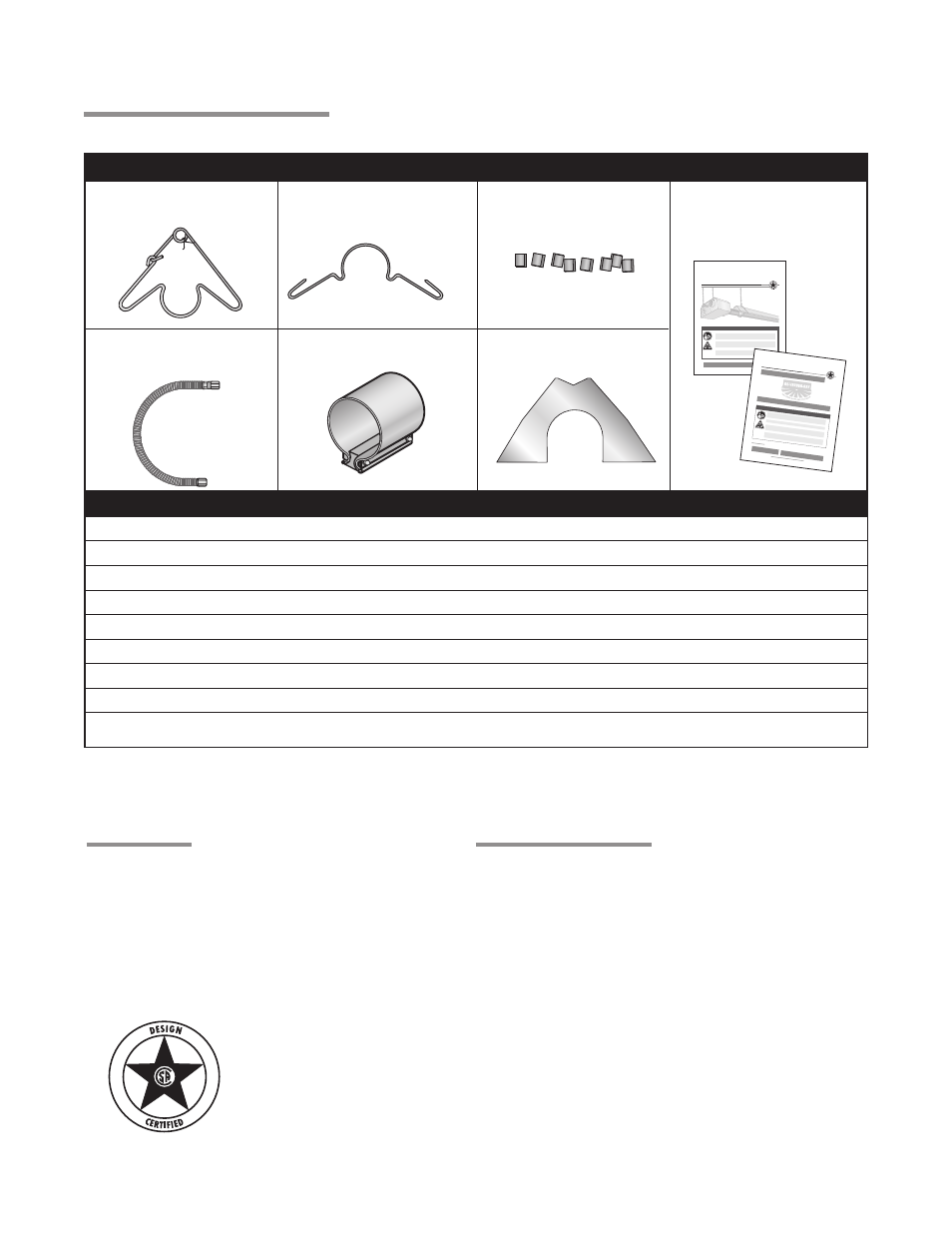

DES3 Series Kit Contents
TP-82 4 in. Reflector
Center Support (RCS)
Tube Heater
General Manual
DES3 Series
Insert Manual
TP-19B 4” Hanger with
Reflector Tension Spring
Part No. Description 20 ft. 30 ft. 40 ft. 50 ft. 60 ft.
TP-19B 4 in. Wire Hanger 3 4 5 6 7
TP-21B 4 in. Tube Clamps 2 3 4 5* 6*
TP-82 4 in. Reflector Center Support 1 1 1 1 1
TP-83 24 in. S.S. Flexible Gas Connector 1 1 1 1 1
TP-105 Reflector End Caps 2 2 2 2 2
TP-106 Reflector End Cap Clips 8 8 8 8 8
LIOGT3 Tube Heater General Manual 1 1 1 1 1
LIODES3 DES3 Series Insert Manual 1 1 1 1 1
