DES3 Series 5.0 Parts • Heater Components and Parts List
5.0 Parts
Chart 5.1 • Parts List

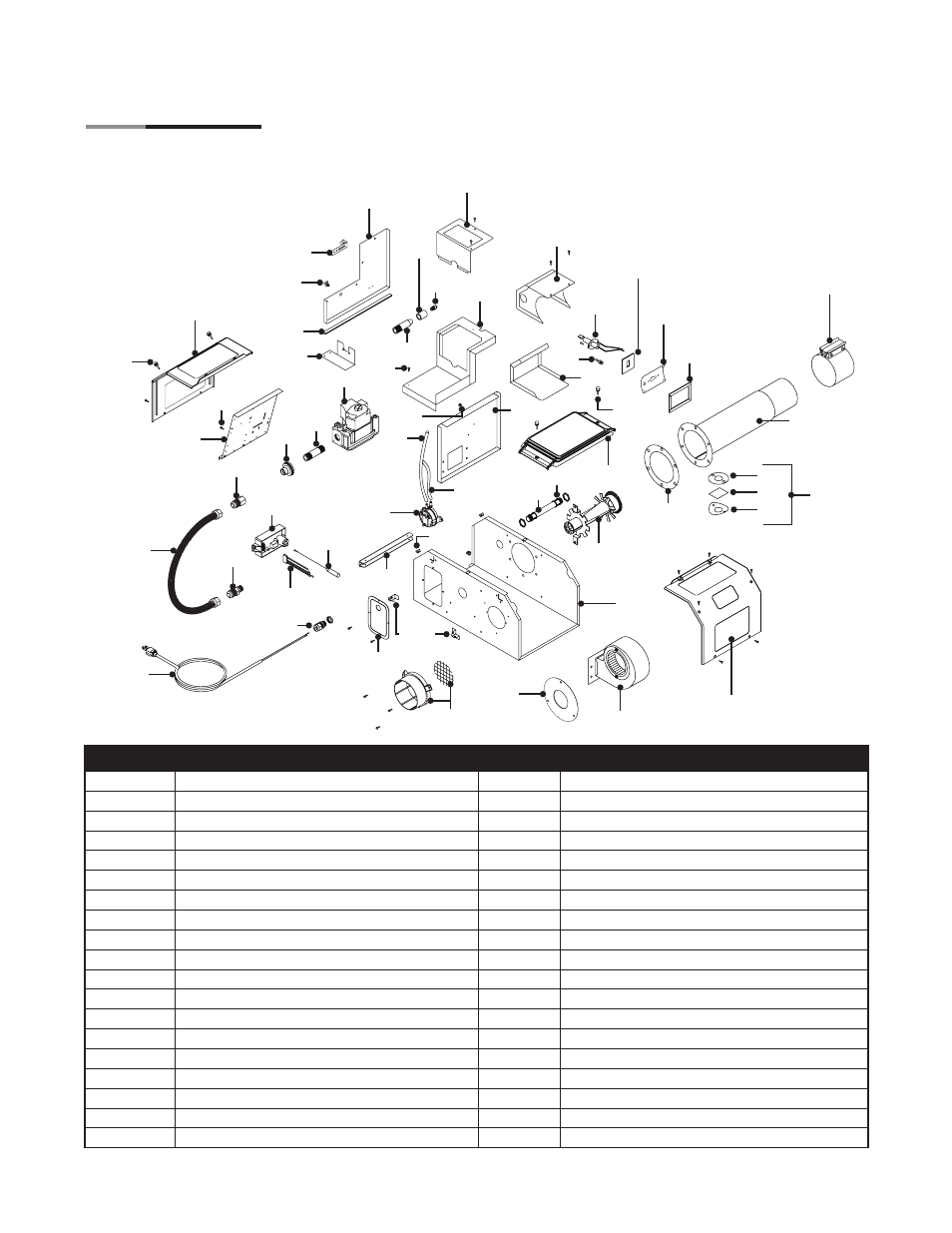

Figure 5.1 • Burner Assembly Components
21B
15
14
16
17
583
221
3055
3012
3011
204
3097A
3098
3008
3002A
3099 76
212
3040, 3041
3072, 201B
3005A
5
1018
3001
3004
3014
55A, 3215
3003A
3051
3052
550
31D
68B
3010
219
83
3580
3033A
3096A
333
321
217
3093
70A 3060
Part # Description Part # Description
TP-5 Flange Gasket TP-70A 1 in. Control Box Gasket (6 inches)
TP-9 Conduit Coupling TP-76 Rubber Grommet
TP-10A Conduit TP-82 Reflector Center Support
TP-14 Sight Glass Gasket TP-83 Stainless Steel Flexible Gas Connector
TP-15 Sight Glass TP-84 1/2 in. Female/Male Flare Fitting
TP-16 Sight Glass Washer TP-85 1/2 in. Male / Male Flare Fitting
TP-17 Sight Glass Kit TP-105 Reflector End Cap
TP-19B 4 in. Wire Hanger with Tension Spring TP-106 Reflector End Cap Clips (8 pcs.)
TP-20C 10 ft. Aluminum Reflector TP-113 Reflector Tension Spring
TP-20D* 10 ft. Stainless Steel Reflector* TP-201B V.3 Mid-High Burner (Color Code - TAN)
TP-21B 4 in. O.D. Tube Clamp TP-204 Gas Orifice - consult factory
TP-26A 10 ft. Aluminized Combustion Tube TP-212 1/2 in. x 3 in. Pipe Nipple
TP-26B 10 ft. Titanium Primary Combustion Tube TP-217 Brass Pressure Switch Barb Fitting
TP-26C 10 ft. Uncoated Hot Rolled Radiant Tube TP-219 Differential Vinyl Sensing Tube
TP-31D Mounting Bracket (Qty. 2) TP-220 4 in. O.D. Stainless Steel Tube Clamp
TP-55A 1/20 hp Inducer Assembly (50-150 MBH) TP-221 Spark Igniter Mounting Bracket Gasket
TP-65I 36 in. Interlocking Turbulator Baffle Section TP-245 3/16” X 1/8” Plastic Gas Valve 90° Vent
TP-68B Large Strain Relief Bushing TP-264D Differential Pressure Switch, 60 to 75 MBH
TP-70 1/2 in. Control Box Gasket (10.3 inches) TP-264E Differential Pressure Switch, 50 MBH
* Optional upgrade or add-on item.
245
85
3094
70
332
3044
331
331
264D/E/F,
1264A
84
3094
9
10A
3216
