19
Operation
Dirt hopper guiding rail (Fig. 6/1)
The dirt hopper located at the cylindrical
brush deck is fastened by a guiding rail.
This dirt hopper may be easily removed
for cleaning.
Lever for cylindrical brush seating
(Fig. 6/2)
This lever (both sides) is used to re-
lease/lock the cylindrical brush seating.
The cylindrical brushes may be easily
removed without tools.
Swing aside squeegee
Swing the squeegee aside in lifted posi-
tion to allow passage through narrow
clearances. This can be done by foot or
by hand by swinging the squeegee to
the left in the area of the deflector bail /
roller bumper until the locking pin (Fig.
6/3) catches. In order to release locking
of the squeegee, actuate the hand lever
(Fig. 5/3) of the squeegee lift mecha-
nism (lowering).

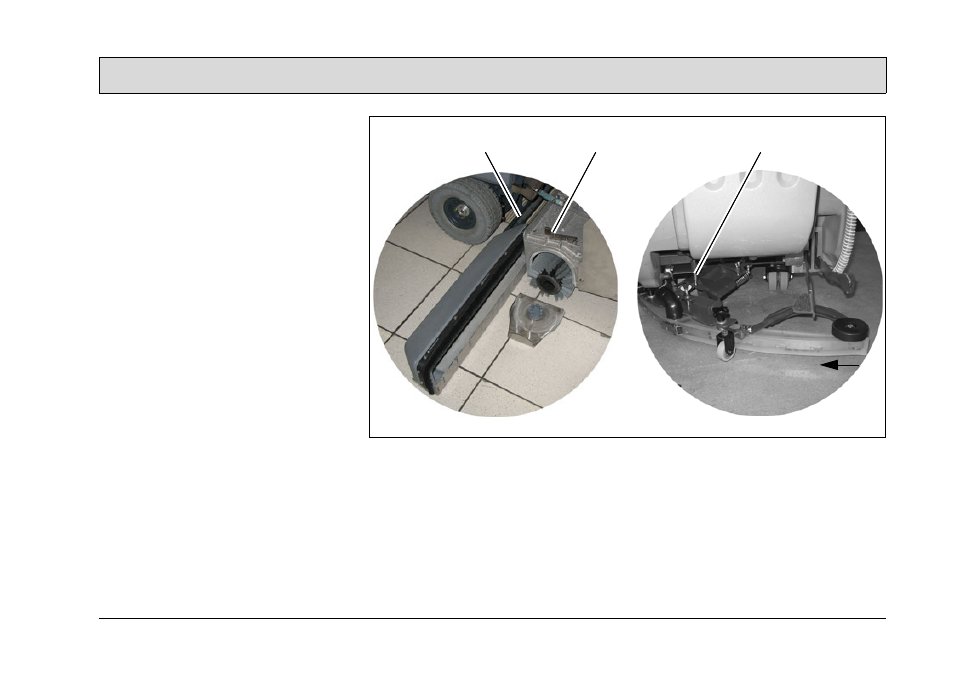

Fig.6 1 Dirt hopper guiding rail
2 Lever for cylindrical brush seating
3 locking pin
1 2 3
