5.8 CLEANING THE NOZZLE AND FILTER
DETERGENT SOLUTION SUPPLY TO
THE DISC BRUSH
1. Ascertain that the wash-and-dry machine cannot
move autonomously.
2. Remove the brush (See procedure in the related
paragraph).
3. By acting on the coupling hub (1, Figure 5-8) of the
brush, unscrew the ring nut (2) and recover the
nozzle (3) and the gasket (4).
4. Remove the filter from its seat (5).
5. Clean the nozzle (3) and the filter (5).
6. Replace the filter correctly (5) in its case.
7. Place the nozzle (3) and the gasket (4) in their seat
and then screw the ring nut (2).
8. Replace the brush (See the procedure in the related
paragraph).

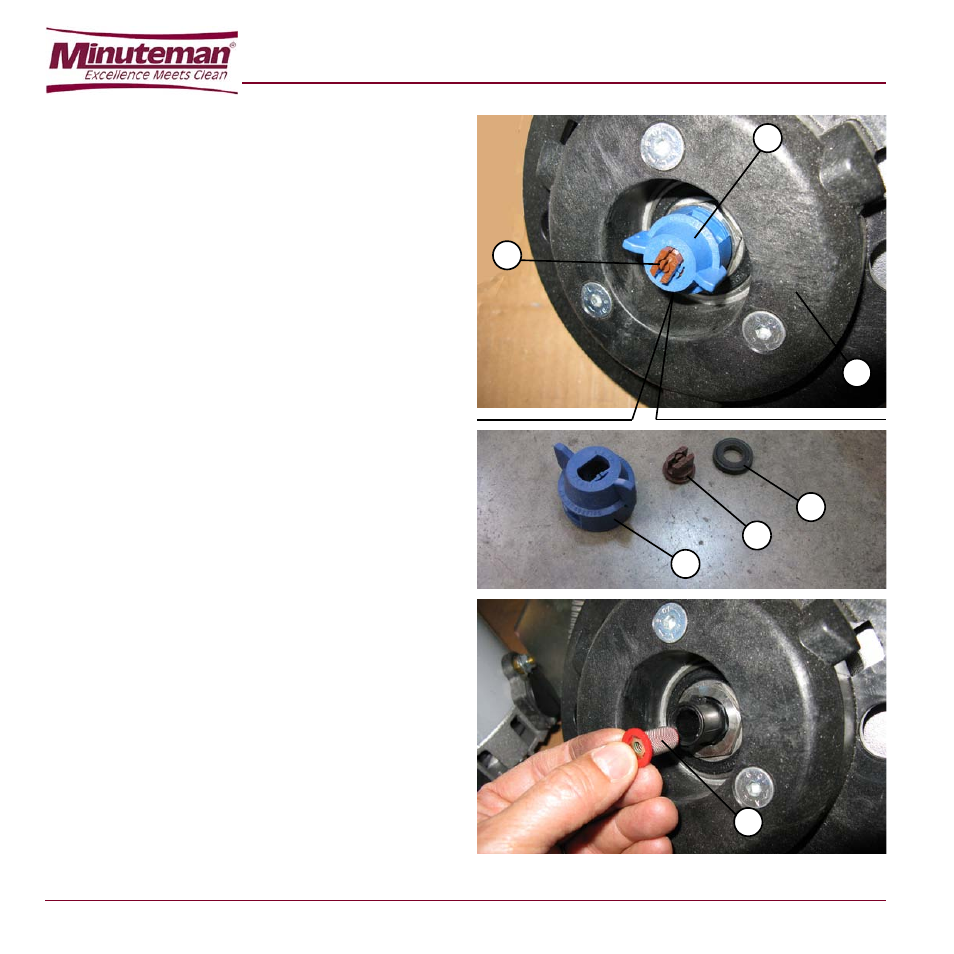

Figure 5-8
2
1
3
2
3
4
5
