5.4 HEIGHT ADJUSTMENT OF
SQUEEGEE
– The adjustment of the squeegee height is necessary
when the wash-and-dry machine does not provide
correct drying, leaving trails of water in the central or
external parts.
1. To adjust the squeegee height, loosen the nuts (1,
Figure 5-3) and adjust the left and right wheel height
(2).
2. At the end of the adjustment, tighten the nuts.
5.5 BRUSH CLEANING
1. If necessary, remove the disc brush (See procedure
in the related paragraph).
2. Wash and clean the disc brush (1, Figure 5-4) from
dirt and debris
3. If removed, replace the disc brush (See procedure in
the related paragraph).
4. The disc brush must be replaced for excessive wear
and tear, when in the lowered brush condition, the
lateral pins (2, Figure 5-4) lean on the lower ends (3)
of the slots.

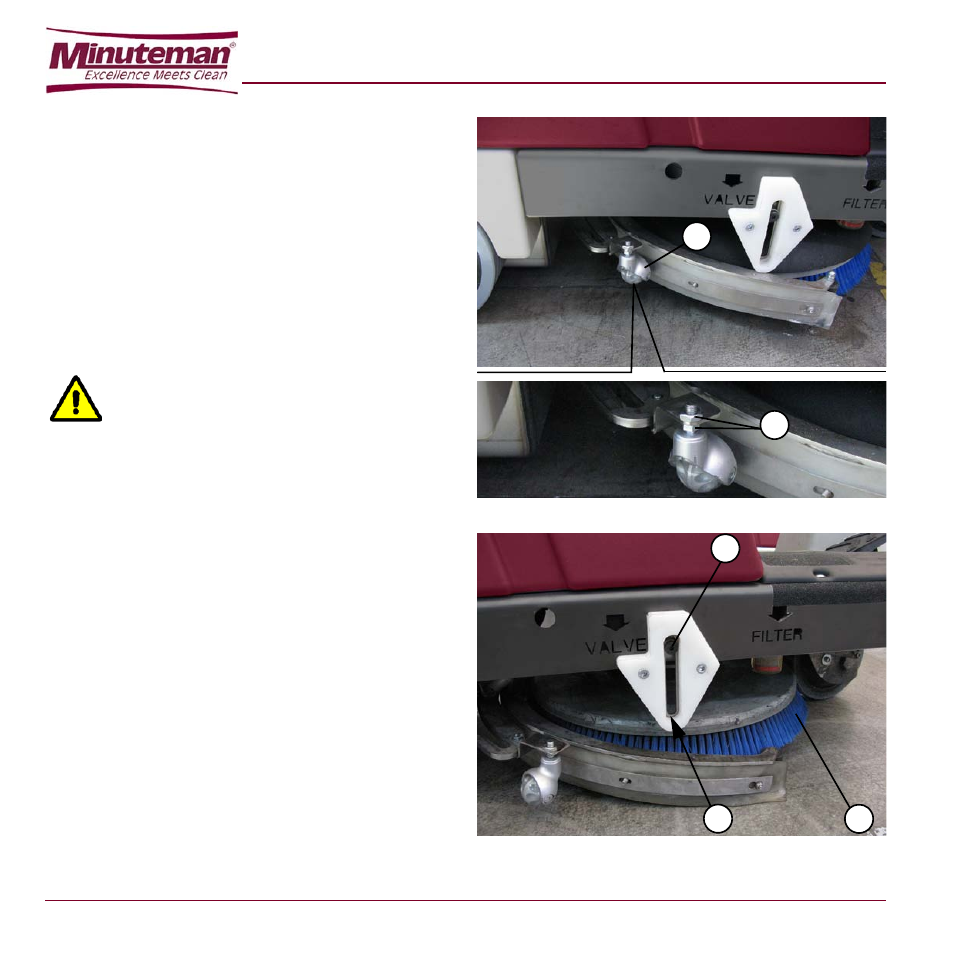

Figure 5-3
Figure 5-4
CAUTION!
It is advisable to use protective gloves when
cleaning the disc brush because there can be
cutting debris.
