XBDM USER’S MANUAL BYPASS DISTRIBUTION MODULE
Xtreme Power Conversion Corporation (Rev 8/29/13) Page 7
• Under normal operation, the UTILITY INPUT flows through the XBDM to the UPS and then out to
the CONNECTED LOADS.

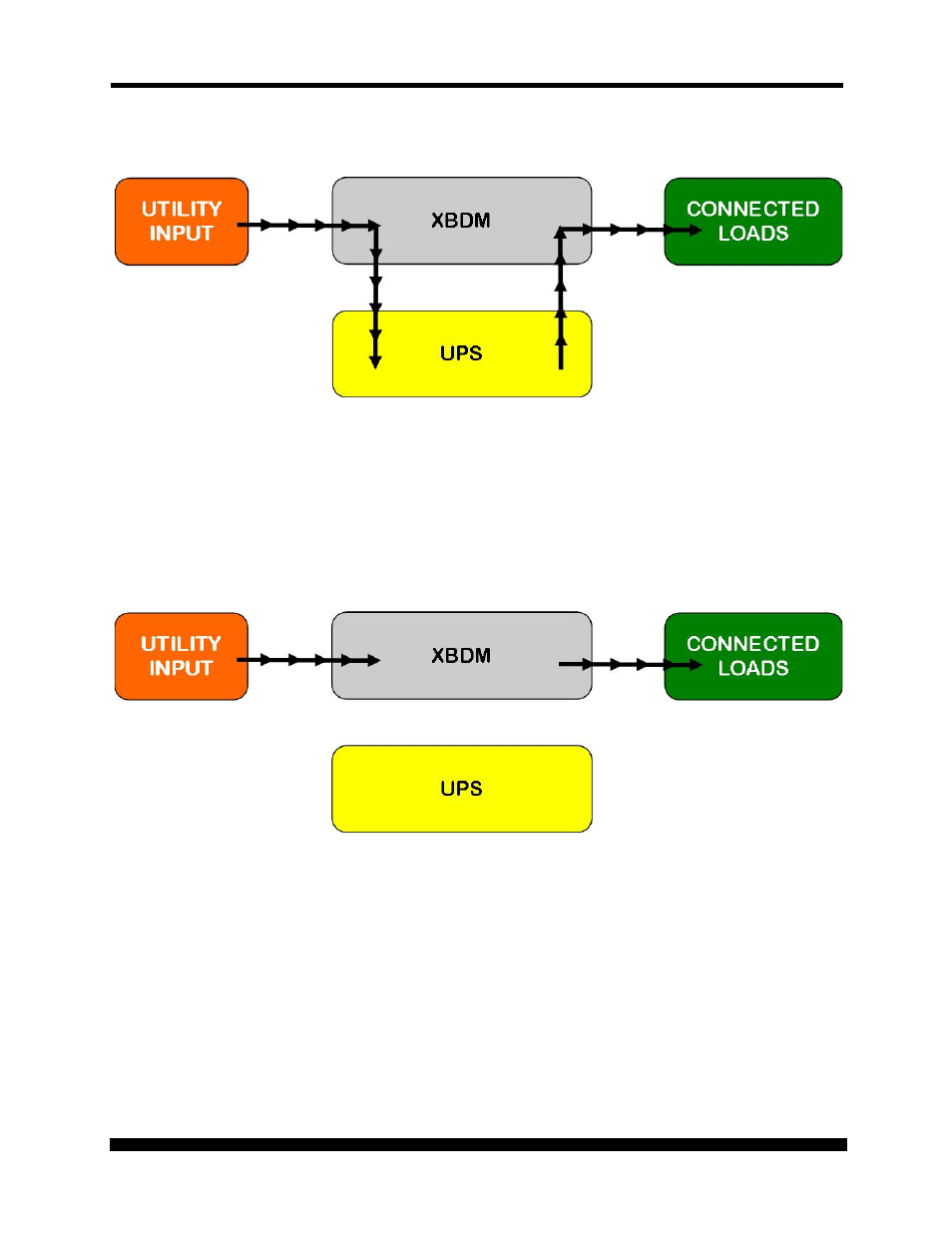

Figure 1 – Block Diagram with UPS
As shown in fig. 2 block diagram:
• Under maintenance operation, the UTILITY INPUT flows through the XBDM to the CONNECTED
LOADS – the UPS is not in the circuit.
Figure 2 – Block Diagram without UPS
