Page 13
XBDM USER’S MANUAL
BYPASS DISTRIBUTION MODULE
Xtreme Power Conversion Corporation (Rev 8/29/13)
Page 13
8. Plug the XBDM into a properly wired utility outlet.

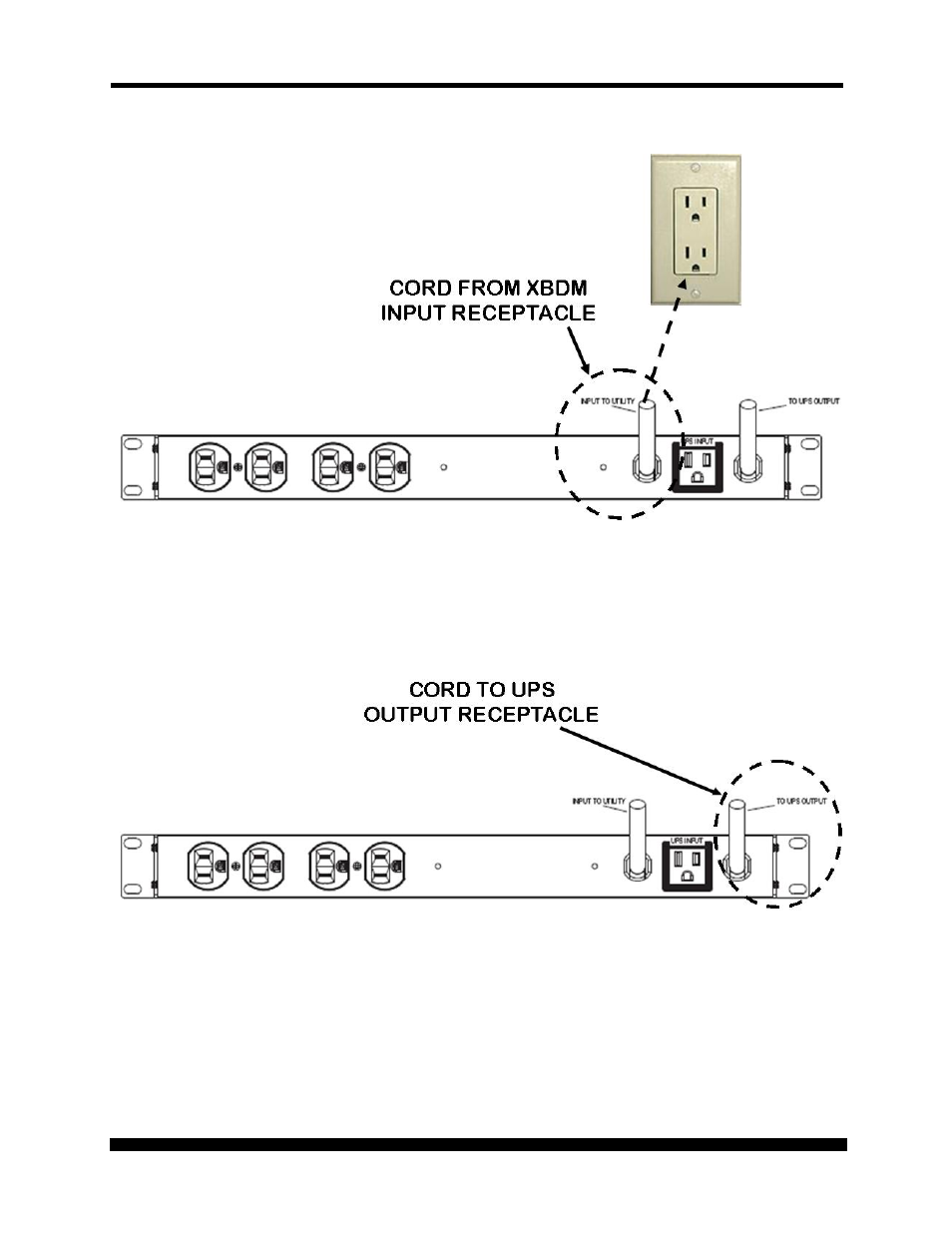

Figure 16 – XBDM to AC Input Receptacle
The orange bypass available light should illuminate on the Bypass Distribution Module.
9. Plug the UPS OUTPUT cord from the XBDM into an OUTPUT RECEPTACLE on the UPS.
Figure 17 – XBDM Cord to UPS Output Receptacle
