Appendix B
P
in Assignments

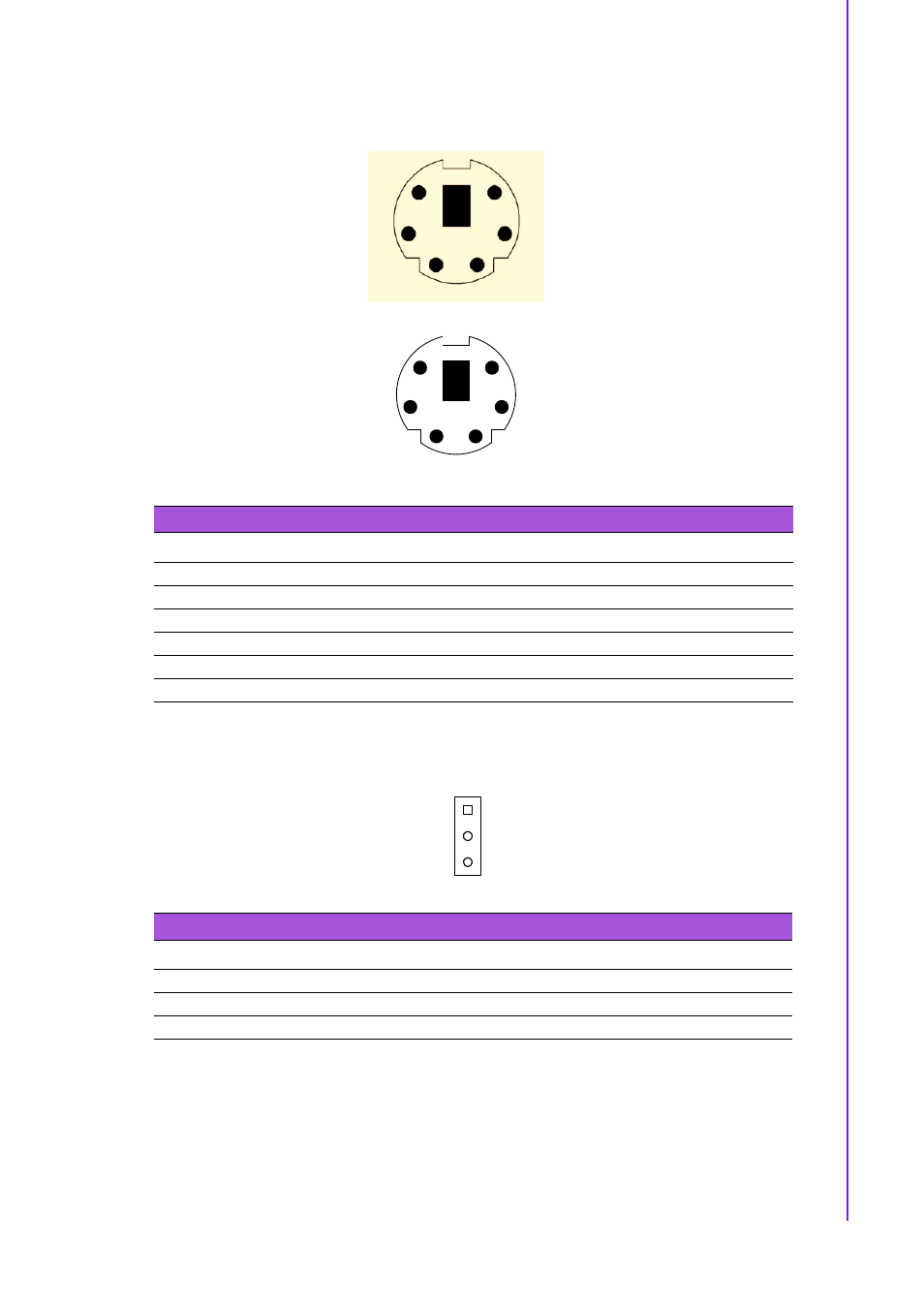

B.6
PS/2 Keyboard/ Mouse Connector (KBMS1)
B.7
CPU Fan Power Connector (CPUFAN1)
Table B.6: PS/2 Keyboard/ Mouse Connector (KBMS1)
Pin
Signal
Pin
Signal
1
KB DATA
2
NC
7
MS DATA
6
NC
3
GND
8
NC
4
VCC
9
GND
5
KB CLOCK
10
VCC
11
MS CLOCK
12
NC
12
11
10
9
8
7
5
3
1
2
4
6
Table B.7: CPU Fan Power Connector (CPUFAN1)
Pin
Signal
1
GND
2
+12 V
3
DEC
1
2
3
