AIMB-258 User Manual
72

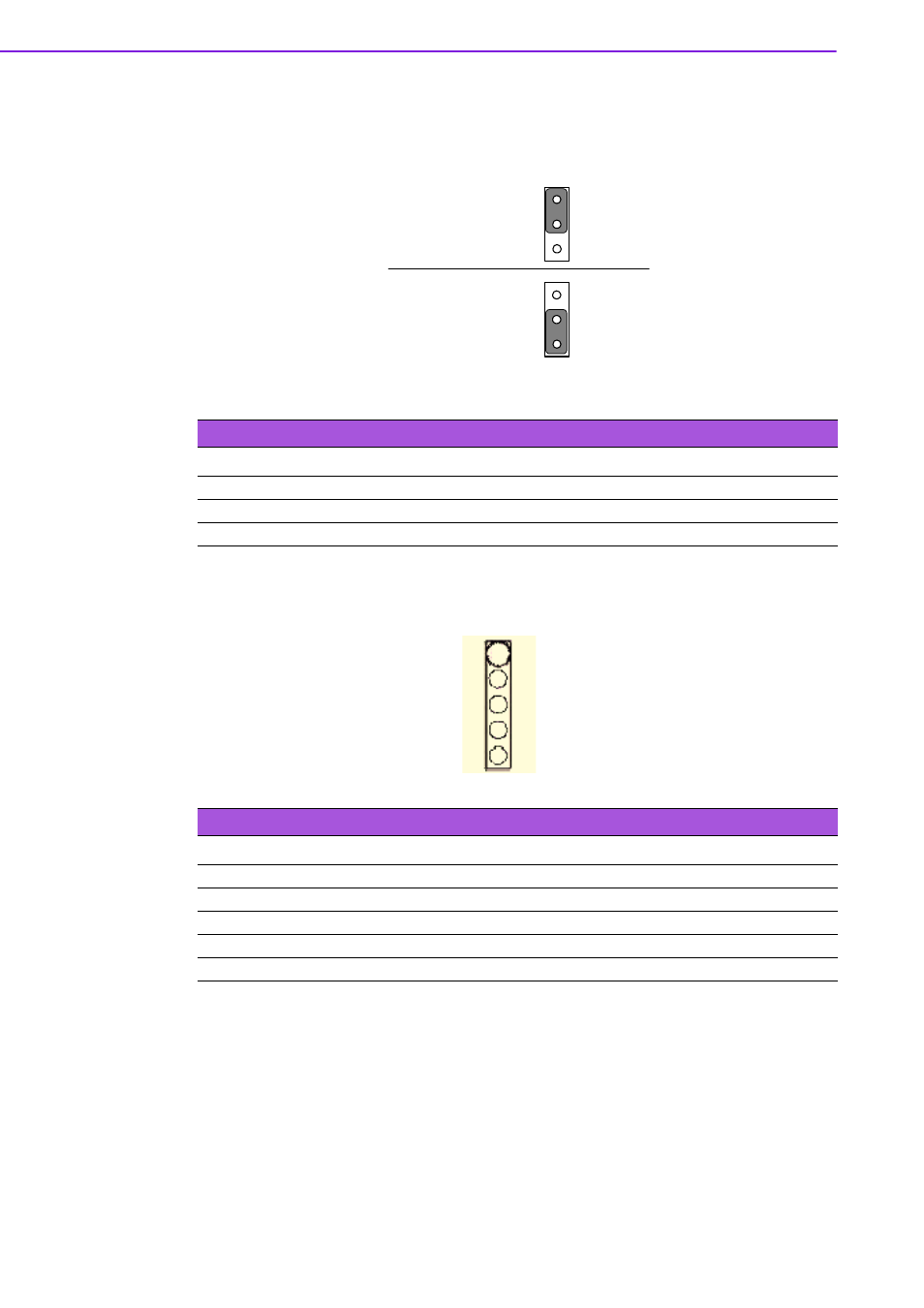

B.14
LVDS Power Jumper (J1)
*default setting
B.15
LVDS Invert (VP1)
Table B.14: LVDS Power Jumper (J1)
Pin
Signal
1
VCC3
2
VDD_LCD
3
VCC
3
1
2
3
1
2
*3.3V
5V
Voltage
Jumper Setting
Table B.15: LVDS Invert (VP1)
Pin
Signal
1
VCC12
2
GND
3
BKLTEN
4
VBR
5
VCC
