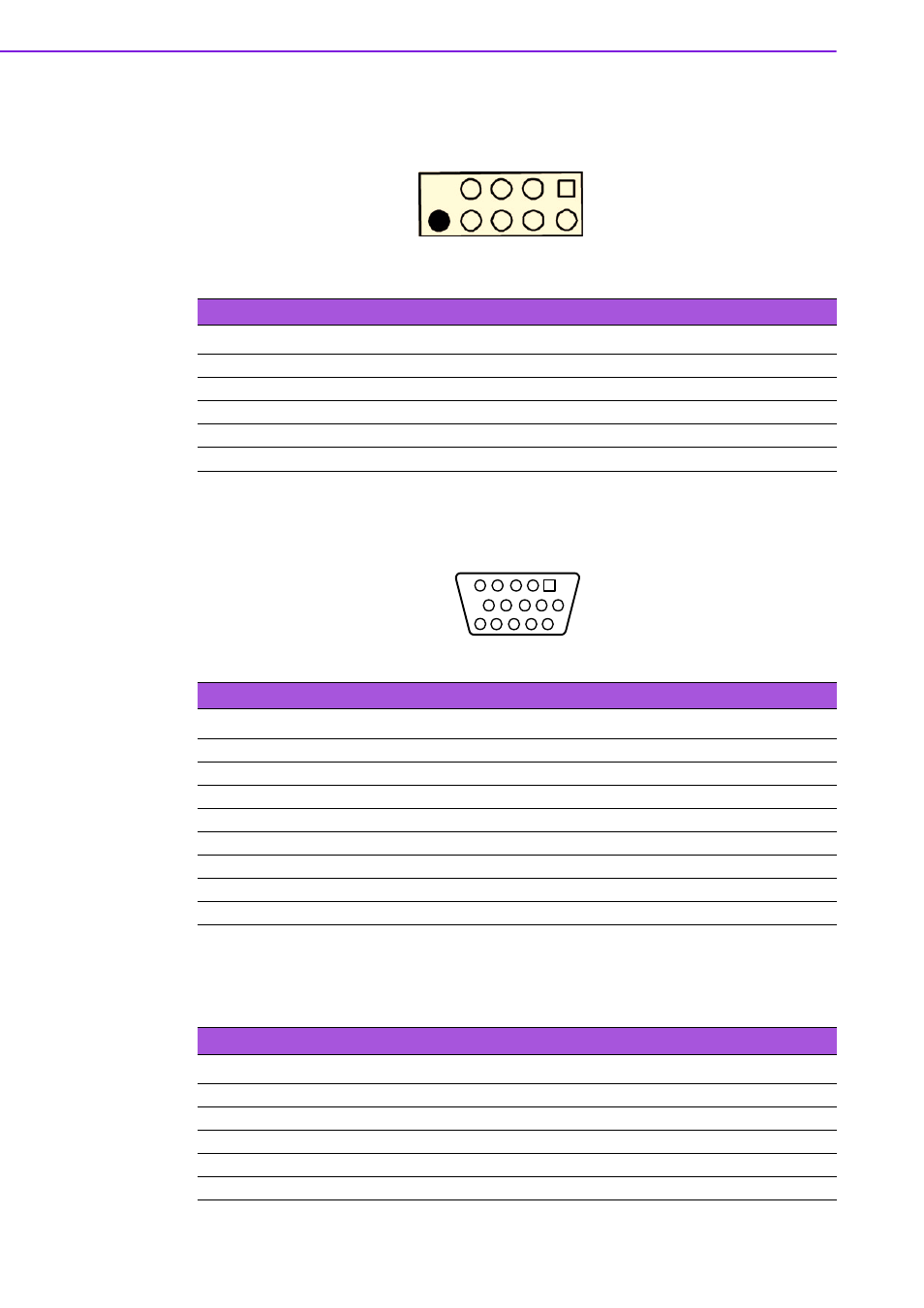

B.1
USB Connector (USB56,USB78)
B.2
VGA Connector (VGA1A)
B.3
DVI Connector (VGA1B)
Table B.1: USB5/USB6 Connector (USB56)
Pin
USB1 Signal
Pin
USB2 Signal
1
+5 V
2
+5 V
3
LP5-
4
LP5+
5
LP5+
6
LP5-
7
GND
8
GND
9
NC
10
GND
7 5 3 1
10 8 6 4 2
Table B.2: VGA Connector (VGA1A)
Pin
Signal
Pin
Signal
1
RED
9
VCC
2
GREEN
10
GND
3
BLUE
11
N/C
4
N/C
12
SDAT
5
GND
13
H-SYNC
6
GND
14
V-SYNC
7
GND
15
SCLK
8
GND
5
15
1
11
10
6
Table B.3: DVI Connector (VGA1B)
Pin
Signal
Pin
Signal
1
RED
11
NC
2
GREEN
12
VGADATA
3
BLUE
13
VHSYNC
4
N/C
14
VVSYNC
5
GND
15
VGACLK
