AIMB-258 User Manual 42

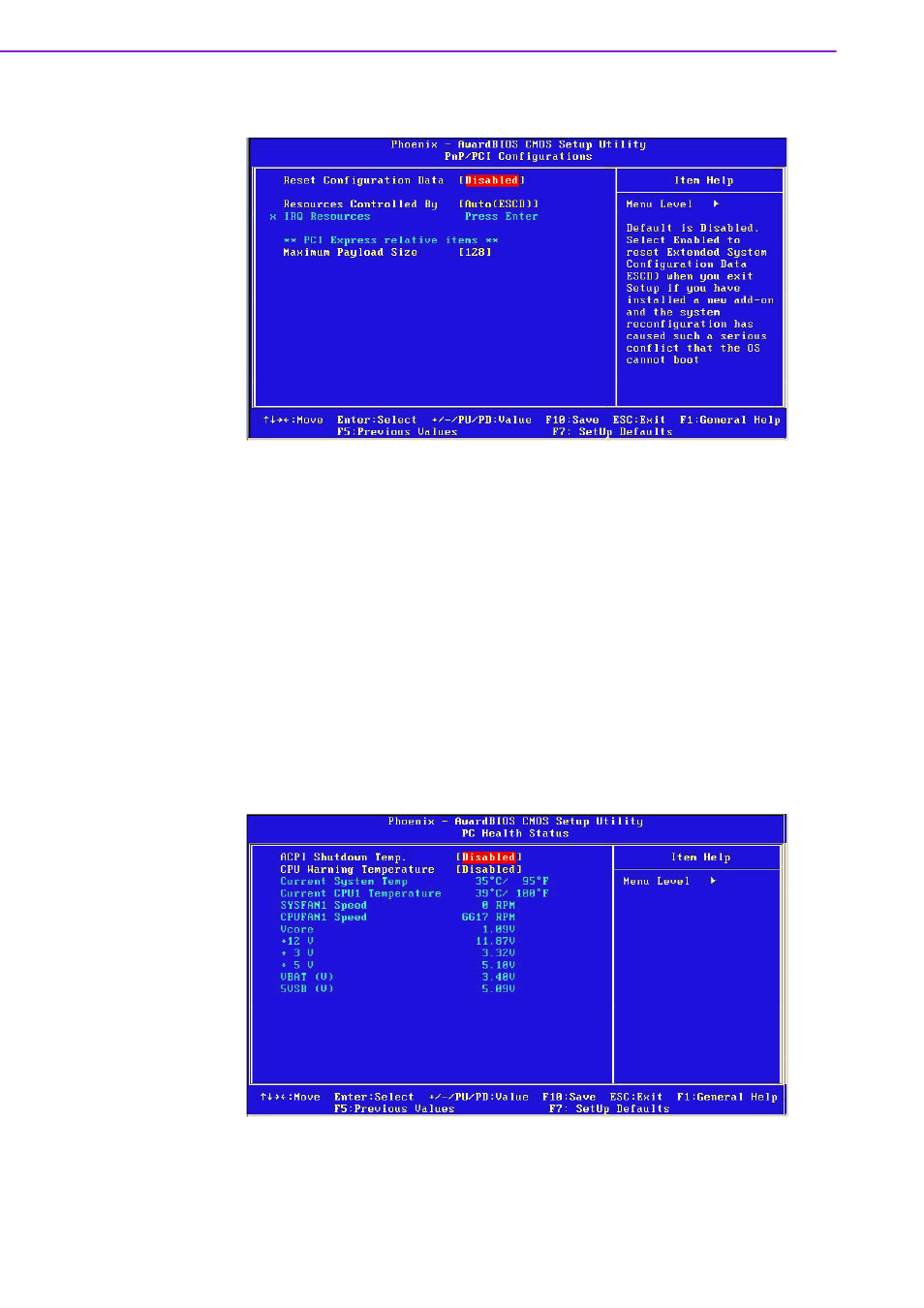

2.2.8 PnP/PCI Configurations
! Reset Configuration Data [Disabled]
The default is Disabled. Select Enabled to reset Extended System Configuration
Data (ESCD) if you have installed a new add-on card, and system configuration
is in such a state that the OS cannot boot, enable this.
! Resources Controlled By [Auto(ESCD)]
The commands here are “Auto(ESCD)” or “Manual”. Choosing “Manual”
requires you to choose resources from the following sub-menu. ”Auto(ESCD)”
automatically configures all of the boot and Plug and Play devices, but you must
be using Windows 95 or above.
! Maximum Payload Size [128]
This allows you to set the maximum TLP payload size for PCI Express devices.
2.2.9 PC Health Status
! ACPI Shutdown Temperature [Disabled]
The system will shut down automatically if the CPU temperature goes over the
selected setting.
