25 AIMB-258 User Manual
Chapter 1
P
roduct
Introduction

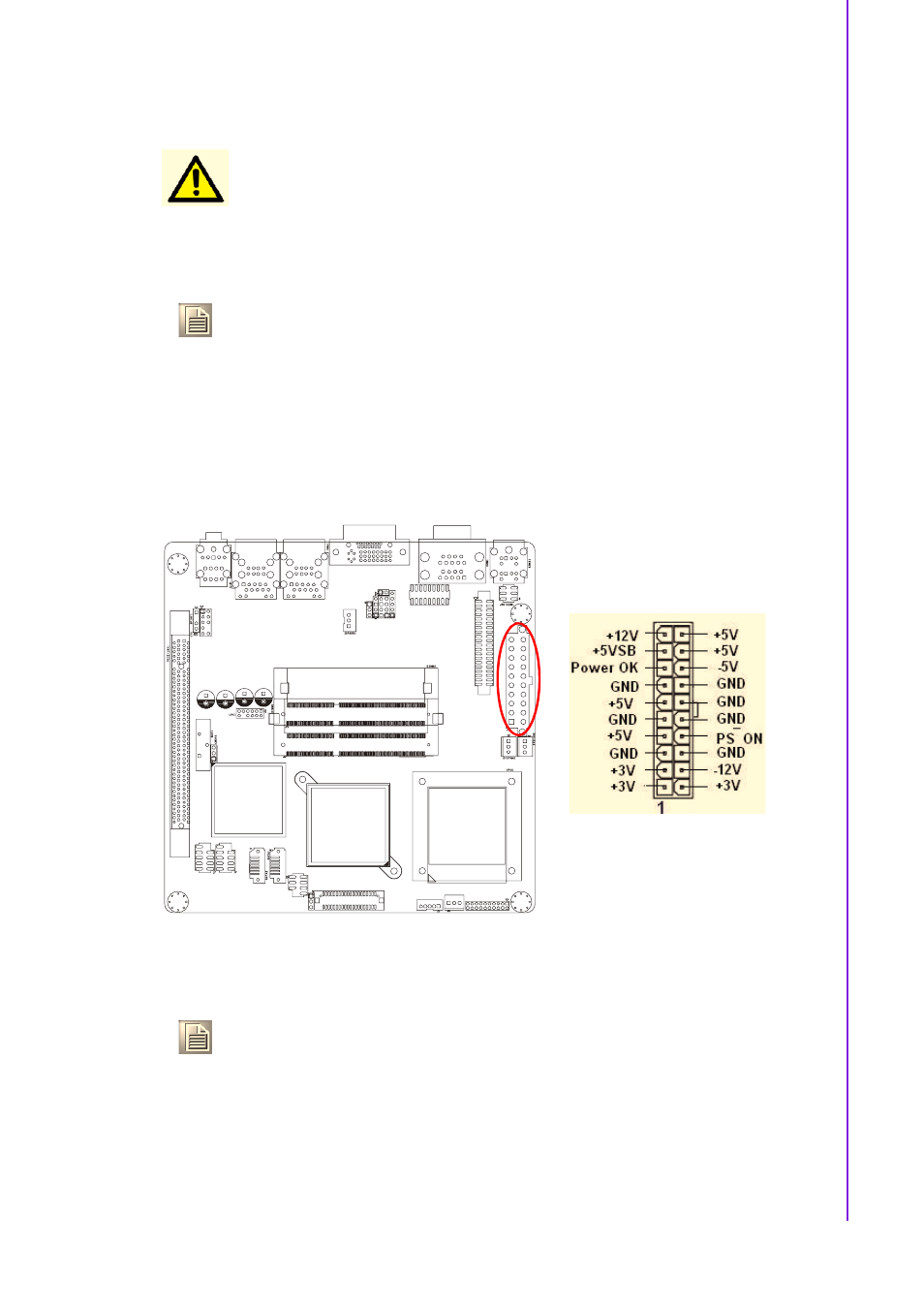

1.14.13 ATX Power Connector (ATX1)
This connector is for an ATX Micro-Fit power supply. The plugs from the power sup-
ply are designed to fit these connectors in only one orientation. Find the proper orien-
tation and push down firmly until the connectors completely fit.
Important notes on the Motherboard Power Requirements
Caution! Never connect a 1394 cable to the USB connectors. Doing so will dam-
age the motherboard!
Note! The USB module is purchased separately.
Note! ! Make sure that your ATX 12 V power supply can provide 6 A on the
+12 V lead and at least 1A on the +5-volt standby lead (+5 VSB).
The minimum recommended wattage is 180 W for a fully config-
ured system. The system can become unstable and might experi-
ence difficulty powering up if the power supply is inadequate.
! You must install a Power Supply with a higher power rating if you
intend to install additional devices.
