AIMB-258 User Manual

1.14.4

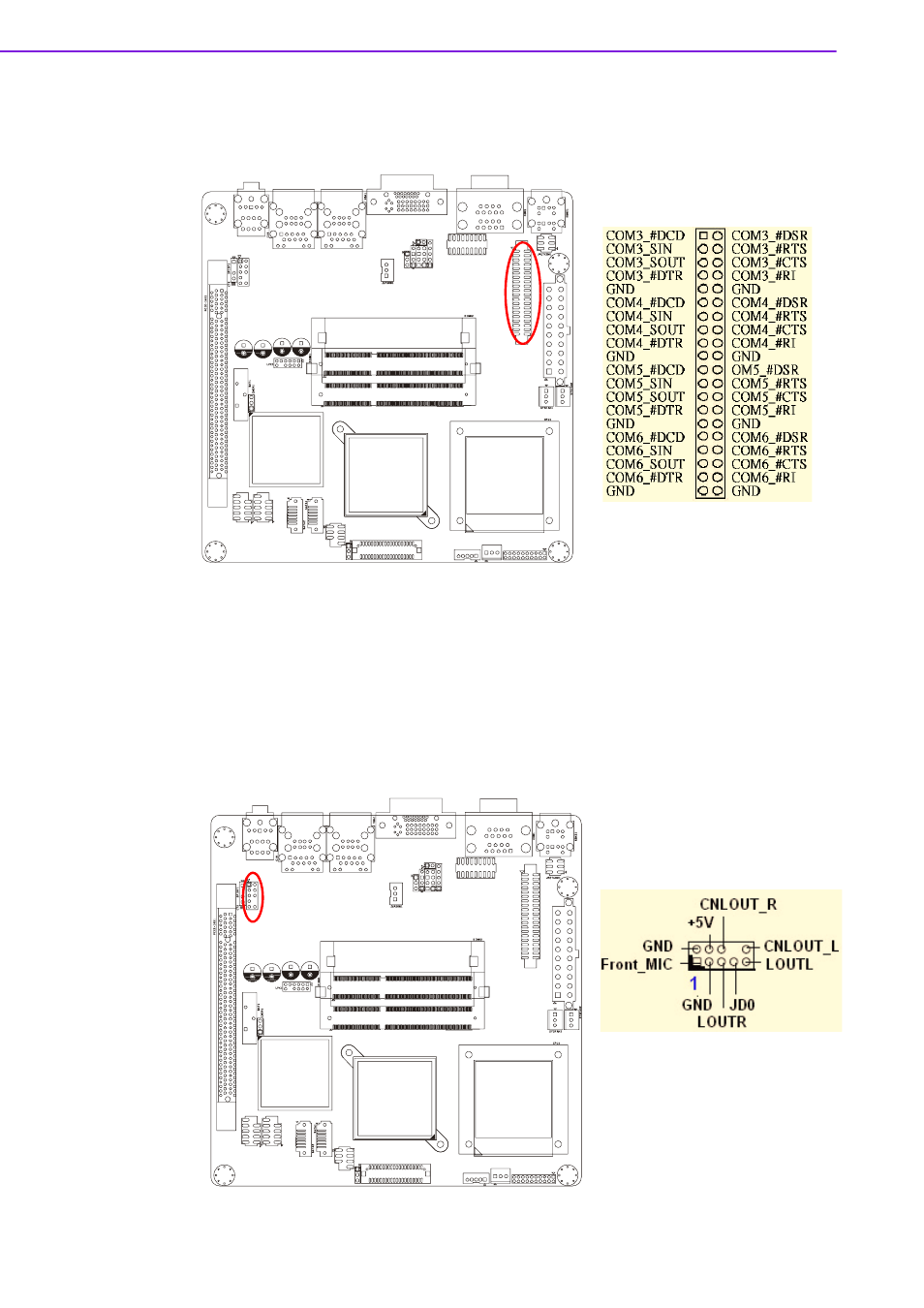

Serial Port Connector 3456 (COM3456)

1.14.5

Front Headphone Connector (HD1)

This connector is for a chassis-mounted front panel audio I/O module that supports
either HD Audio. Connect one end of the front panel audio I/O module cable to this
connector.
